AC5STS1V420B015C21

Recently Viewed(1)
  • Finish Thompson AC5STS1V420B015C21 AC5 Pump Series

Image shown may not be actual product

Finish Thompson FTI

AC5STS1V420B015C21

0 reviews

Finish Thompson AC5STS1V420B015C21, FTI AC5 Sealed Stainless Steel Centrifugal Pump, 1-1/2 x 1-1/4 NPT, 115-230 Volt, 3450 RPM, FKM O-Ring, 1 Phase, 1 1/2 HP, 4.25" Impeller

$1,293.60

Item: AC5STS1V420B015C21
  • Overview
  • Series Info
  • Reviews
  • Literature/Manuals
  • Repair Parts

AC5STS1V420B015C21

Finish Thompson AC5STS1V420B015C21, FTI AC5 Sealed Stainless Steel Centrifugal Pump, 1-1/2 x 1-1/4 NPT, 115-230 Volt, 3450 RPM, FKM O-Ring, 1 Phase, 1 1/2 HP, 4.25" Impeller

Base Model NumberAC5
BushingCarbon
Connections / Discharge (Inches)1-1/2 x 1-1/4 NPT
Heads To (Feet)88
HP1 1/2
Hz60
Impeller CodeStandard
Impeller Size (Inches)4.25" (4 1/4")
Material316 Stainless Steel
Maximum Flow (GPM)145
Maximum Operating Temperature300°F (149°C)
Maximum Pressure (PSI)100 psi (6.9 Bar)
Motor1-1/2hp/3450/1ph/60Hz/T/56C/115-230V
Motor Frame Size56C
Phase1
Pressure Rating BAR6.9 bar
Shaft Seal MaterialC/R/V
Spec. Gravityup to 1.8
Speed (RPM)3450
Valve/Seat/O-RingFKM
Voltage115/230

AC Sealed Metallic Centrifugal Pumps Information

Features & Benefits
AC Series Typical Applications
• Chemical processing
• Plating, photo processing
• Printed circuit boards
• Pharmaceutical
• Waste water treatment

AC Sealed Metallic Centrifugal Pump Features:
• Corrosion resistant 316 stainless steel
• Close coupled
• Back pull out design for easy service
• Compact design with secure V-clamp (304 stainless steel)
• Standard, recessed, or high head impellers
• Bellows Type 21 seals (AC models only)
• ATEX certified (AC models with ATEX motors only)
• FDA compliant (AC models with Buna elastomer only)
• 1.8 specific gravity with no impeller trim
• Maximum temperature: 300°F (149°C)
• Maximum working pressure: 100 psi (6.9 bar)
General Description
Finish Thompson FTI AC Series are rugged, metallic centrifugal pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

Categories

0 Reviews

  • ☆
  • ☆
  • ☆
  • ☆
  • ☆

Add a Review

You need to sign in to add a review.

TypeTitleLink

AC, AV, AK Series Pumps Brochure (2022)

View

Chemical Processing Applications Flyer (2022)

View

AC, AV, AK 4 & 5 Series Pumps Datasheet (2022)

View

AP Series Series Pumps Performance Curves (2022)

View

AC4 AC5 Series Pumps Installation & Operation Manual (2022)

View

Repair Parts for AC5STS1V420B015C21

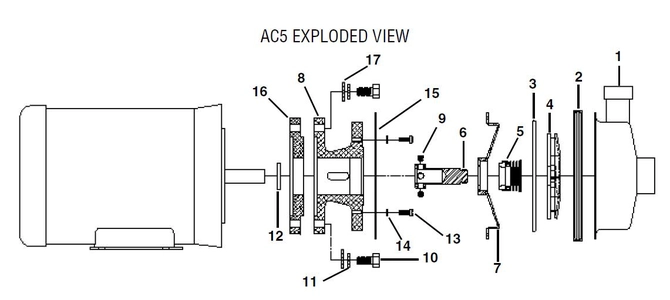

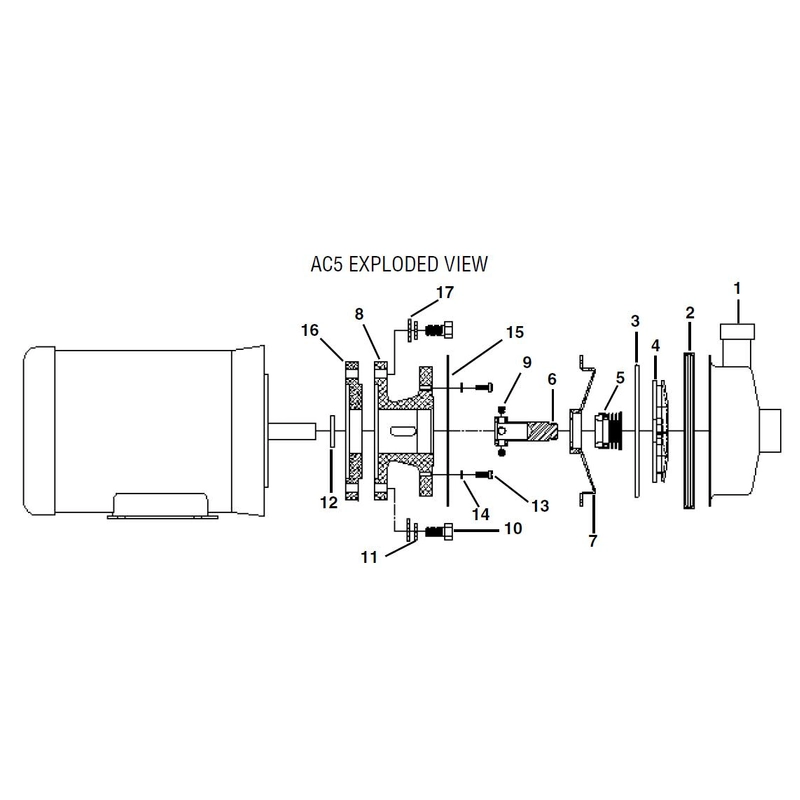

  • Finish-Thompson-AC5-Exploded-Pump-Parts.JPG

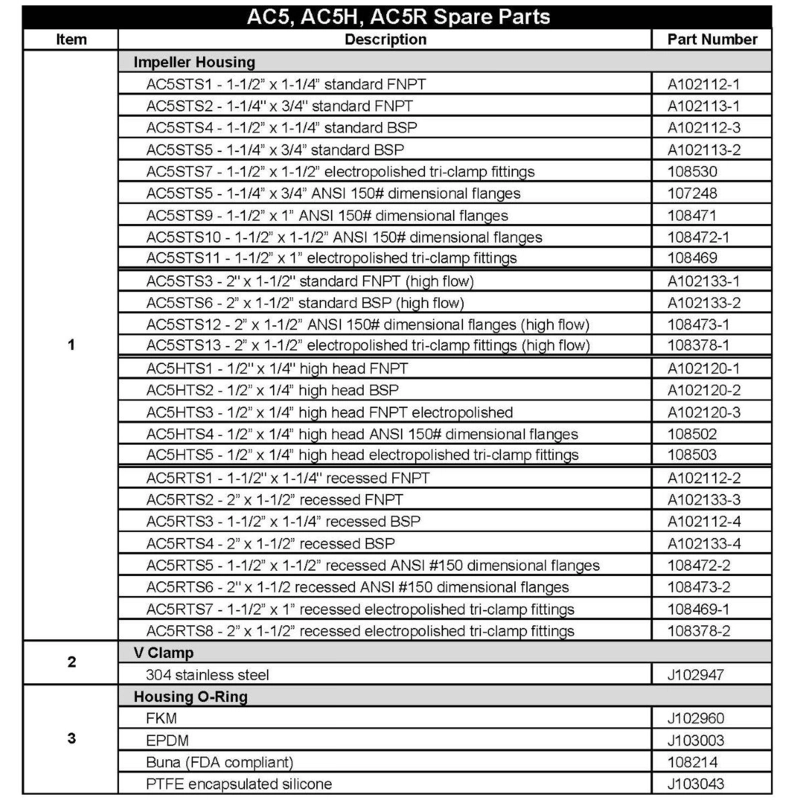

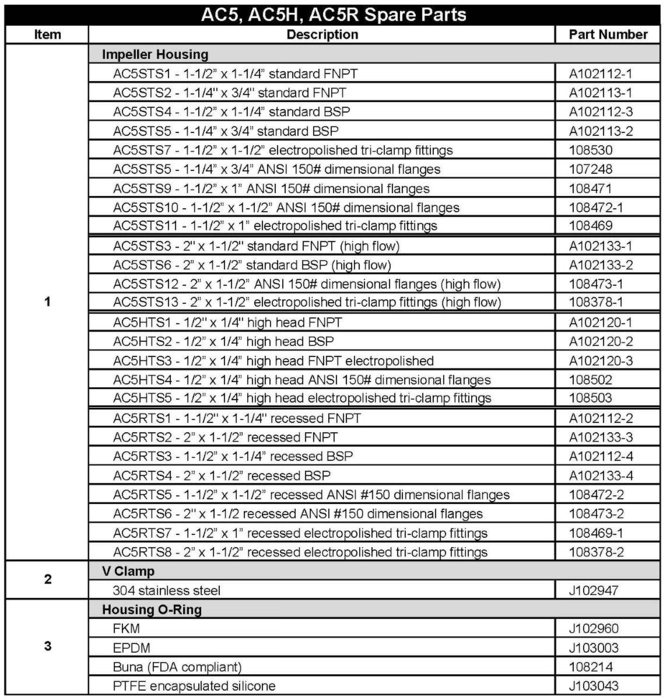

  • Finish-Thompson-AC5-Pump-Parts-1.jpg

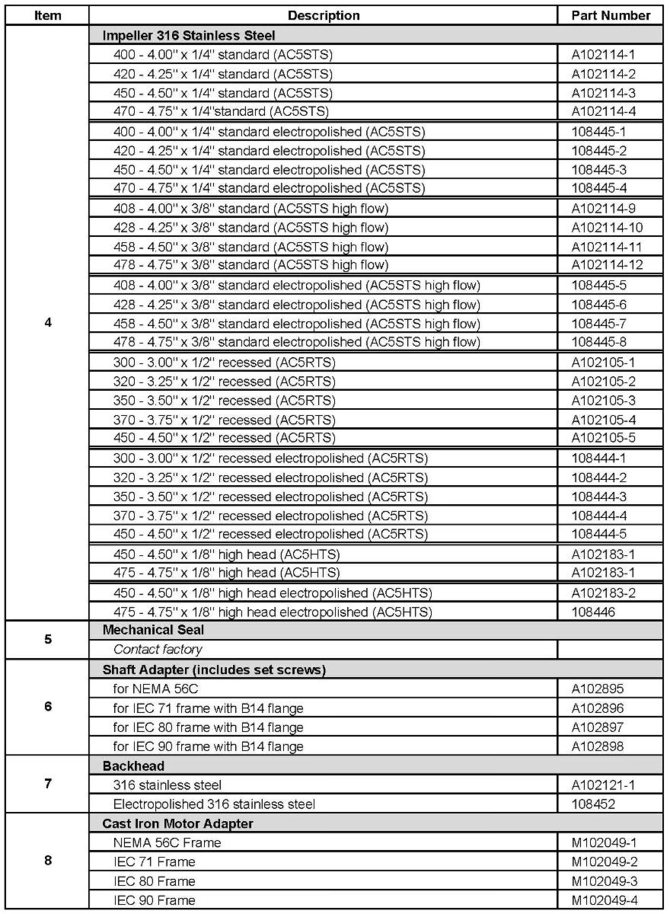

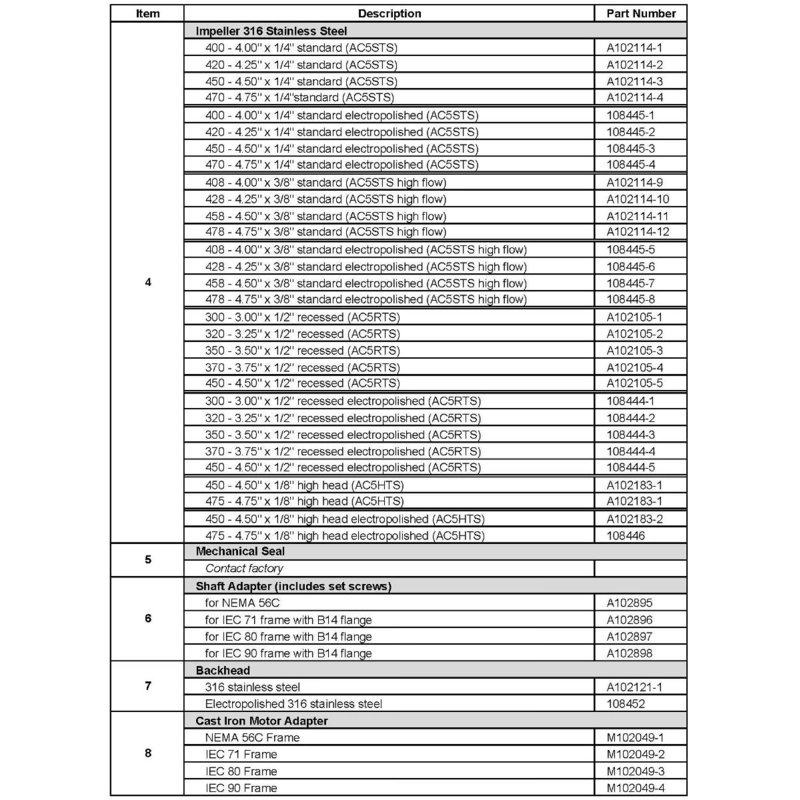

  • Finish-Thompson-AC5-Pump-Parts-2.jpg

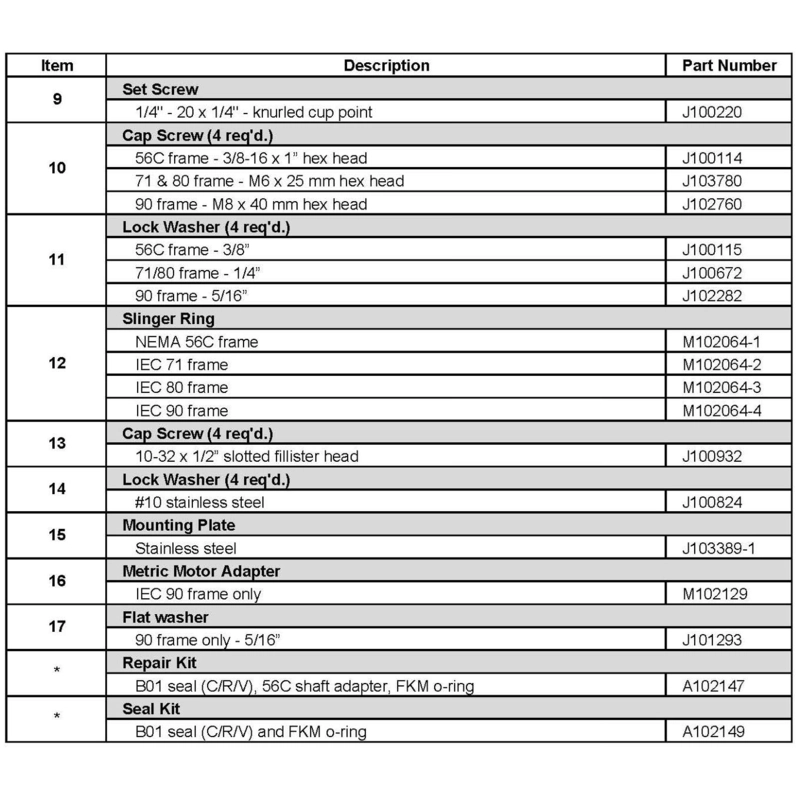

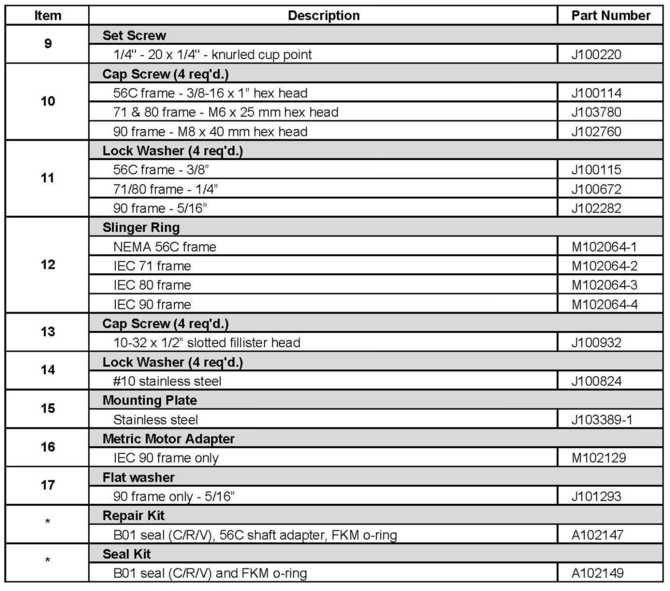

  • Finish-Thompson-AC5-Pump-Parts-3.jpg
Productqty.shippingprice
A102112-1

A102112-1

 Ships in $411.35
J102947

J102947

 Ships in 1 Week $81.70
J102960

J102960

 Ships in 3-5 Days $7.12
A102114-2

A102114-2

 Ships in $339.15
108445-2

108445-2

 Ships in $380.00
A102895

A102895

 Ships in 3-5 Days $242.25
A102121-1

A102121-1

 Ships in $293.55
108452

108452

 Ships in $335.35
M102049-1

M102049-1

 Ships in $328.70
A102147

A102147

 Ships in 2-3 Days $306.85
A102149

A102149

 Ships in $122.55
0 items selected.Add items to cart
