Finish Thompson FTI AC Sealed Metallic Centrifugal Pumps AC5STS10V470B015C

Image shown may not be actual product

Finish Thompson FTI

AC5STS10V470B015C

0 reviews

Finish Thompson Centrifugal Pump End AC5STS10V470B015C, Sealed Stainless Steel FTI AC5, 1-1/2 x 1-1/2 ANSI 150# , FKM O-Ring, 4.75" Impeller

$1,057.60

Best Price Guarantee!
211PumpPoints

Item: AC5STS10V470B015C

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

AC5STS10V470B015C

Finish Thompson Centrifugal Pump End AC5STS10V470B015C, Sealed Stainless Steel FTI AC5, 1-1/2 x 1-1/2 ANSI 150# , FKM O-Ring, 4.75" Impeller

Base Model Number	AC5
Bushing	Carbon
Connections / Discharge (Inches)	1-1/2 x 1-1/2 ANSI 150#
Heads To (Feet)	88
Impeller Code	Standard
Impeller Size (Inches)	4.75" (4 3/4")
Material	316 Stainless Steel
Maximum Flow (GPM)	145

Maximum Operating Temperature	300°F (149°C)
Maximum Pressure (PSI)	100 psi (6.9 Bar)
Motor Frame Size	56C
Pressure Rating BAR	6.9 bar
Shaft Seal Material	C/R/V
Spec. Gravity	up to 1.8
Valve/Seat/O-Ring	FKM

AC Sealed Metallic Centrifugal Pumps Information

Features & Benefits
AC Series Typical Applications • Chemical processing • Plating, photo processing • Printed circuit boards • Pharmaceutical • Waste water treatment AC Sealed Metallic Centrifugal Pump Features: • Corrosion resistant 316 stainless steel • Close coupled • Back pull out design for easy service • Compact design with secure V-clamp (304 stainless steel) • Standard, recessed, or high head impellers • Bellows Type 21 seals (AC models only) • ATEX certified (AC models with ATEX motors only) • FDA compliant (AC models with Buna elastomer only) • 1.8 specific gravity with no impeller trim • Maximum temperature: 300°F (149°C) • Maximum working pressure: 100 psi (6.9 bar)
General Description
Finish Thompson FTI AC Series are rugged, metallic centrifugal pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional.

Categories

Chemical Delivery / Processing
22853 products
Food & Beverage Services
13449 products
Manufacturing
20389 products
Pharmaceutical / Chemical
15972 products
Plating
23448 products
Sewage / Wastewater
20311 products

0 Reviews

☆
☆
☆
☆
☆

Add a Review

You need to sign in to add a review.

Type	Title		Link
	AC, AV, AK Series Pumps Brochure (2022)		View
	Chemical Processing Applications Flyer (2022)		View
	AC, AV, AK 4 & 5 Series Pumps Datasheet (2022)		View
	AP Series Series Pumps Performance Curves (2022)		View
	AC4 AC5 Series Pumps Installation & Operation Manual (2022)		View

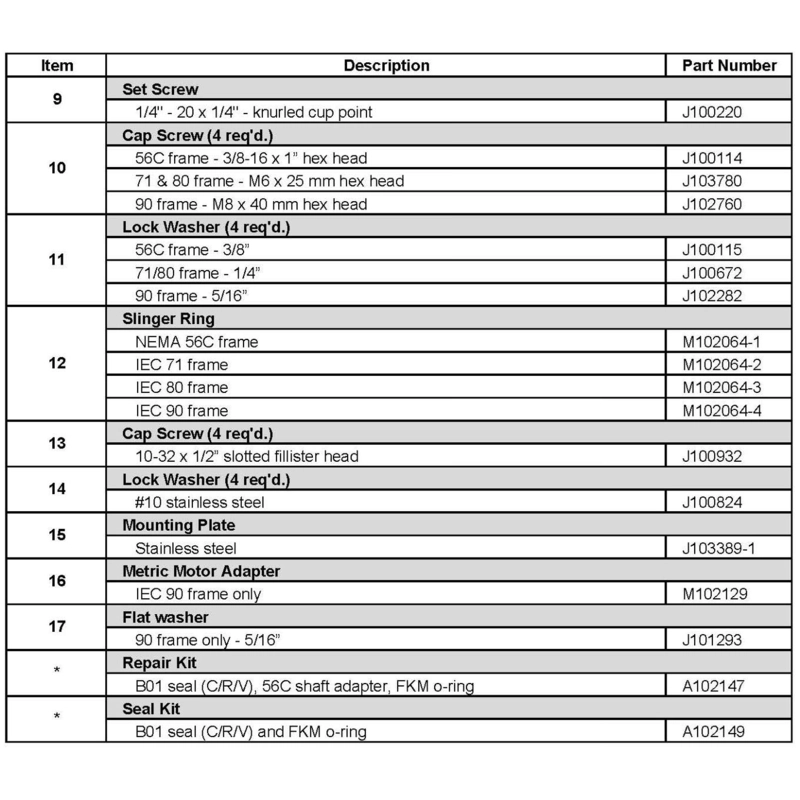

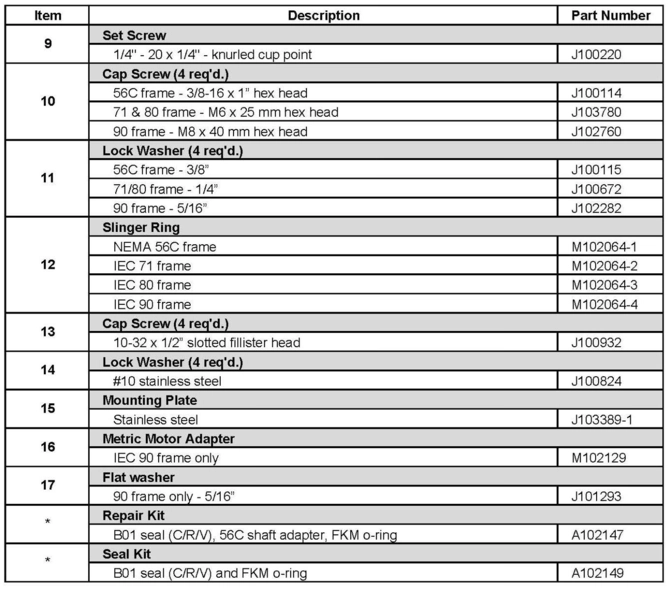

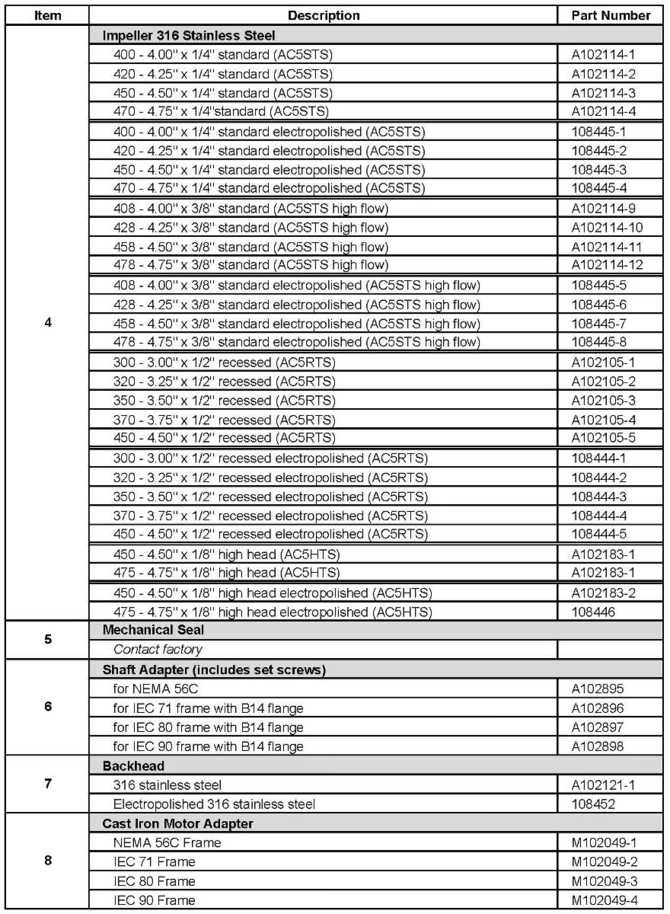

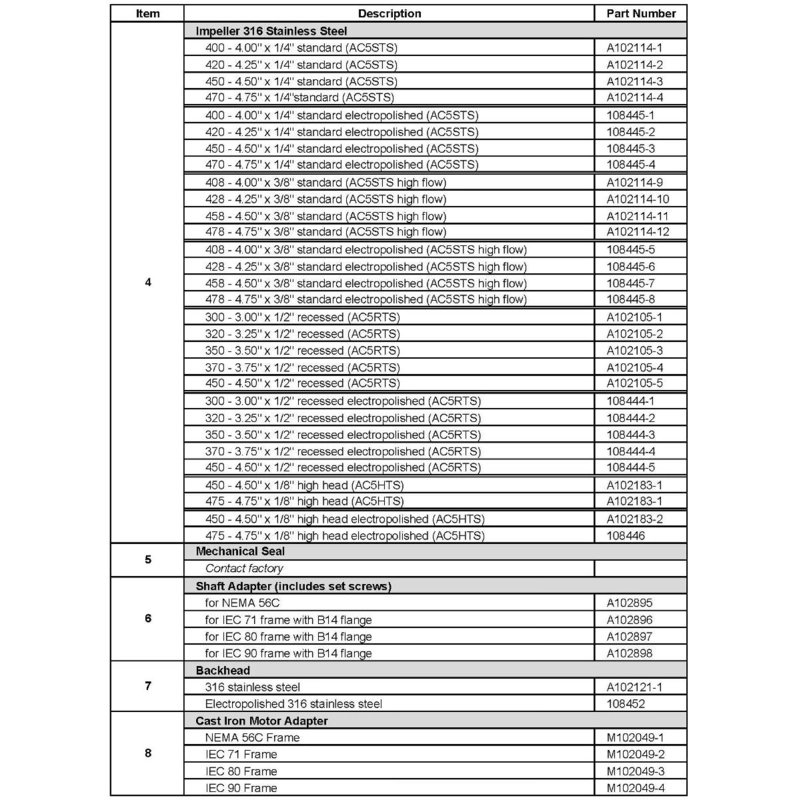

Repair Parts for AC5STS10V470B015C

Product		qty.	shipping	price
	A102112-1		Ships in	$411.35	Select item
	108472-1		Ships in	$840.75	Select item
	108469		Ships in	$805.60	Select item
	J102947		Ships in 1 Week	$81.70	Select item
	J102960		Ships in 3-5 Days	$7.12	Select item
	A102114-4		Ships in	$339.15	Select item
	108445-4		Ships in	$380.00	Select item
	A102895		Ships in 3-5 Days	$242.25	Select item
	A102121-1		Ships in	$293.55	Select item
	108452		Ships in	$335.35	Select item
	M102049-1		Ships in	$328.70	Select item
	A102147		Ships in 2-3 Days	$306.85	Select item
	A102149		Ships in	$122.55	Select item
