Image shown may not be actual product
AC4STS4E300B025C19
Finish Thompson AC4STS4E300B025C19, FTI AC4 Sealed Stainless Steel Centrifugal Pump, 1 x 1 Flange, 230-460 Volt, 3450 RPM, EPDM O-Ring, 3 Phase, 4 HP, 3.00" Impeller
$2,164.00
- Best Price Guarantee!
- 432PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
AC4STS4E300B025C19
Finish Thompson AC4STS4E300B025C19, FTI AC4 Sealed Stainless Steel Centrifugal Pump, 1 x 1 Flange, 230-460 Volt, 3450 RPM, EPDM O-Ring, 3 Phase, 4 HP, 3.00" Impeller
| Base Model Number | AC4 |
| Connections / Discharge (Inches) | 1 x 1 Flange |
| Heads To (Feet) | 59 |
| HP | 4 |
| Hz | 50/60 |
| Impeller Code | Standard |
| Impeller Size (Inches) | 3" |
| Material | 316 Stainless Steel |
| Maximum Flow (GPM) | 39 |
| Maximum Operating Temperature | 300°F (149°C) |
| Maximum Pressure (PSI) | 100 psi (6.9 Bar) |
| Motor | 3/4hp/3450/3ph/50-60Hz/E/56C/230-460V |
| Motor Frame Size | 56C |
| Phase | 3 |
| Pressure Rating BAR | 6.9 bar |
| Shaft Seal Material | C/R/E |
| Spec. Gravity | up to 1.8 |
| Speed (RPM) | 3450 |
| Valve/Seat/O-Ring | EPDM |
| Voltage | 230/460 |
AC Sealed Metallic Centrifugal Pumps Information
| Features & Benefits |
|---|
| AC Series Typical Applications • Chemical processing • Plating, photo processing • Printed circuit boards • Pharmaceutical • Waste water treatment AC Sealed Metallic Centrifugal Pump Features: • Corrosion resistant 316 stainless steel • Close coupled • Back pull out design for easy service • Compact design with secure V-clamp (304 stainless steel) • Standard, recessed, or high head impellers • Bellows Type 21 seals (AC models only) • ATEX certified (AC models with ATEX motors only) • FDA compliant (AC models with Buna elastomer only) • 1.8 specific gravity with no impeller trim • Maximum temperature: 300°F (149°C) • Maximum working pressure: 100 psi (6.9 bar) |
| General Description |
| Finish Thompson FTI AC Series are rugged, metallic centrifugal pumps are compact in design, easy to operate and handle, and economically priced. Built from high quality 316 stainless steel, these pumps are available in horizontal, vertical, or vertical cantilevered designs. All wetted parts are constructed of corrosion resistant materials to withstand the harshest chemical environments. The AP Series accept standard NEMA and IEC frame motors and feature standard NPT or BSP threaded ports with tri-clamp or flanges optional. |
Categories
Chemical Delivery / Processing
23876 productsFood & Beverage Services
13449 products
Manufacturing
20389 productsPharmaceutical / Chemical
15972 productsPlating
24408 productsSewage / Wastewater
20311 products

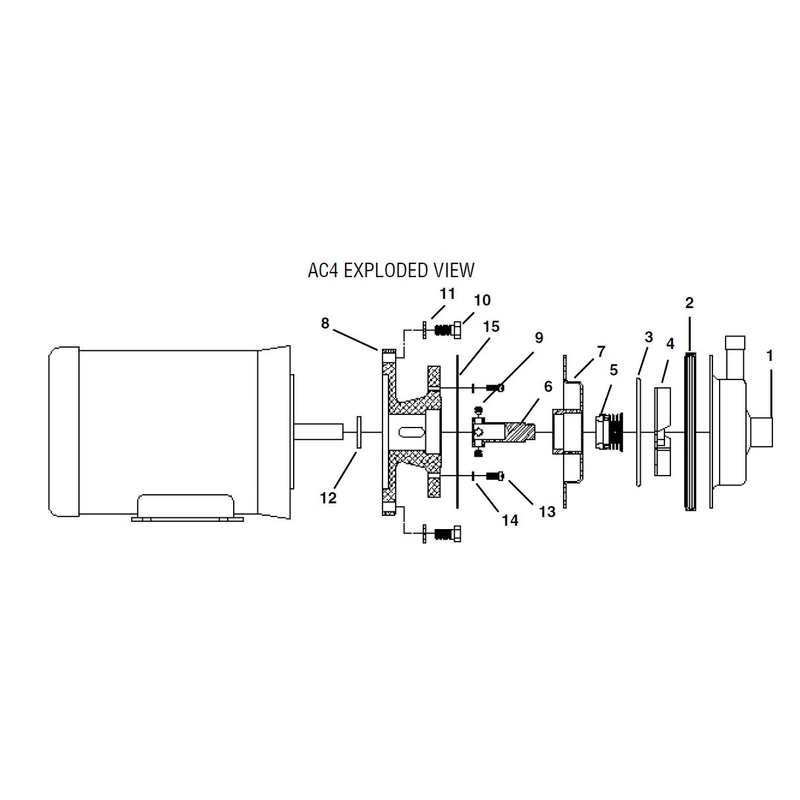

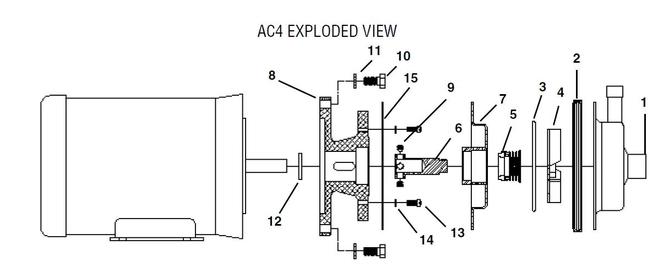

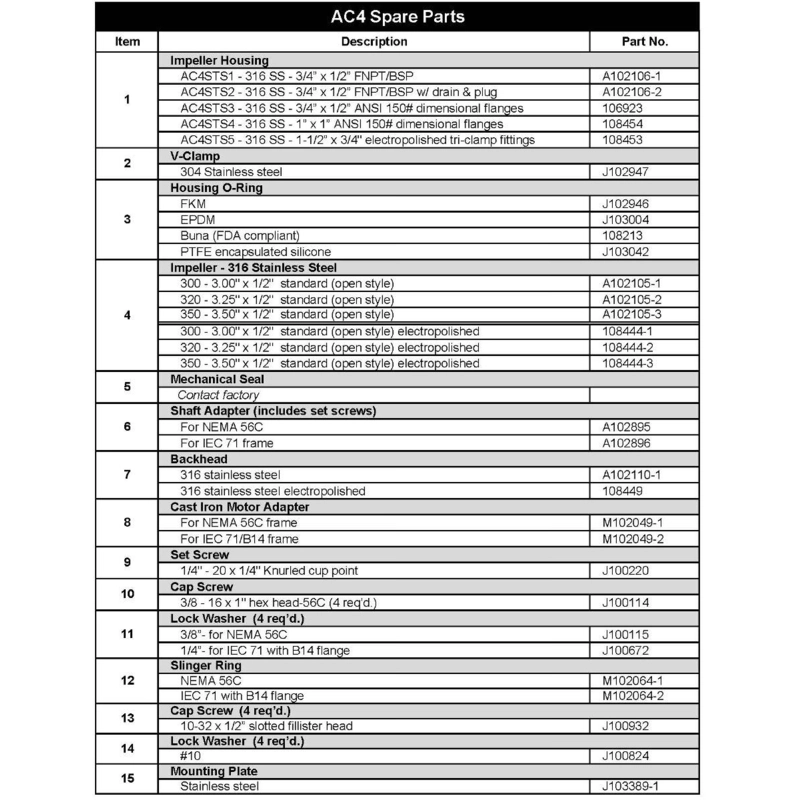

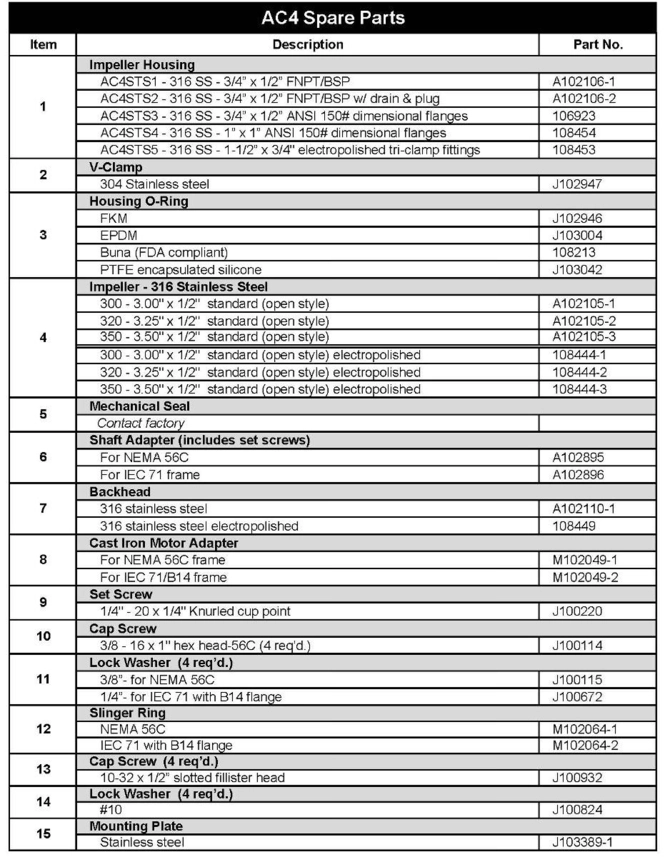

Repair Parts for AC4STS4E300B025C19
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | A102106-1 | Ships in | $327.75 | ||
 | J102947 | Ships in 1 Week | $89.30 | ||
| J103004 | Ships in | $4.51 | ||
 | A102105-1 | Ships in | $165.30 | ||
| 108444-1 | Ships in | $209.95 | ||
 | A102895 | Ships in 3-5 Days | $261.25 | ||
 | A102110-1 | Ships in | $231.80 | ||
| 108449 | Ships in | $277.40 | ||
 | M102049-1 | Ships in | $355.30 | ||
| J100220 | Ships in | $0.46 | ||
| J100114 | Ships in | $0.65 | ||
| J100115 | Ships in | $0.18 | ||
| M102064-1 | Ships in | $2.04 | ||
| J100932 | Ships in | $0.16 | ||
| J100824 | Ships in | $0.08 | ||
| J103389-1 | Ships in | $80.75 | ||
