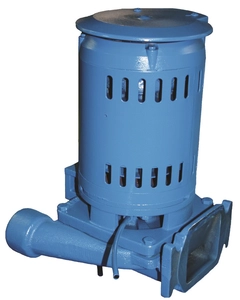

Burks 320GV6-36D Condensate Return GV6 Series Pump, Bronze Fitted, 2HP, 230/460 Volts, Three Phase, 3500 RPM, ODP - Open Drip Proof Motor Enclosure, Bronze Impeller, Carbon / Ceramic / SS Buna-N Seal with a Maximum Temperature of 225°F (107°C). Manufactured by Crane.

$26,304.00

Best Price Guarantee!
5260PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 320GV6-36D

Overview
Series Info
Reviews
Literature/Manuals

320GV6-36D

Adapter Material	Cast Iron
Boiler Feed	Duplex
Capacities (GPM)	80
Casing Material	Cast Iron
Casing Wear Ring Material	Bronze
Casing Working Pressure	200
Heads To (Feet)	130
HP	2
Hz	60
Impeller Material	Bronze
Inlet Pressure (PSI)	100

Material	Bronze Fitted
Motor Enclosure Type	ODP - Open Drip Proof
Motor Frame Size	56J
Motor Shaft Material	303 Stainless Steel
Phase	3 Ph (Three Phase)
Receiver Size (Gallons)	36
Shaft Seal Material	Carbon / Ceramic / SS Buna-N
Speed (RPM)	3500
Voltage	230/460

GV Systems & GV6 Pump Series Information

General Description
Burks GV6 Series - Centrifugal Pumps, Flange Mounted
Materials of Construction
Adapter - All Iron: Cast Iron, Bronze Fitted: Cast Iron Casing - All Iron: Cast Iron, Bronze Fitted: Cast Iron Shaft - #303 Stainless Impeller - All Iron: Cast Iron, Bronze Fitted: Bronze Wear Ring: All Iron: Steel, Bronze Fitted: Bronze Shaft Seal: Carbon Ceramic SS Buna-N
Motors
Standard pump motors have open drip proof construction and are rated with jet pump service factors for continuous duty operation. Open Drip Proof motors are 56 frame size with NEMA standard mounting flange, one piece threaded stainless steel shaft and ball/ball bearing construction.
Casing Wear Ring
Replaceable bronze casing wear ring
Easy To Service
Back pull-out design allows servicing without disturbing piping. Pump casing stays in place.
Factory Tested
EVERY pump is factory tested
Motor Information
60 Hz - 3500 RPM - ODP 50 Hz - 2900 RPM - ODP Single Phase: Thru 2 HP - 115/230 Volt 3 HP is 230 Volt Only Three Phase: 230/460 Volt
Overload Protection
All single phase ODP and Totally Enclosed motors have built-in overload protection. All three phase motors and all explosion proof motors must be installed with a magnetic starter which provides full 3-leg protection. Failure to use correct starter and overloads will void motor warranty.
Enclosed Bronze Impeller
Enclosed bronze impeller threaded onto stainless steel motor shaft.
Impeller Information
Impeller balanced for smooth, quiet operation.
