3304C9A-1-1/2

0 reviews

Burks 3304C9A-1-1/2 Centrifugal Pump, Close Coupled, 60 Hz, Three Phase, 1750 RPM, 3 Horsepower, ODP Motor Enclosure, Frame Size 182JM, 159 lbs.

$3,852.75

Best Price Guarantee!
770PumpPoints

Item: 3304C9A-1-1/2

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

3304C9A-1-1/2

Burks 3304C9A-1-1/2 Centrifugal Pump, Close Coupled, 60 Hz, Three Phase, 1750 RPM, 3 Horsepower, ODP Motor Enclosure, Frame Size 182JM, 159 lbs.

Adapter Material	Cast Iron
Capacities (GPM)	960
Casing Material	Cast Iron
Casing Working Pressure	200
Heads To (Feet)	380
HP	3
Hz	60
Impeller Material	Bronze
Inlet Pressure (PSI)	100
Material	Bronze Fitted

Maximum Operating Temperature	225°F (107°C) - Standard Buna-N Seal
Motor Enclosure Type	ODP - Open Drip Proof
Motor Frame Size	182JM
Motor Shaft Material	Steel
Phase	3 Ph (Three Phase)
Shaft Seal Material	Carbon / Ceramic / SS Buna-N
Speed (RPM)	1750
Voltage	230/460

G9A-1-1/2 Series Information

General Description
Burks G9A-1-1/2 Series - Centrifugal Pump, Close Coupled
Materials of Construction
Adapter - Bronze Fitted: Cast Iron, All Bronze: Bronze, All Iron: Cast Iron. Casing - Bronze Fitted: Cast Iron, All Bronze: Bronze, All Iron: Cast Iron. Casing Wear Ring - Bronze Fitted: Bronze, All Bronze: Bronze, All Iron: Steel. Shaft - Steel Shaft Sleeve - Bronze Fitted: Bronze, All Bronze: Bronze, All Iron: #316 S. Steel. Impeller - Bronze Fitted: Bronze, All Bronze: Bronze, All Iron: Cast Iron. Shaft Seal: Carbon Ceramic SS Buna-N
Motors
The standard Type JM motors supplied with these pumps offer the advantages of quiet operation, controlled shaft deflection for longer mechanical seal life and bearings sized to provide good service life. All motors are supplied by manufacturers providing field service facilities.
Casing Wear Ring
Prevents wear on casing and is easy to replace.
Mechanical Shaft Seal Information
Mechanical Shaft Seal is self-adjusting for temperatures up to 225°F (107°C) and pressures to 150 psi (1034kpa). Has ceramic seat and carbon seal faces for long trouble-free service. Special seals are available for higher temperatures and fluids other than water. Tapped opening is provided in the seal chamber for flushing seal faces.
Factory Tested
After careful assembly and inspection, EVERY pump is factory tested and will meet Hydraulic Institute standards.
Enclosed Bronze Impeller
Enclosed bronze impeller is of latest hydraulic design for maximum efficiency. It is balanced for vibration free operation. Precision fit to shaft and double-locked with key and cap screw.
Jacketed Seal Cavity
All models, with the exception of the G7-2-1/2 and all G9 series pumps are available in a Jacketed Seal Cavity design for pumping hot oil, hot water and heat transfer fluids in common use in high temperature heating or cooling applications. This feature greatly extends seal life in high temperature applications. To order, add suffix "MJ" to pump catalog number for temperatures below 400°F (204°C) and add suffix "MJK" to pump catalog number for temperatures over 400°F (204°C). Example: G6-1-1/2MJ.
Radial Split Casing Design
Casing is close grain iron of 30,000 p.s.i. minimum tensile strength. Back pull-out design eliminates the need to disturb piping should the pump ever require service - the casing stays in the line. Centerline discharge. Stud mounted casing assures positive alignment and allows rotation of discharge to eight different positions. Openings are provided for test gauges, for venting and for draining the pump.
Interchangeability
The complete liquid end of any size pump is interchangeable between motors on close-coupled pumps and the BURKS power frames of comparable size providing inventory flexibility, plus an option for handling emergency service.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Burks Series G9A-1 1/2 Centrifugal Pump Datasheet		View
	Burks Series G9A-1 1/2 Centrifugal Pump Manual		View
	Burks Series G9A-1 1/2 Centrifugal Pump Parts		View

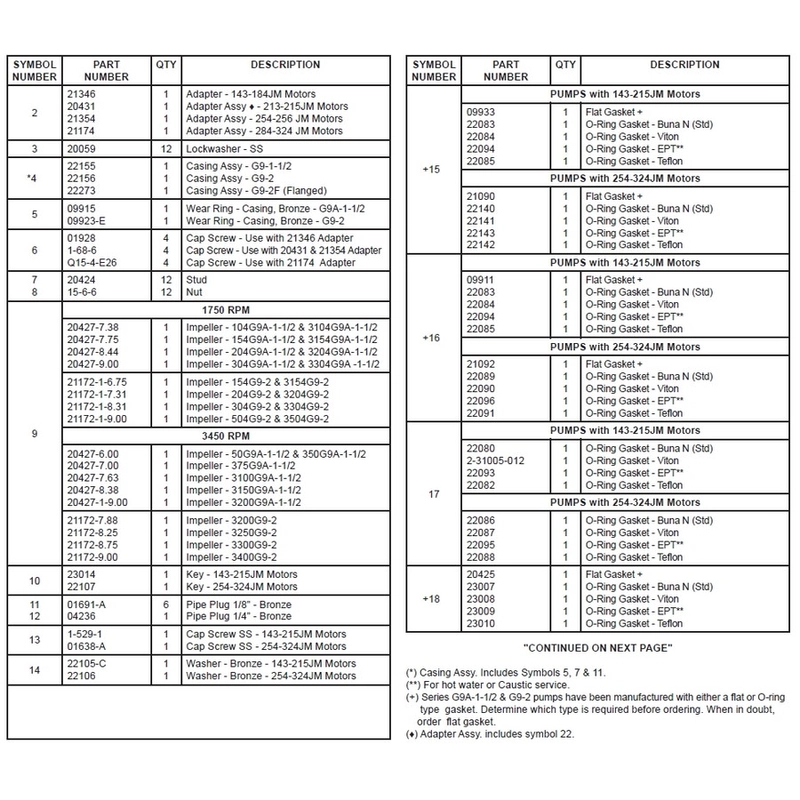

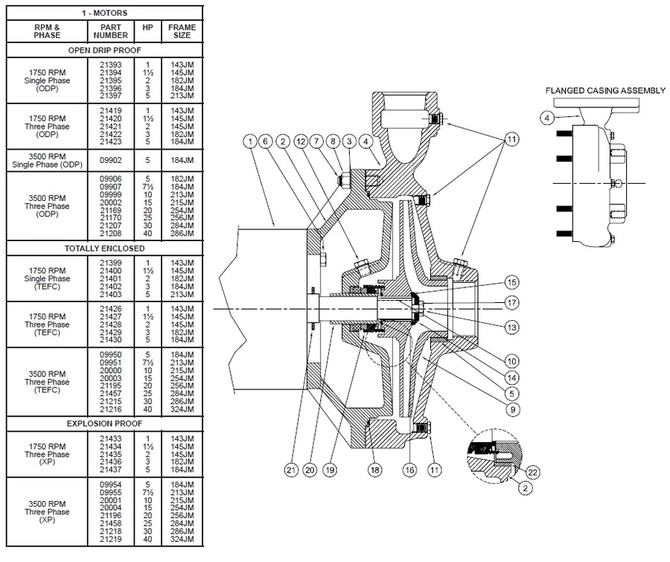

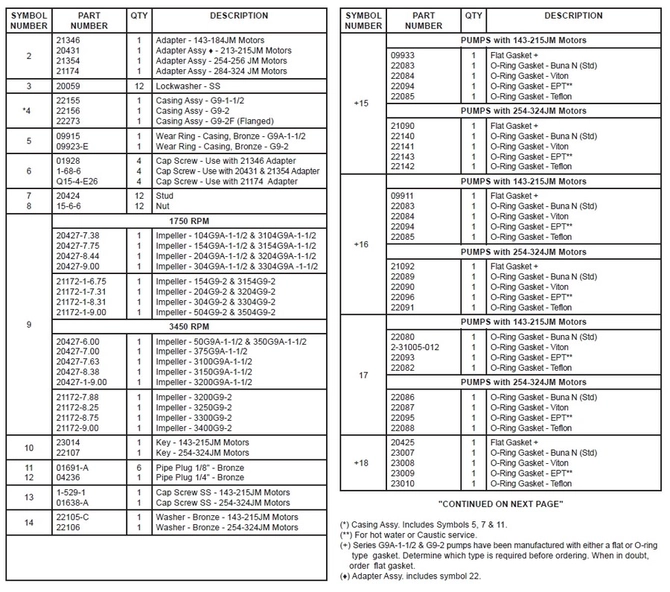

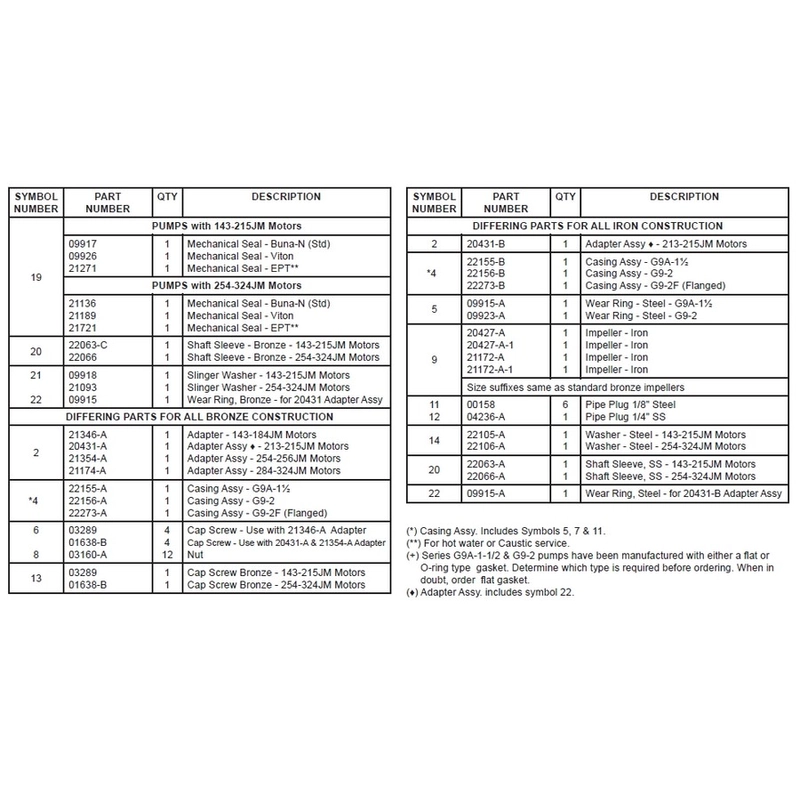

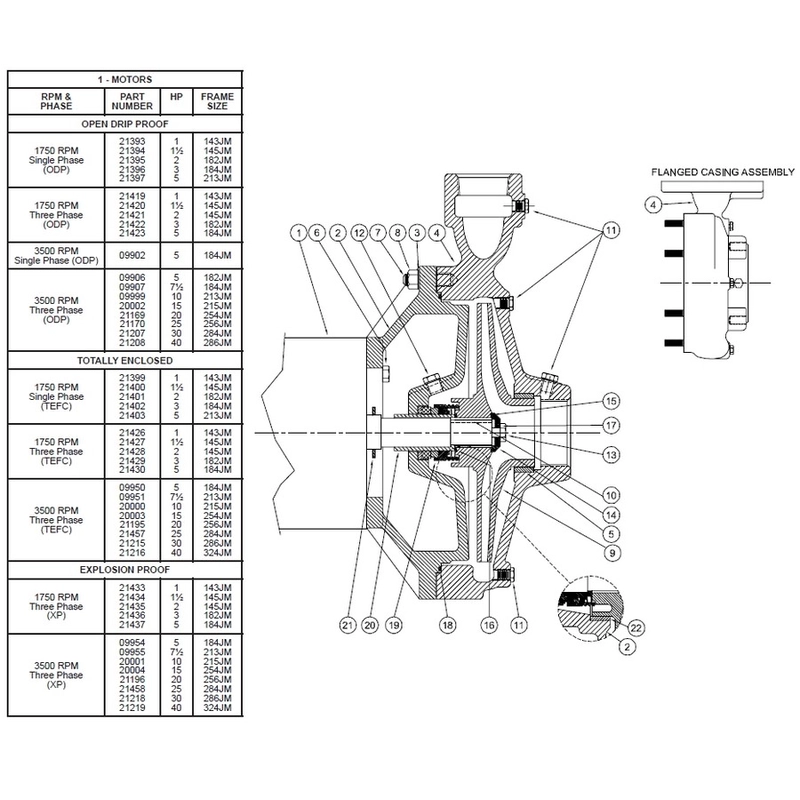

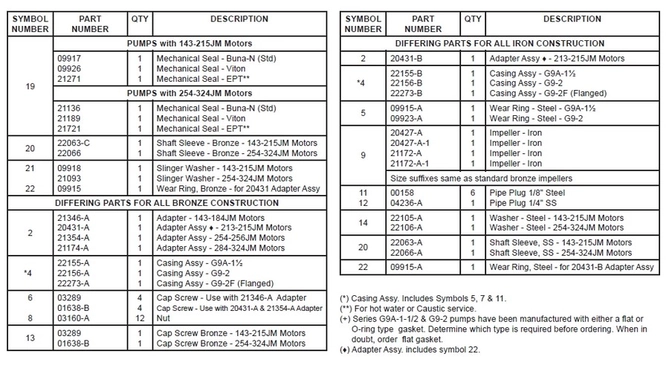

Repair Parts for 3304C9A-1-1/2

Product		shipping	price
	21393-WMN	Ships in	$1,553.94	Select item
	21394	Lead Time TBD	$2,052.34	Select item
	21395	Lead Time TBD	$1,969.57	Select item
	21396	Lead Time TBD	Call for pricing
	21397	Lead Time TBD	$4,472.25	Select item
	21419	Lead Time TBD	Call for pricing
	21420	Lead Time TBD	Call for pricing
	21421	Lead Time TBD	Call for pricing
	21422	Lead Time TBD	Call for pricing
	21423	Lead Time TBD	Call for pricing
	09902-WMN	Ships in	$2,094.17	Select item
	09906	Lead Time TBD	Call for pricing
	09907	Lead Time TBD	Call for pricing
	09999	Lead Time TBD	Call for pricing
	20002	Lead Time TBD	Call for pricing
	21169	Lead Time TBD	Call for pricing
	21170-MPP	Ships in	$1,090.55	Select item
	21207	Lead Time TBD	Call for pricing
	21208	Lead Time TBD	Call for pricing
	21399	Lead Time TBD	Call for pricing
	21400	Lead Time TBD	Call for pricing
	21401	Lead Time TBD	Call for pricing
	21402	Lead Time TBD	Call for pricing
	21403	Lead Time TBD	$4,676.06	Select item
	21426	Lead Time TBD	Call for pricing
	21427	Lead Time TBD	Call for pricing
	21428	Lead Time TBD	Call for pricing
	21429	Lead Time TBD	Call for pricing
	21430	Lead Time TBD	Call for pricing
	09950	Lead Time TBD	Call for pricing
	09951	Lead Time TBD	Call for pricing
	20000	Lead Time TBD	Call for pricing
	20003	Lead Time TBD	Call for pricing
	21195	Lead Time TBD	Call for pricing
	21457	Lead Time TBD	Call for pricing
	21215	Lead Time TBD	Call for pricing
	21216-MPP	Ships in	$4.56	Select item
	21433	Lead Time TBD	Call for pricing
	21434	Lead Time TBD	Call for pricing
	21435-MPP	Ships in	$1.40	Select item
	21436	Lead Time TBD	Call for pricing
	21437	Lead Time TBD	Call for pricing
	09954	Lead Time TBD	Call for pricing
	09955	Lead Time TBD	Call for pricing
	20001	Lead Time TBD	Call for pricing
	20004	Lead Time TBD	Call for pricing
	21196	Lead Time TBD	Call for pricing
	21458	Lead Time TBD	Call for pricing
	21218	Lead Time TBD	Call for pricing
	21219	Lead Time TBD	Call for pricing
	21346-WMN	Ships in	$3,533.30	Select item
	20431	Lead Time TBD	$1,857.43	Select item
	21354-WMN	Ships in	$4,375.24	Select item
	21174	Lead Time TBD	$3,805.64	Select item
	20059	Lead Time TBD	Call for pricing
	22155-BUR	Lead Time TBD	Call for pricing
	22156-MPP	Ships in	$1.65	Select item
	22273	Lead Time TBD	Call for pricing
	09915	Lead Time TBD	$88.11	Select item
	09923-E	Ships in 2 Weeks	$111.25	Select item
	01928-WMN	Ships in	$5.34	Select item
	1-68-6-BUR	Lead Time TBD	$5.34	Select item
Q15-4-E26			Call for Shipping
	20424	Lead Time TBD	$5.34	Select item
	15-6-6-BUR	Lead Time TBD	$5.34	Select item
	20427-7.38	Lead Time TBD	Call for pricing
	20427-7.75	Lead Time TBD	Call for pricing
	20427-8.44	Lead Time TBD	Call for pricing
	20427-9.00	Lead Time TBD	Call for pricing
	21172-1-6.75	Lead Time TBD	Call for pricing
	21172-1-7.31	Lead Time TBD	Call for pricing
	21172-1-8.31	Lead Time TBD	Call for pricing
	21172-1-9.00	Lead Time TBD	Call for pricing
	20427-6.00	Lead Time TBD	Call for pricing
	20427-7.00	Lead Time TBD	Call for pricing
	20427-7.63	Lead Time TBD	Call for pricing
	20427-8.38	Lead Time TBD	Call for pricing
	20427-1-9.00	Lead Time TBD	Call for pricing
	21172-7.88	Lead Time TBD	$2,534.72	Select item
	21172-8.25	Lead Time TBD	$2,534.72	Select item
	21172-8.75	Lead Time TBD	Call for pricing
	21172-9.00	Ships in	$2,534.72	Select item
	23014	Lead Time TBD	$0.89	Select item
	22107	Lead Time TBD	$29.37	Select item
	01691-A	Lead Time TBD	$5.34	Select item
	04236	Lead Time TBD	$5.34	Select item
	1-529-1-CRN	Ships in	$5.34	Select item
	01638-A	Lead Time TBD	Call for pricing
	22105-C	Lead Time TBD	$64.97	Select item
	22106	Lead Time TBD	$79.21	Select item
	09933	Lead Time TBD	$61.41	Select item
	22083	Lead Time TBD	$3.56	Select item
	22084	Lead Time TBD	$1.78	Select item
	22094	Lead Time TBD	$5.34	Select item
	22085	Lead Time TBD	$5.34	Select item
	21090	Lead Time TBD	$35.60	Select item
	22140	Lead Time TBD	$5.34	Select item
	22141	Lead Time TBD	$5.34	Select item
	22143-MPP	Ships in	$170.85	Select item
	22142-MPP	Ships in	$314.50	Select item
	09911	Lead Time TBD	$24.03	Select item
	22083	Lead Time TBD	$3.56	Select item
	22084	Lead Time TBD	$1.78	Select item
	22094	Lead Time TBD	$5.34	Select item
	22085	Lead Time TBD	$5.34	Select item
	22089	Lead Time TBD	$5.34	Select item
	22090	Lead Time TBD	$5.34	Select item
	22096	Lead Time TBD	$25.81	Select item
	22091	Lead Time TBD	$10.68	Select item
	22080	Lead Time TBD	$5.34	Select item
	2-31005-012-BUR	Lead Time TBD	$10.68	Select item
	22093	Lead Time TBD	$5.34	Select item
	22082	Lead Time TBD	$5.34	Select item
	22086	Lead Time TBD	$5.34	Select item
	22087	Lead Time TBD	$5.34	Select item
	22095	Lead Time TBD	$5.34	Select item
	22088	Lead Time TBD	Call for pricing
	20425	Lead Time TBD	$42.72	Select item
	23007	Lead Time TBD	$10.68	Select item
	23008	Lead Time TBD	$88.11	Select item
	23009	Lead Time TBD	$47.17	Select item
	23010	Lead Time TBD	$343.54	Select item
	09917	Lead Time TBD	$187.79	Select item
	09926	Lead Time TBD	$600.75	Select item
	21271 MP	Ships in	$2.34	Select item
	21136	Lead Time TBD	$353.33	Select item
	21189	Lead Time TBD	$1,177.47	Select item
	21721	Lead Time TBD	$729.80	Select item
	22063-C	Lead Time TBD	$70.31	Select item
	22066	Lead Time TBD	$135.28	Select item
	09918	Lead Time TBD	$5.34	Select item
	21093	Lead Time TBD	$12.46	Select item
	09915	Lead Time TBD	$88.11	Select item
	21346-A	Lead Time TBD	$5,557.16	Select item
	20431-A	Lead Time TBD	$5,475.28	Select item
	21354-A	Lead Time TBD	$5,538.47	Select item
	21174-A	Lead Time TBD	$10,722.72	Select item
	22155-A	Lead Time TBD	Call for pricing
	22156-A	Lead Time TBD	Call for pricing
	22273-A	Lead Time TBD	Call for pricing
	03289	Lead Time TBD	$5.34	Select item
	01638-B	Lead Time TBD	$32.04	Select item
	03160-A	Lead Time TBD	$5.34	Select item
	03289	Lead Time TBD	$5.34	Select item
	01638-B	Lead Time TBD	$32.04	Select item
	20431-B	Lead Time TBD	$2,475.98	Select item
	22155-B	Lead Time TBD	Call for pricing
	22156-B	Lead Time TBD	Call for pricing
	22273-B	Lead Time TBD	Call for pricing
	09915-A	Lead Time TBD	$438.77	Select item
	09923-A	Lead Time TBD	$952.30	Select item
	20427-A	Lead Time TBD	Call for pricing
	20427-A-1	Lead Time TBD	Call for pricing
	21172-A	Lead Time TBD	Call for pricing
	21172-A-1	Lead Time TBD	Call for pricing
	00158	Lead Time TBD	$5.34	Select item
	04236-A	Lead Time TBD	$10.68	Select item
	22105-A	Ships in 2-3 Days	$60.52	Select item
	22106-A	Lead Time TBD	$323.07	Select item
	22063-A	Lead Time TBD	$343.54	Select item
	22066-A	Lead Time TBD	$534.89	Select item
	09915-A	Lead Time TBD	$438.77	Select item
