Burks L7CT8M-SS Turbine Pump, Close Coupled, 50 Hz, Single Phase, 2850 RPM, 3/4 Horsepower, ODP Motor Enclosure, 49 lbs.

$6,752.20

Best Price Guarantee!
1350PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: L7CT8M-SS

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

L7CT8M-SS

Burks L7CT8M-SS Turbine Pump, Close Coupled, 50 Hz, Single Phase, 2850 RPM, 3/4 Horsepower, ODP Motor Enclosure, 49 lbs.

Capacities (GPM)	8
Casing Working Pressure	250
Discharge NPT (Inches)	1
Frame Material	316 Stainless Steel
Heads To (Feet)	350
HP	0.75
Hz	50
Impeller Material	303 Stainless Steel
Inlet Pressure (PSI)	100
Material	Stainless Steel

Maximum Operating Temperature	225°F (107°C) - Standard Buna-N Seal
Motor Enclosure Type	ODP - Open Drip Proof
Motor Shaft Material	316 Stainless Steel
Phase	1 Ph (Single Phase)
Raceway Material	303 Stainless Steel
Shaft Seal Material	Carbon / Ceramic / SS Buna-N
Speed (RPM)	2850
Suction NPT (Inches)	1
Voltage	115/230

CT Series Information

General Description
Burks CT Series - Turbine Pumps, Close Coupled
Materials of Construction
Frame - Bronze Fitted: Cast Iron, All Bronze: Bronze, Stainless Steel: #316 Stainless. Impeller - Bronze Fitted: Bronze, All Bronze: Bronze, Stainless Steel: #303 Stainless. Raceway - Bronze Fitted: Bronze, All Bronze: Bronze, Stainless Steel: #303 Stainless. Shaft: #316 Stainless Shaft Seal: Carbon Ceramic SS Buna-N
Factory Tested
Every pump factory tested
Motor Information
Standard pump motors have open drip proof construction and are rated with jet pump service factors for continuous duty operation at all ratings shown. Single phase motors are 115/230 volt, 60 Hz, capacitor start/induction run with buit-in overload protection. Single phase motors 1/3, 1/2 & 3/4 HP are U.L. recognized. Three phase motors require a magnetic type starter which provides full 3-leg overload protection. Failure to use the correct starter and overloads will void the warranty. All three phase motors are 208-230/460 volt, 60/50Hz, 3450/2900 RPM.
Jacketed Seal Cavity
For Temperatures to 500°F (260°C) - Series CT Pumps are available in a Jacketed Seal Cavity design for pumping hot oil, hot water and heat transfer fluids in common use in high temperature heating or cooling applications. This feature greatly extends seal life in high temperature applications. To order, add suffix “J” to pump catalog number for temperatures below 400°F (204°C) and add suffix “JK” to pump catalog number for temperatures over 400°F (204°). Example: 5CT5MJ.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Burks Series CT Closed Coupled Turbine Pump Datasheet		View
	Burks Series CT Turbine Pump Manual		View
	3CT5M-SS-FE Repair Parts		View

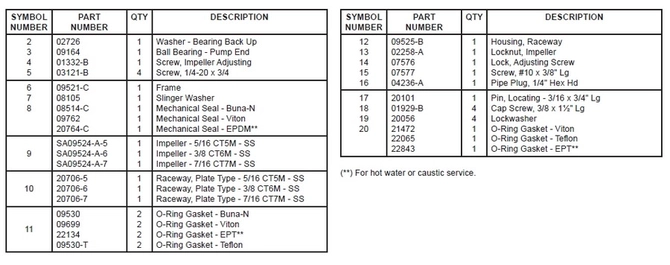

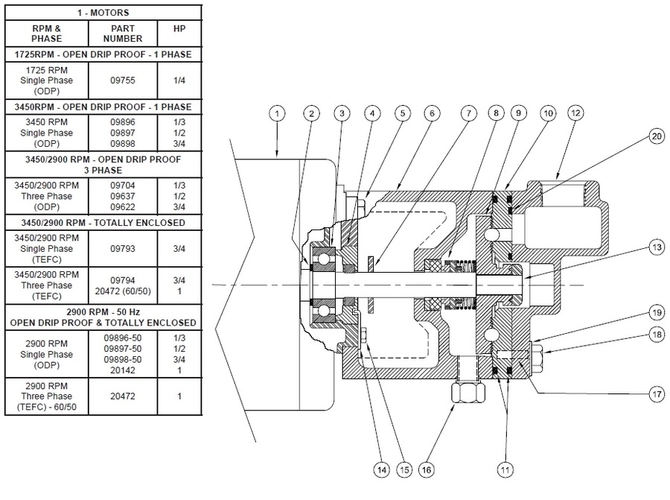

Repair Parts for L7CT8M-SS

qty.	price
09755	Lead Time TBD	Call for pricing
09896	Lead Time TBD	Call for pricing
09897	Lead Time TBD	Call for pricing
09898	Lead Time TBD	Call for pricing
09704	Lead Time TBD	Call for pricing
09637	Lead Time TBD	Call for pricing
09622	Lead Time TBD	Call for pricing
09793	Lead Time TBD	Call for pricing
09794	Lead Time TBD	Call for pricing
20472	Lead Time TBD	Call for pricing
09896-50	Lead Time TBD	Call for pricing
09897-50	Lead Time TBD	Call for pricing
09898-50	Lead Time TBD	Call for pricing
20142	Lead Time TBD	Call for pricing
02726	Lead Time TBD	$13.35	Select item
09164	Lead Time TBD	$141.51	Select item
01332-B	Lead Time TBD	$74.76	Select item
03121-B	Lead Time TBD	Call for pricing
09521-C	Lead Time TBD	$5,437.01	Select item
08105	Ships in 1 Week	$4.00	Select item
08514-C	Lead Time TBD	Call for pricing
09762	Ships in	Call for pricing
20764-C	Ships in 1-2 Weeks	$1,165.53	Select item
SA09524-A-5	Lead Time TBD	Call for pricing
SA09524-A-6	Lead Time TBD	Call for pricing
SA09524-A-7	Lead Time TBD	Call for pricing
20706-5	Lead Time TBD	Call for pricing
20706-6	Lead Time TBD	Call for pricing
20706-7	Lead Time TBD	Call for pricing
09530	Lead Time TBD	$4.00	Select item
09699	Lead Time TBD	$77.43	Select item
22134	Ships in 1-2 Weeks	$16.91	Select item
09530-T	Lead Time TBD	$64.08	Select item
09525-B	Lead Time TBD	$3,910.66	Select item
02258-A	Lead Time TBD	$64.08	Select item
07576	Lead Time TBD	$5.34	Select item
07577	Ships in 1-2 Weeks	$5.34	Select item
04236-A	Lead Time TBD	$14.24	Select item
20101-BUR	Lead Time TBD	$0.89	Select item
01929-B	Lead Time TBD	Call for pricing
20056	Lead Time TBD	Call for pricing
21472	Lead Time TBD	$5.34	Select item
22065-MPP	Ships in	Call for pricing
22843	Lead Time TBD	$5.34	Select item
