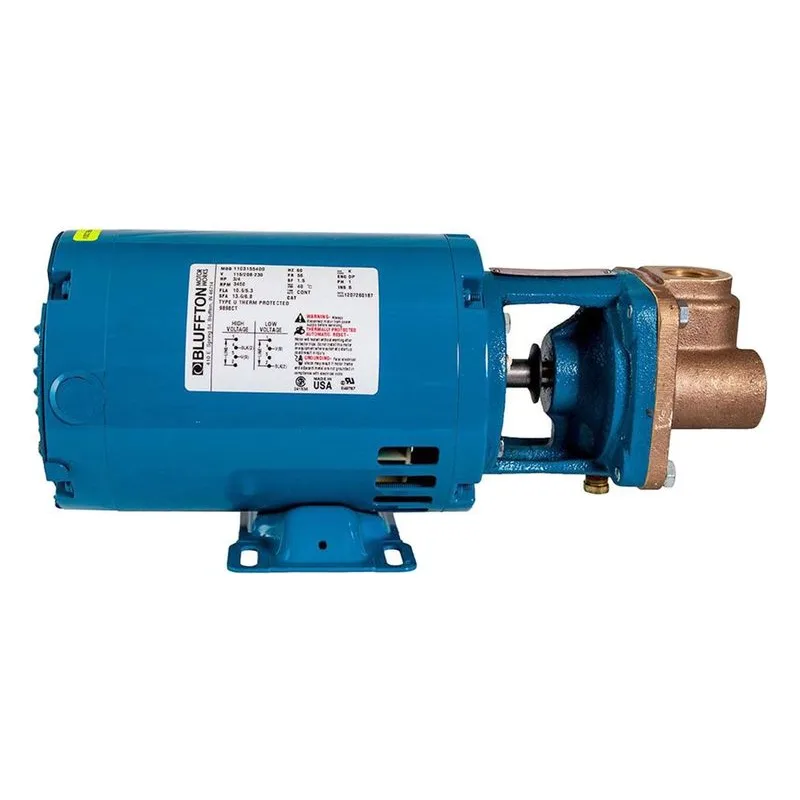

Burks 7CT8ME CT Series Close Coupled Turbine Pump. Bronze Fitted Construction, Carbon/Ceramic/EPDM Mechanical Seal, 1" NPT Suction, 1" NPT Discharge. 3/4 HP, 115/230 Volt, 60 Hz, 3450 RPM, 1 Ph (Single Phase), ODP - Open Drip Proof Motor. A Crane Pumps & Systems Brand.

$2,325.40

Best Price Guarantee!
464PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 7CT8ME

Overview
Series Info
Reviews
Literature/Manuals

7CT8ME

Casing Working Pressure	250 PSI (1723 kPa)
Discharge NPT (Inches)	1" NPT
HP	3/4
Hz	60
Impeller Material	Bronze w/ Monel Blades
Material	Bronze Fitted
Motor Enclosure Type	ODP - Open Drip Proof
Motor Shaft Material	316 SS

Phase	1 Ph (Single Phase)
Raceway Material	Bronze
Shaft Seal Material	Carbon/Ceramic/EPDM
Speed (RPM)	3450
Suction NPT (Inches)	1" NPT
Voltage	115/230

CT Series Information

General Description
Burks CT Series - Turbine Pumps, Close Coupled
Materials of Construction
Frame - Bronze Fitted: Cast Iron, All Bronze: Bronze, Stainless Steel: #316 Stainless. Impeller - Bronze Fitted: Bronze, All Bronze: Bronze, Stainless Steel: #303 Stainless. Raceway - Bronze Fitted: Bronze, All Bronze: Bronze, Stainless Steel: #303 Stainless. Shaft: #316 Stainless Shaft Seal: Carbon Ceramic SS Buna-N
Factory Tested
Every pump factory tested
Motor Information
Standard pump motors have open drip proof construction and are rated with jet pump service factors for continuous duty operation at all ratings shown. Single phase motors are 115/230 volt, 60 Hz, capacitor start/induction run with buit-in overload protection. Single phase motors 1/3, 1/2 & 3/4 HP are U.L. recognized. Three phase motors require a magnetic type starter which provides full 3-leg overload protection. Failure to use the correct starter and overloads will void the warranty. All three phase motors are 208-230/460 volt, 60/50Hz, 3450/2900 RPM.
Jacketed Seal Cavity
For Temperatures to 500°F (260°C) - Series CT Pumps are available in a Jacketed Seal Cavity design for pumping hot oil, hot water and heat transfer fluids in common use in high temperature heating or cooling applications. This feature greatly extends seal life in high temperature applications. To order, add suffix “J” to pump catalog number for temperatures below 400°F (204°C) and add suffix “JK” to pump catalog number for temperatures over 400°F (204°). Example: 5CT5MJ.
