Burks 35CT8M-SS Turbine Pump, Close Coupled, 60 Hz, Three Phase, 3450/2850 RPM, 1/2 Horsepower, ODP Motor Enclosure, 36 lbs.
|Casing Working Pressure||250|
|Discharge NPT (Inches)||1|
|Frame Material||316 Stainless Steel|
|Heads To (Feet)||350|
|Impeller Material||303 Stainless Steel|
|Inlet Pressure (PSI)||100|
|Maximum Operating Temperature||225°F (107°C) - Standard Buna-N Seal|
|Motor Enclosure Type||ODP - Open Drip Proof Enclosure|
|Motor Shaft Material||316 Stainless Steel|
|Raceway Material||303 Stainless Steel|
|Shaft Seal Material||Carbon / Ceramic / SS Buna-N|
|Suction NPT (Inches)||1|
|Burks CT Series - Turbine Pumps, Close Coupled|

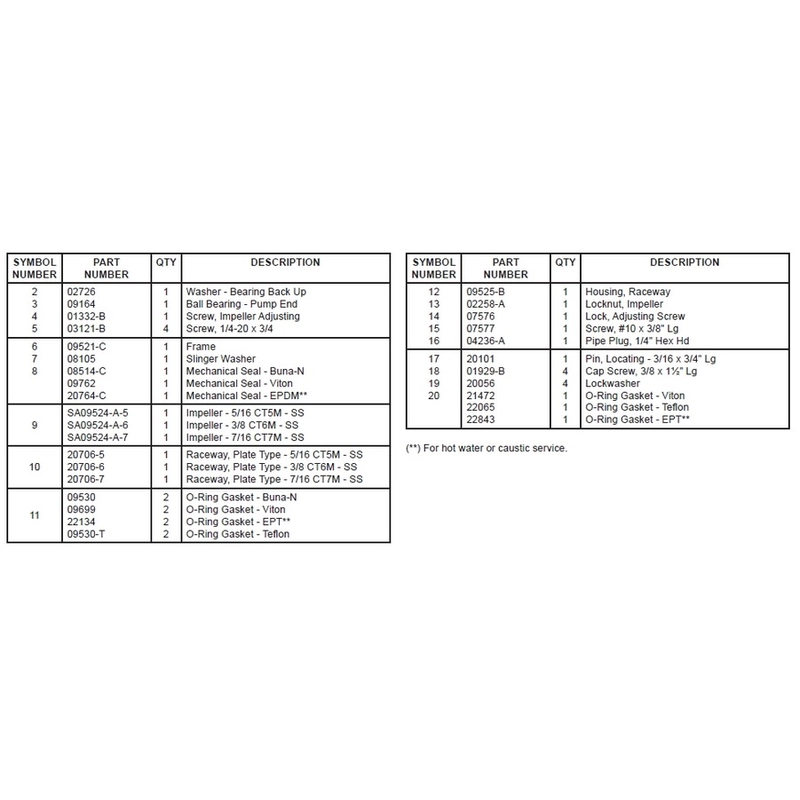

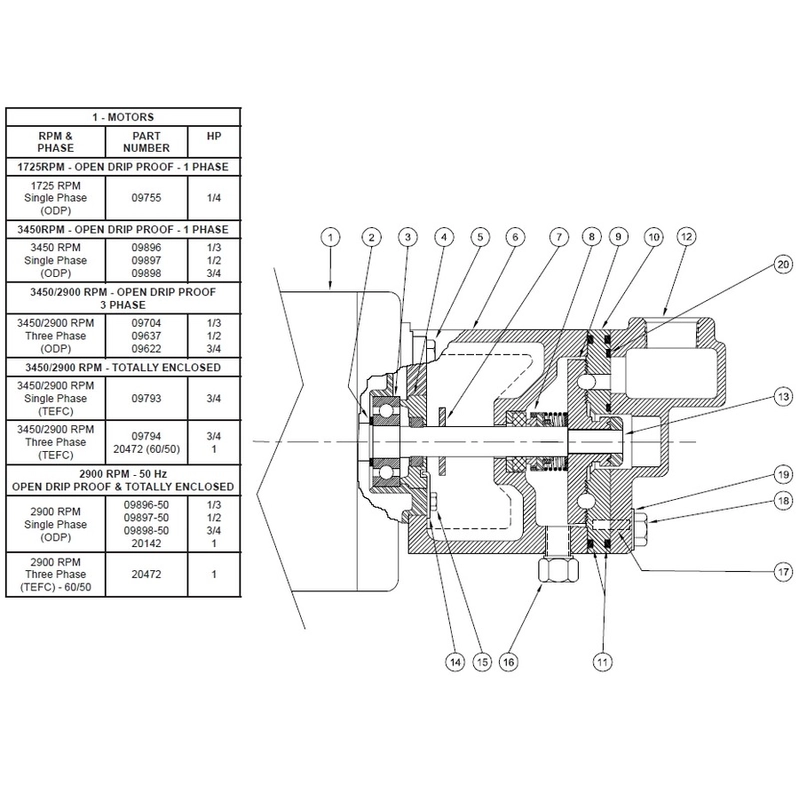

|Materials of Construction|
|Frame - Bronze Fitted: Cast Iron, All Bronze: Bronze, Stainless Steel: #316 Stainless.|
Impeller - Bronze Fitted: Bronze, All Bronze: Bronze, Stainless Steel: #303 Stainless.
Raceway - Bronze Fitted: Bronze, All Bronze: Bronze, Stainless Steel: #303 Stainless.
Shaft: #316 Stainless
Shaft Seal: Carbon Ceramic SS Buna-N
|Every pump factory tested|
|Standard pump motors have open drip proof construction and are rated with jet pump service factors for continuous duty operation at all ratings shown. Single phase motors are 115/230 volt, 60 Hz, capacitor start/induction run with buit-in overload protection. Single phase motors 1/3, 1/2 & 3/4 HP are U.L. recognized. Three phase motors require a magnetic type starter which provides full 3-leg overload protection. Failure to use the correct starter and overloads will void the warranty. All three phase motors are 208-230/460 volt, 60/50Hz, 3450/2900 RPM.|
|Jacketed Seal Cavity|
|For Temperatures to 500°F (260°C) - Series CT Pumps are available in a Jacketed Seal Cavity design for pumping hot oil, hot water and heat transfer fluids in common use in high temperature heating or cooling applications. This feature greatly extends seal life in high temperature applications. To order, add suffix “J” to pump catalog number for temperatures below 400°F (204°C) and add suffix “JK” to pump catalog number for temperatures over 400°F (204°). Example: 5CT5MJ.|
