Burks CT Series 35CT5M

Image shown may not be actual product

Burks

35CT5M

0 reviews

35CT5M Turbine Pump - Burks Close Coupled, 1/2 HP, Three Phase, 3450 RPM, 60 Hz, Bronze Fitted

$1,538.60

Best Price Guarantee!
307PumpPoints

Item: 35CT5M

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

35CT5M

35CT5M Turbine Pump - Burks Close Coupled, 1/2 HP, Three Phase, 3450 RPM, 60 Hz, Bronze Fitted

HP	0.5
Hz	60.0

Speed (RPM)

3450

CT Series Information

General Description
Burks CT Series - Turbine Pumps, Close Coupled
Materials of Construction
Frame - Bronze Fitted: Cast Iron, All Bronze: Bronze, Stainless Steel: #316 Stainless. Impeller - Bronze Fitted: Bronze, All Bronze: Bronze, Stainless Steel: #303 Stainless. Raceway - Bronze Fitted: Bronze, All Bronze: Bronze, Stainless Steel: #303 Stainless. Shaft: #316 Stainless Shaft Seal: Carbon Ceramic SS Buna-N
Factory Tested
Every pump factory tested
Motor Information
Standard pump motors have open drip proof construction and are rated with jet pump service factors for continuous duty operation at all ratings shown. Single phase motors are 115/230 volt, 60 Hz, capacitor start/induction run with buit-in overload protection. Single phase motors 1/3, 1/2 & 3/4 HP are U.L. recognized. Three phase motors require a magnetic type starter which provides full 3-leg overload protection. Failure to use the correct starter and overloads will void the warranty. All three phase motors are 208-230/460 volt, 60/50Hz, 3450/2900 RPM.
Jacketed Seal Cavity
For Temperatures to 500°F (260°C) - Series CT Pumps are available in a Jacketed Seal Cavity design for pumping hot oil, hot water and heat transfer fluids in common use in high temperature heating or cooling applications. This feature greatly extends seal life in high temperature applications. To order, add suffix “J” to pump catalog number for temperatures below 400°F (204°C) and add suffix “JK” to pump catalog number for temperatures over 400°F (204°). Example: 5CT5MJ.

Categories

Boiler Feeds
1769 products
Circulation
1769 products
Condensate Return
1769 products
Cooling Tower
11343 products
High Temperature
1769 products
Liquid Transfer
2494 products

0 Reviews

☆
☆
☆
☆
☆

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Burks Series CT Closed Coupled Turbine Pump Datasheet		View
	Burks Series CT Turbine Pump Manual		View
	3CT5M-FE Repair Parts		View

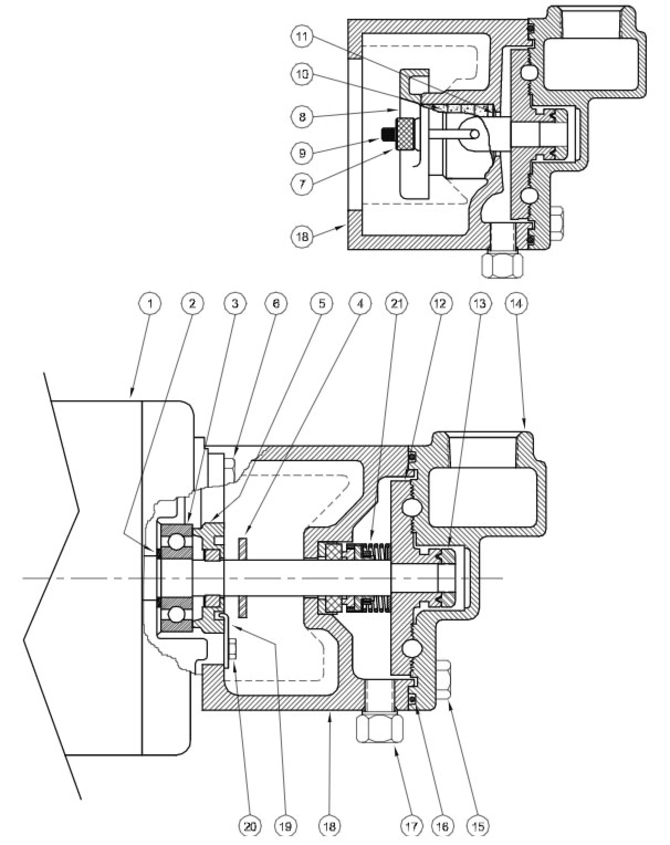

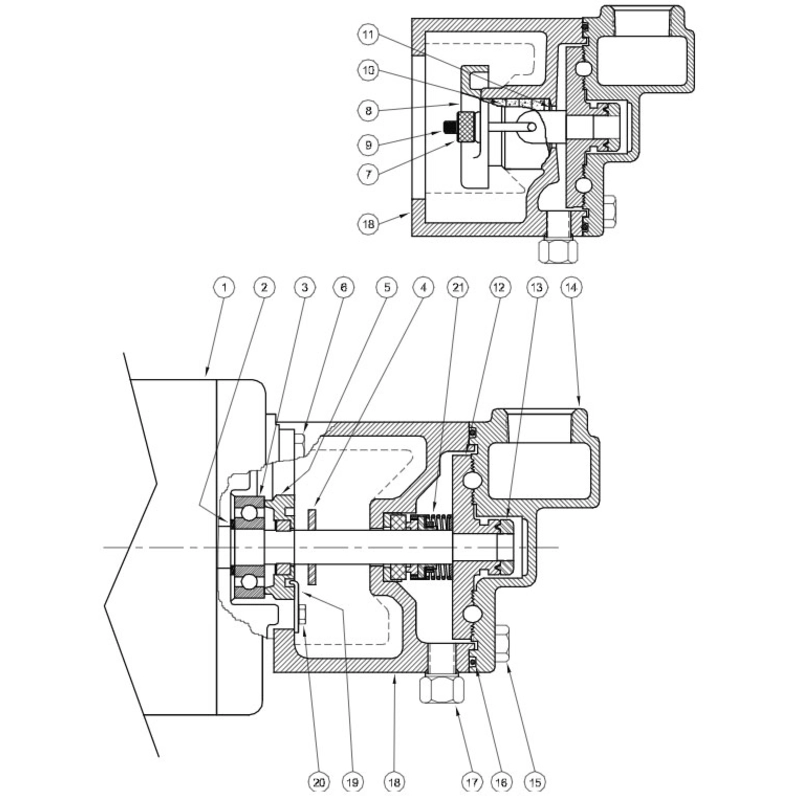

Repair Parts for 35CT5M

Product		qty.	shipping	price
	20158-5		Lead Time TBD	$968.25	Select item
	08105		Ships in 1 Week	$5.34	Select item
	01332-B		Lead Time TBD	$58.74	Select item
	03121		Lead Time TBD	$5.34	Select item
	SA09524-5		Lead Time TBD	Call for pricing
	02258		Lead Time TBD	$24.92	Select item
	09525-5		Lead Time TBD	Call for pricing
	01928-BUR		Lead Time TBD	$5.34	Select item
	09530		Lead Time TBD	$5.34	Select item
	04236		Lead Time TBD	$5.34	Select item
	09521		Lead Time TBD	$220.72	Select item
	07576		Lead Time TBD	$5.34	Select item
	07577		Ships in 1-2 Weeks	$5.34	Select item
	08514-C-P		Ships in	$84.55	Select item

0 items selected.Add items to cart
