Burks CR Series 3CR6M

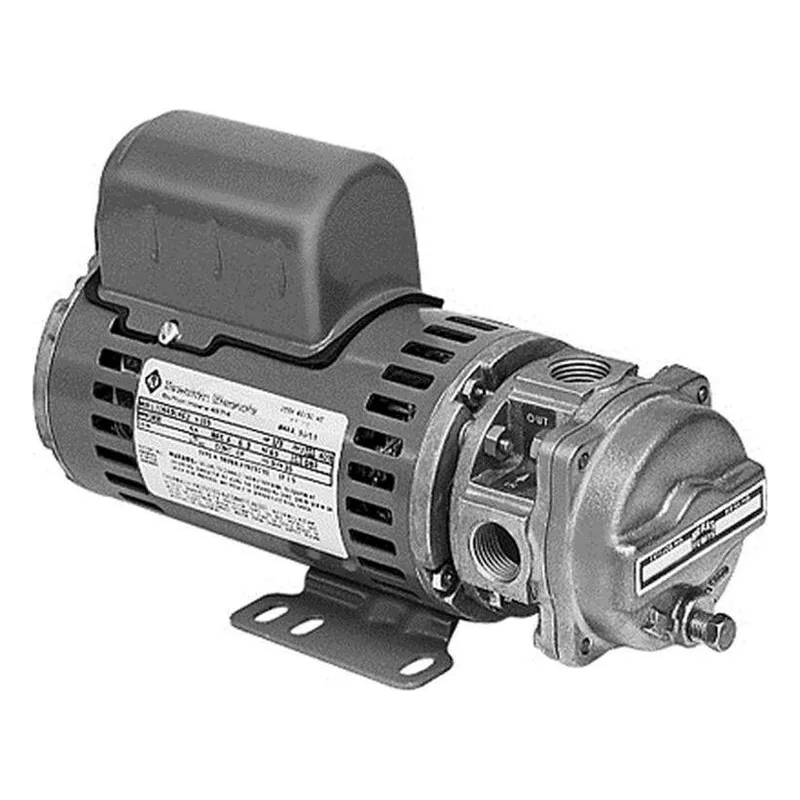

Image shown may not be actual product

Burks

3CR6M

0 reviews

Burks 3CR6M Turbine Pump, Close Coupled, 60 Hz, Single Phase, 3450/2850 RPM, 1/3 Horsepower, ODP Motor Enclosure, 17 lbs.

$1,224.30

Best Price Guarantee!
244PumpPoints

Item: 3CR6M

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

3CR6M

Burks 3CR6M Turbine Pump, Close Coupled, 60 Hz, Single Phase, 3450/2850 RPM, 1/3 Horsepower, ODP Motor Enclosure, 17 lbs.

Capacities (GPM)	4
Casing Working Pressure	150
Frame Material	Bronze
Front Cover Material	Bronze
Heads To (Feet)	225
HP	0.33
Hz	60
Impeller Material	Bronze w/ Monel Blades
Inlet Pressure (PSI)	50
Material	All Bronze

Maximum Operating Temperature	225°F (107°C) - Standard Buna-N Seal
Motor Enclosure Type	ODP - Open Drip Proof
Motor Shaft Material	316 Stainless Steel
Phase	1 Ph (Single Phase)
Product Notes	Compare to MTH Pumps Model: T31E-AB-1-3-HP-1-PHASE-3500-RPM-ODP
Raceway Material	Bronze
Shaft Seal Material	Carbon / Ceramic / SS Buna-N
Speed (RPM)	3450
Voltage	230

CR Series Information

General Description
Burks CR Series - Regenerative Turbine Pumps, Close Coupled
Materials of Construction
Frame/Raceway - All Bronze: Bronze Impeller - All Bronze: Bronze Shaft: #316 Stainless Front Cover: Bronze Shaft Seal: Carbon Ceramic SS Buna-N
Motors
Motors have ball/ball bearing construction and open ventilated enclosure. Standard motor is NOT drip-proof. Rated for continuous duty operation at all ratings shown. Drip-Proof motor is available as option for 230 volt.
Factory Tested
Every pump factory tested
Overload Protection
Capacitor Start motors have built-in automatic overload protection

Categories

Boiler Feeds
1769 products
Circulation
1769 products
Condensate Return
1769 products
Cooling Tower
11343 products
High Temperature
1769 products
Liquid Transfer
2494 products

0 Reviews

☆
☆
☆
☆
☆

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Burks Series CR Closed Coupled Turbine Pump Datasheet		View
	Burks Series CR Turbine Pump Manual		View
	3CR6M-FE Repair Parts		View

View the manual

Repair Parts for 3CR6M

Key	Part No	Description	Qty	shipping	price

0 items selected.Add items to cart

21933F
Burks 21933F .33HP, 3500, 230/1, ODP, Pump Repair Part Manufactured by Crane.
$1,046.64
Select Item

22850-6
Burks Wet End Kits for Series CR6M Pumps - 22850-6 SPACER IMP .640X.453X
$606.90
Select Item

0 items selected.Add items to cart
