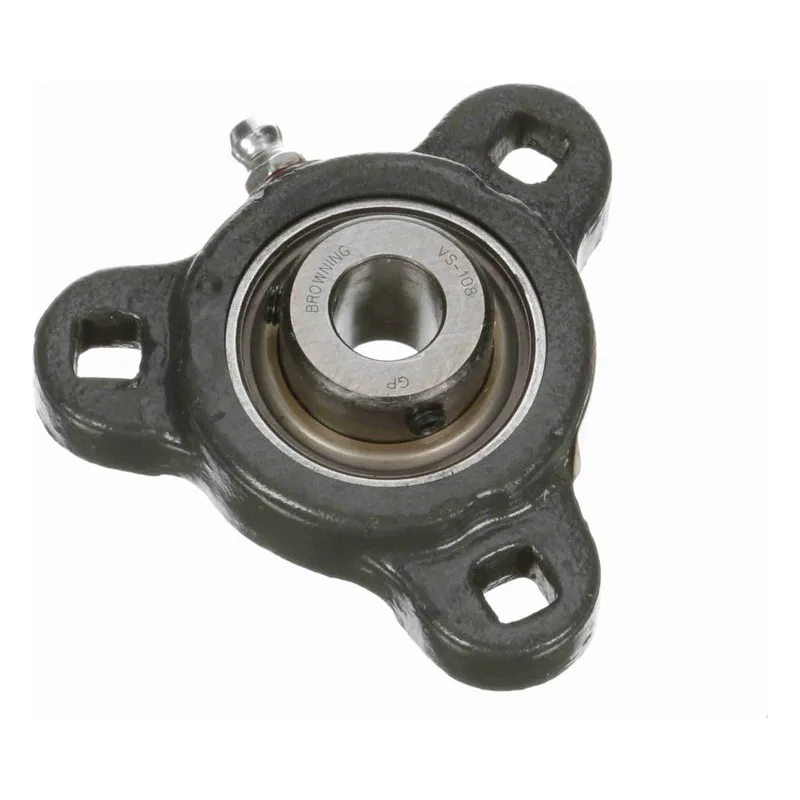

Image shown may not be actual product

767834

0 reviews

Browning 767834, Mounted Ductile Iron Three Bolt Flange Ball Bearing - 52100 Bearing Steel - Setscrew Lock, Catalog Number: VF3S-108M. 0.5" (12.7mm) Straight Bore, Light Duty, 0.969" (24.6mm) Height, 3.188" (81mm) Length, 3.188" (81mm) Width. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Powder coat epoxy malleable iron housing. Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews. Single lip contact seal.

Call for Pricing

Best Price Guarantee!

Item: 767834 | Model #: VF3S-108M

Overview
Series Info
Reviews

767834

Bearing Housing	Gray One Piece Flange, Three Bolt
Bearing Insert Coating	Uncoated
BOLT	0.297" Square Hole Carriage Bolt
Bolt Center Diameter	2.5"
Bore Size	0.5" (12.7mm) - Straight Bore
Category Name	Mounted Bearings
Centerline to Front Face	0.625" (15.9mm)
Configuration	No Pilot
FOOT HEIGHT	0.406" (10.3mm)
Housing Base	Solid
Housing Material	Ductile Iron
Housing Width	3.188" (81 mm)
Inner Race Length	0.938" (23.8mm)
Inner Ring OD	0.969" (24.6mm)
Insert Material	52100 Bearing Steel
Insert No.	VS-108
Locking Type	Setscrew
Lubrication	Lithium Complex NLGI 2 Grease
Manufacturer	Regal Rexnord

Misalignment	±1.5° Misalignment - Static Only
Model Number	VF3S-108M
Other Factors	Zone-Hardened
Overall Height	0.969" (24.6mm)
Overall Width	3.188" (81mm)
OVR LENGTH	3.188" (81mm)
Part Quantity	1
Parts Series	Light Duty
Part Type	Mounted Ball Bearings
Product Notes	Powder coat epoxy malleable iron housing; Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews; Single lip contact seal;
Quick Specs	Mounted Ductile Iron Three Bolt Flange Ball Bearing - 52100 Bearing Steel - Setscrew Lock
Radial Dynamic Load Capacity	2108 lbs
RETAINER	Molded fiber glass reinforced nylon Ball Riding Retainer
Rolling Element	Ball Bearing
Speed (RPM)	5000 Maximum
Type	Single Lip Contact Seal
UPC	662289607129

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
