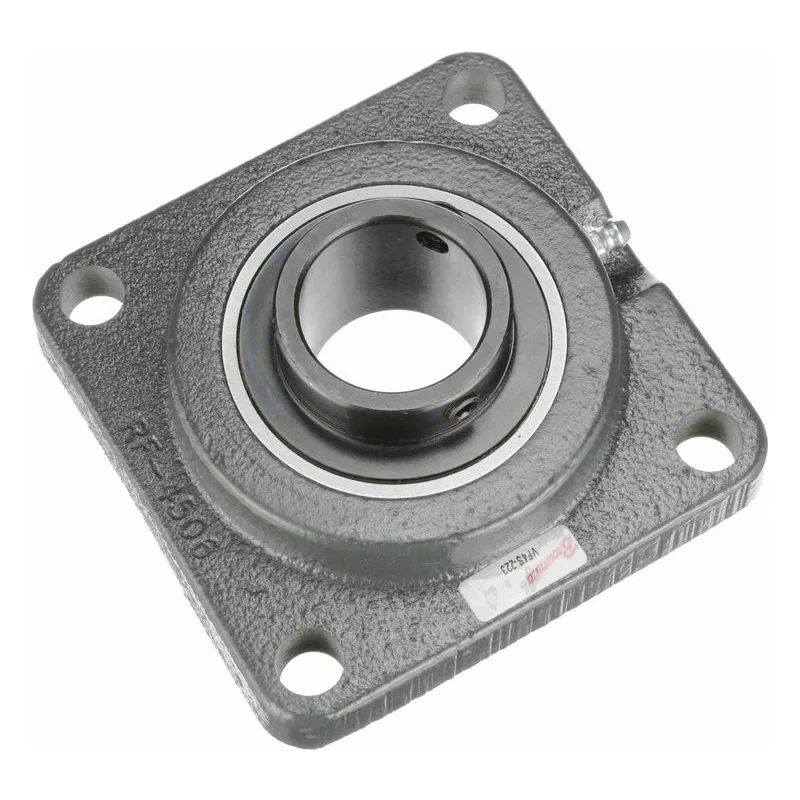

Browning 767475, Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided Inner - Setscrew Lock, Catalog Number: VF4S-223. 1.438" (36.5mm) Straight Bore, Standard Duty, 1.75" (44.5mm) Height, 4.625" (117.5mm) Length, 4.625" (117.5mm) Width. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Powder coat epoxy cast iron housing. Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews. Single lip contact seal and flinger.

$94.13

Best Price Guarantee!
18PumpPoints

Item: 767475 | Model #: VF4S-223

Overview
Series Info
Reviews

767475

Bearing Housing	Gray One Piece Flange, Four Bolt
Bearing Insert Coating	Black Oxide Coated Inner Ring
BOLT	0.5"
Bolt Center to Center Length	3.625" (92.1mm)
Bore Size	1.438" (36.5mm) - Straight Bore
Category Name	Mounted Bearings
Centerline to Front Face	1" (25.4mm)
Configuration	No Pilot
FOOT HEIGHT	0.594" (15.1mm)
Housing Base	Semi-Solid
Housing Material	Cast Iron
Housing Width	4.625" (117.5 mm)
Inner Race Length	1.688" (42.9mm)
Inner Ring OD	1.859" (47.2mm)
Insert Material	52100 Bearing Steel, Black Oxided Inner
Insert No.	VS-223
Locking Type	Setscrew
Lubrication	Lithium Complex NLGI 2 Grease
Manufacturer	Regal Rexnord

Misalignment	±1.5° Misalignment - Static Only
Model Number	VF4S-223
Other Factors	Zone-Hardened
Overall Height	1.75" (44.5mm)
Overall Width	4.625" (117.5mm)
OVR LENGTH	4.625" (117.5mm)
Part Quantity	1
Parts Series	Standard Duty
Part Type	Mounted Ball Bearings
Product Notes	Powder coat epoxy cast iron housing; Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews; Single lip contact seal & flinger;
Quick Specs	Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided Inner - Setscrew Lock
Radial Dynamic Load Capacity	5782 lbs
RETAINER	Molded fiber glass reinforced nylon Ball Riding Retainer
Rolling Element	Ball Bearing
Speed (RPM)	4000 Maximum
Type	Single Lip Contact Seal with Flinger
UPC	662289522729

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
