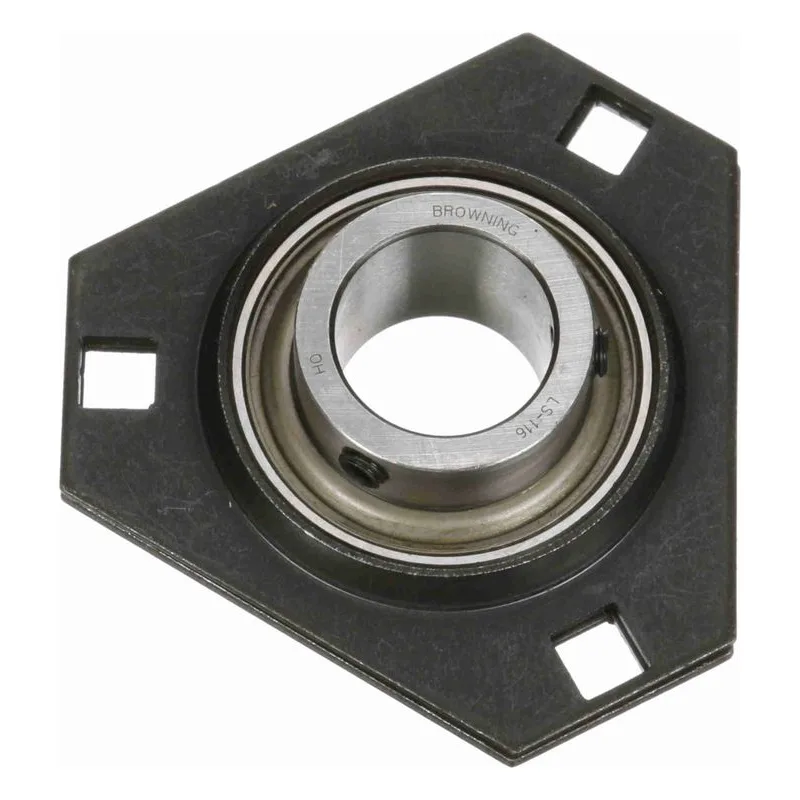

Browning 767129, Mounted Stamped Steel Three Bolt Flange Ball Bearing - 52100 Bearing Steel - Setscrew Lock, Catalog Number: SSF3TS-116. 1" (25.4mm) Straight Bore, Light Duty, 2.75" (69.9mm) Width. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Stamped steel housing with bearing insert. Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews. Single lip contact seal.

Call for Pricing

Best Price Guarantee!

Item: 767129 | Model #: SSF3TS-116

Overview
Series Info
Reviews

767129

Bearing Housing	Silver Two Piece Flange, Three Bolt
Bearing Insert Coating	Uncoated
BOLT	0.313" Square Hole Carriage Bolt
Bolt Center Diameter	3"
Bore Size	1" (25.4mm) - Straight Bore
Category Name	Mounted Bearings
Centerline to Front Face	0.765" (19.4mm)
Configuration	No Pilot
Housing Material	Stamped Steel
Inner Ring OD	1.375" (34.9mm)
Insert Material	52100 Bearing Steel
Insert No.	LS-116
Locking Type	Setscrew
Lubrication	Lithium Complex NLGI 2 Grease
Manufacturer	Regal Rexnord
Misalignment	±1.5° Misalignment - Static Only

Model Number	SSF3TS-116
Other Factors	Zone-Hardened
Outer Diameter	3.125" (79.4mm)
Overall Width	2.75" (69.9mm)
Part Quantity	1
Parts Series	Light Duty
Part Type	Mounted Ball Bearings
Product Notes	Stamped steel housing with bearing insert; Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews; Single lip contact seal;
Quick Specs	Mounted Stamped Steel Three Bolt Flange Ball Bearing - 52100 Bearing Steel - Setscrew Lock
Radial Dynamic Load Capacity	2801 lbs
RETAINER	Molded fiber glass reinforced nylon Ball Riding Retainer
Rolling Element	Ball Bearing
Speed (RPM)	3500 Maximum
Type	Single Lip Contact Seal
UPC	662460337326

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
