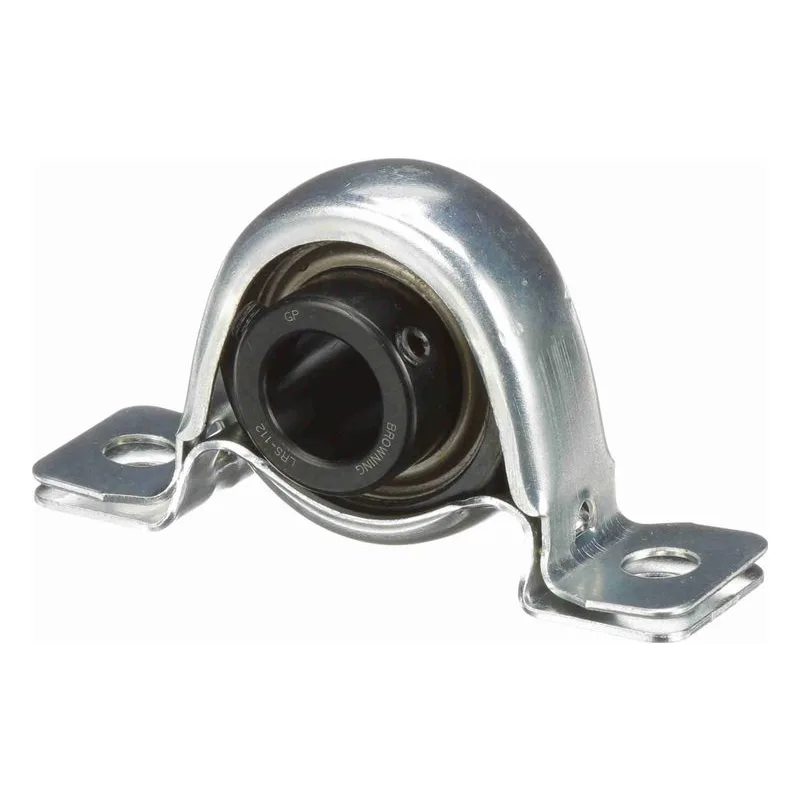

Browning 767114, Mounted Stamped Steel Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel - Setscrew Lock, Catalog Number: SSRPS-112. 0.75" (19.1mm) Straight Bore, Intermediate Duty, 2.203" (56mm) Height, 4.25" (108mm) Length. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Stamped steel housing with bearing insert in rubber grommet. Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews. Single lip contact seal.

$72.74

Best Price Guarantee!
14PumpPoints

Item: 767114 | Model #: SSRPS-112

Overview
Series Info
Reviews

767114

Base to Center Height	1.125"
Base Width	1.25"
Bearing Housing	Black Oxided Two Piece Pillow Block, Two Bolt
Bearing Insert Coating	Uncoated
BOLT	0.375"
Bolt Center Max	3.375"
Bolt Center Min	3.375"
Bolt Center to Center Length	3.375" (85.7mm)
Bore Size	0.75" (19.1mm) - Straight Bore
Category Name	Mounted Bearings
Centerline to Front Face	0.813" (20.7mm)
FOOT HEIGHT	0.125" (3.2mm)
Housing Material	Stamped Steel
Inner Race Length	1.219" (31mm)
Inner Ring OD	1.188" (30.2mm)
Insert Material	52100 Bearing Steel
Insert No.	SSRPS-112
Locking Type	Setscrew

Lubrication	Lithium Complex NLGI 2 Grease
Manufacturer	Regal Rexnord
Misalignment	±1.5° Misalignment - Static Only
Model Number	SSRPS-112
Overall Height	2.203" (56mm)
OVR LENGTH	4.25" (108mm)
Part Quantity	1
Parts Series	Intermediate Duty
Part Type	Mounted Ball Bearings
Product Notes	Stamped steel housing with bearing insert in rubber grommet.; Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews; Single lip contact seal;
Quick Specs	Mounted Stamped Steel Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel - Setscrew Lock
Radial Dynamic Load Capacity	250 lbs
RETAINER	Molded fiber glass reinforced nylon Ball Riding Retainer
Rolling Element	Ball Bearing
Speed (RPM)	4000 Maximum
Type	Single Lip Contact Seal
UPC	662460343075

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
