• VTWE-124 Browning 766860 Mounted Ball Bearing, 1.5" Bore

Image shown may not be actual product

Browning

766860

0 reviews

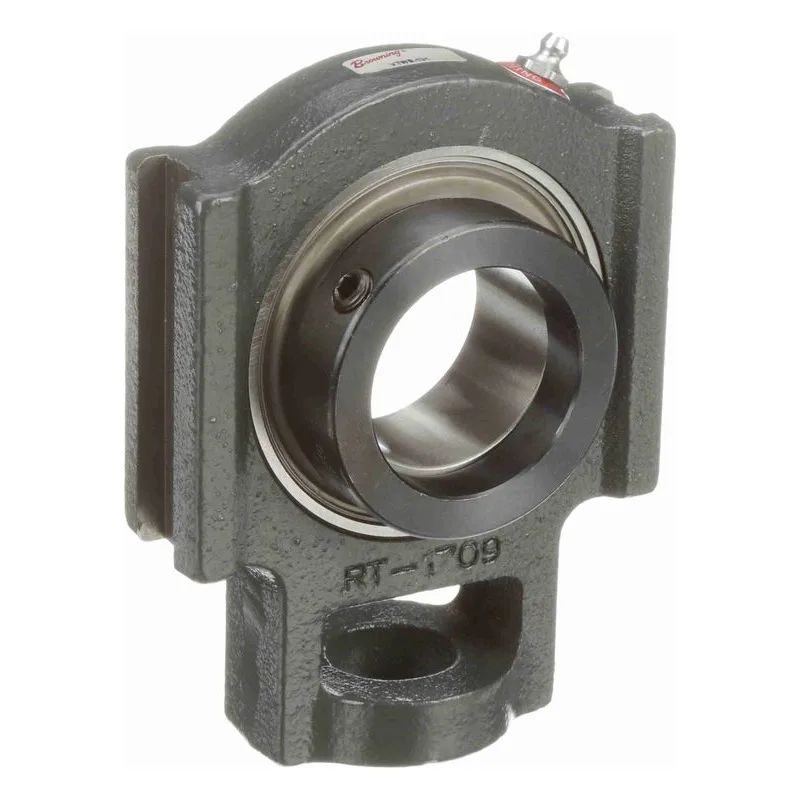

Browning 766860, Mounted Cast Iron Wide Slot Take Up Ball Bearing - 52100 Bearing Steel - Eccentric Lock, Catalog Number: VTWE-124. 1.5" (38.1mm) Straight Bore, Intermediate Duty, 4.5" (114.3mm) Height, 5.594" (142.1mm) Length, 1.938" (49.2mm) Width. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Powder coat epoxy cast iron housing. Eccentric locking designed for locking in direction of rotation. Single lip contact seal.

Item: 766860 | Model #: VTWE-124

766860

Browning 766860, Mounted Cast Iron Wide Slot Take Up Ball Bearing - 52100 Bearing Steel - Eccentric Lock, Catalog Number: VTWE-124. 1.5" (38.1mm) Straight Bore, Intermediate Duty, 4.5" (114.3mm) Height, 5.594" (142.1mm) Length, 1.938" (49.2mm) Width. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Powder coat epoxy cast iron housing. Eccentric locking designed for locking in direction of rotation. Single lip contact seal.

Bearing HousingGray One Piece Take Up, Wide Slot
Bearing Insert CoatingUncoated
Bore Size1.5" (38.1mm) - Straight Bore
Category NameMounted Bearings
Centerline to Front Face1.281" (32.5mm)
Collar OD2.375" (60.3mm)
Frame TypeCenter Pull Wide Slot
Housing Bolt Through Hole1.125"
Housing MaterialCast Iron
Housing Width2.125" (54 mm)
Insert Material52100 Bearing Steel
Insert No.VE-124
Locking TypeEccentric
LubricationLithium Complex NLGI 2 Grease
ManufacturerRegal Rexnord
Misalignment±1.5° Misalignment - Static Only
Model NumberVTWE-124
Overall Height4.5" (114.3mm)
Overall Width1.938" (49.2mm)
OVR LENGTH5.594" (142.1mm)
Part Quantity1
Parts SeriesIntermediate Duty
Part TypeMounted Ball Bearings
Product NotesPowder coat epoxy cast iron housing; Eccentric locking designed for locking in direction of rotation; Single lip contact seal;
Quick SpecsMounted Cast Iron Wide Slot Take Up Ball Bearing - 52100 Bearing Steel - Eccentric Lock
Radial Dynamic Load Capacity7340 lbs
RETAINERMolded fiber glass reinforced nylon Ball Riding Retainer
Rolling ElementBall Bearing
Speed (RPM)2500 Maximum
TypeSingle Lip Contact Seal
UPC662460339603

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications

85% Standard Products

  • Air Handling
  • Material Handling
  • Packaging
  • General Industrial MRO

15% Custom Products

  • Food & Beverage
General Description

Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads.

  • 100 – Intermediate Duty
  • 200 – Normal Duty
  • 300 – Medium Duty

Locking – Browning offers three types of shaft locking devices:

  • Set Screw
  • BOA Concentric – All New Browning 360° Grip
  • Eccentric

Materials – Ball Bearing offered by Browning come in many different housings.

  • Cast Iron
  • Nickle Plated Cast Iron
  • Ductile Iron
  • Rubber Grommeted
  • Stamped Steel
