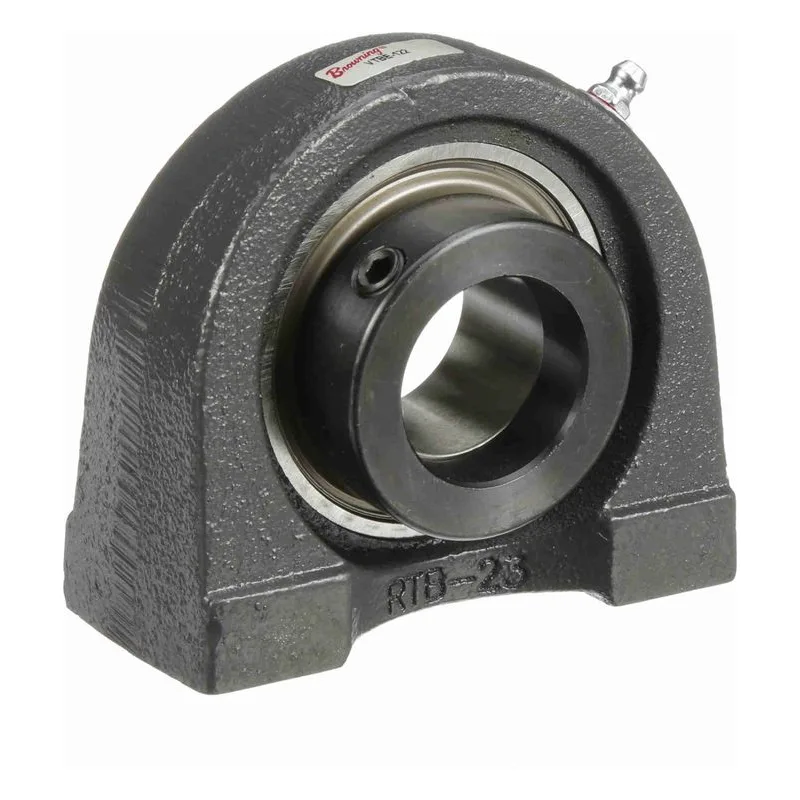

Image shown may not be actual product

766817

0 reviews

Browning 766817, Mounted Cast Iron Tapped Base Pillow Block Ball Bearing - 52100 Bearing Steel - Eccentric Lock, Catalog Number: VTBE-112. 0.75" (19.1mm) Straight Bore, Intermediate Duty, 2.563" (65.1mm) Height, 2.875" (73mm) Length. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Powder coat epoxy cast iron housing. Eccentric locking designed for locking in direction of rotation. Single lip contact seal.

Call for Pricing

Best Price Guarantee!

Item: 766817 | Model #: VTBE-112

Overview
Series Info
Reviews

766817

Base to Center Height	1.313"
Base Width	2.875"
Bearing Housing	Gray One Piece Pillow Block, Tapped Base
Bearing Insert Coating	Uncoated
Bolt Center to Center Length	2" (50.8mm)
Bore Size	0.75" (19.1mm) - Straight Bore
Category Name	Mounted Bearings
Centerline to Front Face	0.922" (23.4mm)
Collar OD	1.313" (33.4mm)
Housing Base	Semi-Solid
Housing Material	Cast Iron
Insert Material	52100 Bearing Steel
Insert No.	VE-112
Locking Type	Eccentric
Lubrication	Lithium Complex NLGI 2 Grease
Manufacturer	Regal Rexnord
Misalignment	±1.5° Misalignment - Static Only

Model Number	VTBE-112
Overall Height	2.563" (65.1mm)
OVR LENGTH	2.875" (73mm)
Part Quantity	1
Parts Series	Intermediate Duty
Part Type	Mounted Ball Bearings
Product Notes	Powder coat epoxy cast iron housing; Eccentric locking designed for locking in direction of rotation; Single lip contact seal;
Quick Specs	Mounted Cast Iron Tapped Base Pillow Block Ball Bearing - 52100 Bearing Steel - Eccentric Lock
Radial Dynamic Load Capacity	2611 lbs
RETAINER	Molded fiber glass reinforced nylon Ball Riding Retainer
Rolling Element	Ball Bearing
Shaft Size	1.313" (33.4mm)
Speed (RPM)	4000 Maximum
Type	Single Lip Contact Seal
UPC	662460339351

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
