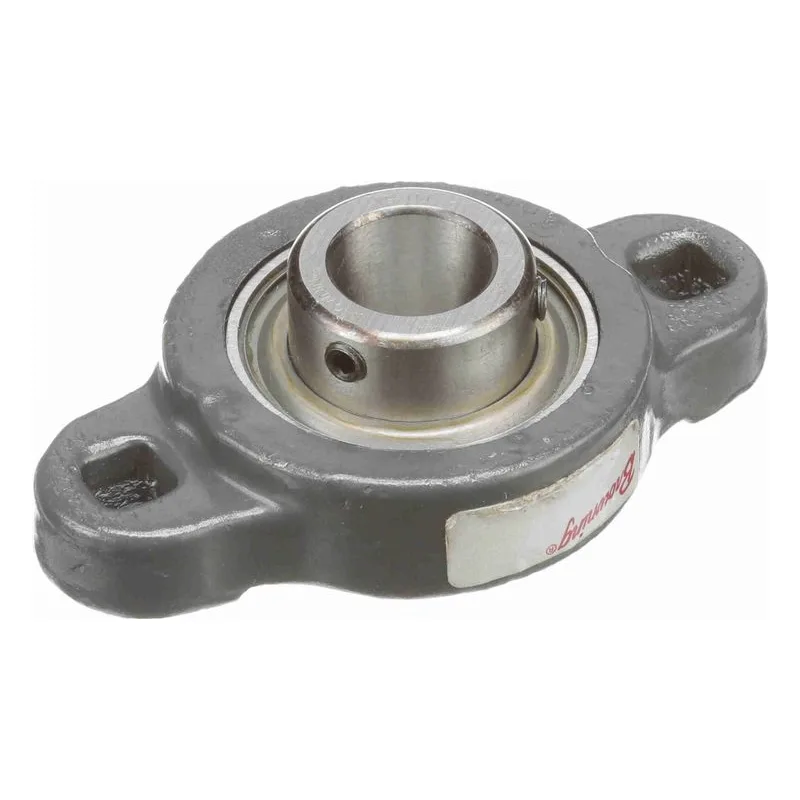

Image shown may not be actual product
766026
Browning 766026, Mounted Ductile Iron Two Bolt Flange Ball Bearing - 52100 Bearing Steel - Setscrew Lock, Catalog Number: VF2S-119M CTY. 1.188" (30.2mm) Straight Bore, Intermediate Duty, 1.266" (32.2mm) Height, 4.438" (112.7mm) Length, 2.938" (74.6mm) Width. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Powder coat epoxy cast iron housing. Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews. Single lip contact seal. Housing plugged with pipe plug for no relubrication.
- Overview
- Series Info
- Reviews
766026
Browning 766026, Mounted Ductile Iron Two Bolt Flange Ball Bearing - 52100 Bearing Steel - Setscrew Lock, Catalog Number: VF2S-119M CTY. 1.188" (30.2mm) Straight Bore, Intermediate Duty, 1.266" (32.2mm) Height, 4.438" (112.7mm) Length, 2.938" (74.6mm) Width. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Powder coat epoxy cast iron housing. Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews. Single lip contact seal. Housing plugged with pipe plug for no relubrication.
| Bearing Housing | Gray One Piece Flange, Two Bolt |
| Bearing Insert Coating | Uncoated |
| BOLT | 0.422" |
| Bolt Center to Center Length | 3.563" (90.5mm) |
| Bore Size | 1.188" (30.2mm) - Straight Bore |
| Category Name | Mounted Bearings |
| Centerline to Front Face | 0.781" (19.8mm) |
| Configuration | No Pilot |
| FOOT HEIGHT | 0.469" (11.9mm) |
| Housing Base | Semi-Solid |
| Housing Material | Ductile Iron |
| Housing Width | 0.906" (23 mm) |
| Inner Race Length | 1.156" (29.4mm) |
| Inner Ring OD | 1.594" (40.5mm) |
| Insert Material | 52100 Bearing Steel |
| Insert No. | VS-119 |
| Locking Type | Setscrew |
| Lubrication | Lithium Complex NLGI 2 Grease |
| Manufacturer | Regal Rexnord |
| Misalignment | ±1.5° Misalignment - Static Only |
| Model Number | VF2S-119M CTY |
| Other Factors | Zone-Hardened |
| Overall Height | 1.266" (32.2mm) |
| Overall Height to Inner Ring | 1.266" (32.2mm) |
| Overall Width | 2.938" (74.6mm) |
| OVR LENGTH | 4.438" (112.7mm) |
| Part Quantity | 1 |
| Parts Series | Intermediate Duty |
| Part Type | Mounted Ball Bearings |
| Product Notes | Powder coat epoxy cast iron housing; Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews; Single lip contact seal; Housing plugged with pipe plug for no relubrication; |
| Quick Specs | Mounted Ductile Iron Two Bolt Flange Ball Bearing - 52100 Bearing Steel - Setscrew Lock |
| Radial Dynamic Load Capacity | 4381 lbs |
| RETAINER | Molded fiber glass reinforced nylon Ball Riding Retainer |
| Rolling Element | Ball Bearing |
| Speed (RPM) | 3000 Maximum |
| Type | Single Lip Contact Seal |
| UPC | 662460411422 |
Mounted Ball Bearings Information
| Product Type |
|---|
| Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks. |
| Markets & Applications |
85% Standard Products
15% Custom Products
|
| General Description |
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads.
Locking – Browning offers three types of shaft locking devices:
Materials – Ball Bearing offered by Browning come in many different housings.
|
