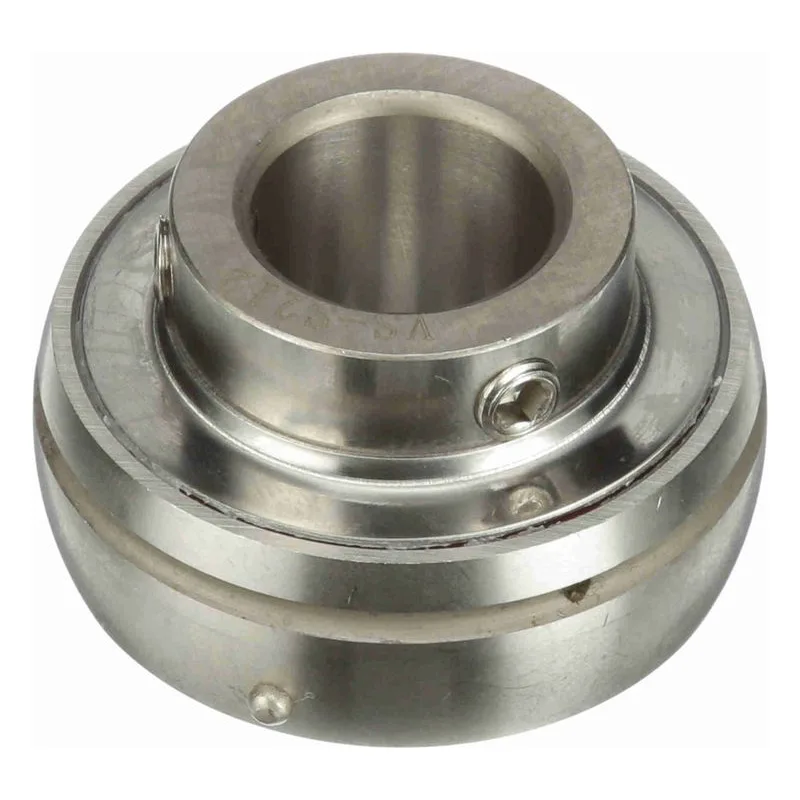

Image shown may not be actual product

764500

0 reviews

Browning 764500, Mounted insert Only Ball Bearing - 400 Series Stainless Steel - SS Setscrew Lock - Corrosion Resistant, Catalog Number: VS-S222. 1.375" (34.9mm) Straight Bore, Standard Duty, 1.688" (42.9mm) Width. Stainless Steel Riveted Ball Riding Retainer. 440C Stainless Steel bearing insert setscrew lock. Molded silicone single lip contact seal with 300 series stainless steel flinger. H1 Food Grade grease.

$258.92

Best Price Guarantee!
51PumpPoints

Item: 764500 | Model #: VS-S222

Overview
Series Info
Reviews

764500

Bearing Housing	Insert Only
Bearing Insert Coating	Uncoated
Bore Size	1.375" (34.9mm) - Straight Bore
Category Name	Mounted Bearings
Centerline to Front Face	1" (25.4mm)
Inner Race Length	1.688" (42.9mm)
Inner Ring OD	1.859" (47.2mm)
Insert Material	400 Series Stainless Steel
Locking Type	SS Setscrew
Lubrication	NSF H1 Food Grade Grease
Manufacturer	Regal Rexnord
Misalignment	±1.5° Misalignment - Static Only
Model Number	VS-S222
Options	Corrosion Resistant
Other Factors	Zone-Hardened
Outer Race OD	2.835" (72mm)
Outer Race Width	0.781" (19.8mm)

Overall Width	1.688" (42.9mm)
Part Quantity	1
Parts Series	Standard Duty
Part Type	Mounted Ball Bearings
Product Notes	440C Stainless Steel bearing insert setscrew lock; Molded silicone single lip contact seal with 300 series stainless steel flinger; H1 Food Grade grease;
Quick Specs	Mounted insert Only Ball Bearing - 400 Series Stainless Steel - SS Setscrew Lock - Corrosion Resistant
Radial Dynamic Load Capacity	5782 lbs
Radius	0.04" (1mm)
RETAINER	Stainless Steel Riveted Ball Riding Retainer
Rolling Element	Ball Bearing
Set Screw Thread	5/16-24
Speed (RPM)	4000 Maximum
Style	CRES SS
Type	Single Lip Contact Seal with Flinger
UPC	662460497396

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
