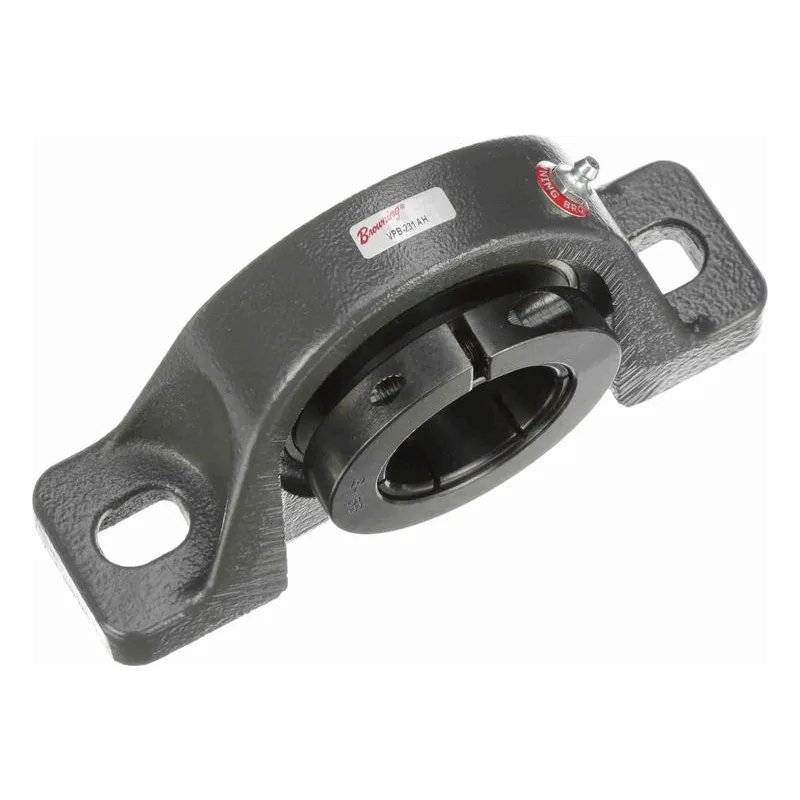

Image shown may not be actual product

764060

0 reviews

Browning 764060, Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided Inner - Concentric Lock - Air Handling Housing Fit, Noise Tested, Catalog Number: VPB-231 AH. 1.938" (49.2mm) Straight Bore, Standard Duty, 4.563" (115.9mm) Height, 8" (203.2mm) Length. Molded Fiber Glass Reinforced Nylon Ball Riding Retainer. Powder coat epoxy cast iron housing. BOA Concentric locking for near perfect concentricity. Single lip contact seal and flinger. Air Handling noise check for quiet operation. Looser than standard housing fit for ease of alignment on lightweight frames.

$172.33

Best Price Guarantee!
34PumpPoints

Item: 764060 | Model #: VPB-231 AH

Overview
Series Info
Reviews

764060

Base to Center Height	2.25"
Base Width	2.188"
Bearing Housing	Gray One Piece Pillow Block, Two Bolt
Bearing Insert Coating	Black Oxide Coated Inner Ring
BOLT	0.625"
Bolt Center Max	6.5"
Bolt Center Min	5.875"
Bolt Center to Center Length	5.875" - 6.5"
Bore Size	1.938" (49.2mm) - Straight Bore
Category Name	Mounted Bearings
Centerline to Front Face	1.344" (34.1mm)
Collar OD	3.375" (85.7mm)
FOOT HEIGHT	0.75" (19.1mm)
Housing Base	Semi-Solid
Housing Material	Cast Iron
Housing Width	2.188" (55.6 mm)
Inner Race Length	2.094" (53.2mm)
Insert Material	52100 Bearing Steel, Black Oxided Inner
Insert No.	VB-231AH
Locking Type	Concentric

Lubrication	Lithium Complex NLGI 2 Grease
Manufacturer	Regal Rexnord
Misalignment	±1.5° Misalignment - Static Only
Model Number	VPB-231 AH
Options	Air Handling Housing Fit, Noise Tested
Overall Height	4.563" (115.9mm)
OVR LENGTH	8" (203.2mm)
Part Quantity	1
Parts Series	Standard Duty
Part Type	Mounted Ball Bearings
Product Notes	Powder coat epoxy cast iron housing; BOA Concentric locking for near perfect concentricity; Single lip contact seal & flinger; Air Handling noise check for quiet operation; Looser than standard housing fit for ease of alignment on lightweight frames;
Quick Specs	Mounted Cast Iron Two Bolt Pillow Block Ball Bearing - 52100 Bearing Steel, Black Oxided Inner - Concentric Lock - Air Handling Housing Fit, Noise Tested
Radial Dynamic Load Capacity	7889 lbs
RETAINER	Molded fiber glass reinforced nylon Ball Riding Retainer
Rolling Element	Ball Bearing
Speed (RPM)	3000 Maximum
Style	Air Handling
Type	Single Lip Contact Seal with Flinger
UPC	662460347776

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
