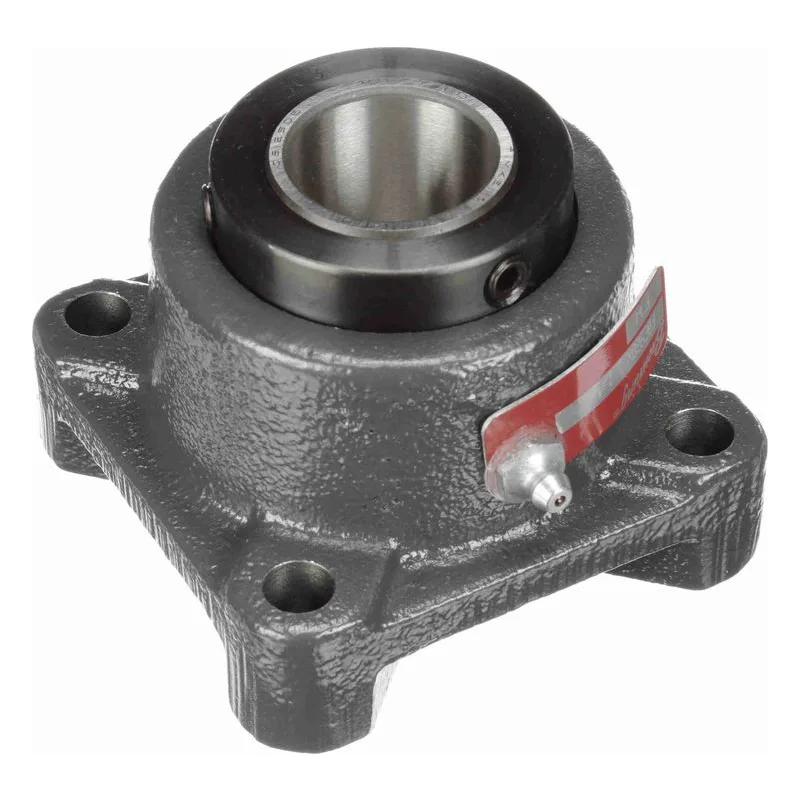

Image shown may not be actual product

730020

0 reviews

Browning 730020, Mounted Cast Iron Four Bolt Flange Tapered Roller - 52100 Bearing Steel - Double Collar Mount Lock, Catalog Number: FBE920X 1 1/4. 1.25" (31.8mm) Straight Bore, Standard Duty, 2.844" (72.2mm) Height, 3.75" (95.3mm) Length, 2.84" (72.1mm) Width, Steel Retainer. Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading. Single lip contact face-riding seals rotate with the shaft. Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews. Powder coat epoxy 2-bolt cast iron housing.

$220.98

Best Price Guarantee!
43PumpPoints

Item: 730020 | Model #: FBE920X 1 1/4

Overview
Series Info
Reviews

730020

Bearing Housing	Gray One Piece Flange, Four Bolt
Bearing Insert Coating	Uncoated
BOLT	0.375"
Bolt Center Diameter	4.06"
Bolt Center to Center Length	2.875" (73mm)
Bore Size	1.25" (31.8mm) - Straight Bore
Category Name	Mounted Bearings
Centerline to Front Face	1.421" (36.1mm)
Collar OD	2.25" (57.2mm)
Configuration	No Pilot
FOOT HEIGHT	1.031" (26.2mm)
Housing Base	Solid
Housing Material	Cast Iron
Housing Width	3.75" (95.3 mm)
Inner Race Length	2.75" (69.9mm)
Insert Material	52100 Bearing Steel
Locking Type	Double Collar Mount
Lubrication	Lithium; EP; NLGI#2
Manufacturer	Regal Rexnord

Misalignment	None
Model Number	FBE920X 1 1/4
Other Factors	Case Carburized Inner Ring
Overall Height	2.844" (72.2mm)
Overall Width	2.84" (72.1mm)
OVR LENGTH	3.75" (95.3mm)
Part Quantity	1
Parts Series	Standard Duty
Part Type	Mounted Tapered Roller Bearings
Product Notes	Heavy duty tapered roller bearings with steel cage for radial, thrust & combined loading; Single lip contact face-riding seals rotate with the shaft; Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews; Powder coat epoxy 2-bolt cast iron housing;
Quick Specs	Mounted Cast Iron Four Bolt Flange Tapered Roller - 52100 Bearing Steel - Double Collar Mount Lock
Radial Dynamic Load Capacity	2975 lbs
RETAINER	Steel
Rolling Element	Tapered Roller
Speed (RPM)	3500 Maximum
Style	Type E
Type	Single Lip Contact Seal
UPC	662289438600

Mounted Ball Bearings Information

Product Type
Bearings, Mounted Ball Bearing. Pillow Block, Flange Block, Take-Up Block & Assembly, Hanger Unsits & Cartridge Blocks.
Markets & Applications
85% Standard Products Air Handling Material Handling Packaging General Industrial MRO 15% Custom Products Food & Beverage
General Description
Browning Ball Bearings are segmented into three series ranging from intermediate duty for lightly loaded applications to medium duty for heavier loads. 100 – Intermediate Duty 200 – Normal Duty 300 – Medium Duty Locking – Browning offers three types of shaft locking devices: Set Screw BOA Concentric – All New Browning 360° Grip Eccentric Materials – Ball Bearing offered by Browning come in many different housings. Cast Iron Nickle Plated Cast Iron Ductile Iron Rubber Grommeted Stamped Steel
