200809

Image shown may not be actual product

200809

0 reviews

BJM Pumps 200809 SKXF Series High Temperature, Corrosion-Resistant Solids-Handling Shredder Pump, Model: SKX22CSSF. 3 HP (Horsepower), 575V, 2 Pole, 60 Hz, 3 Phase (3 Ph), 3450 RPM Motor. Car/SilCar/FKM & SilCar/SilCar/FKM Dual Mechanical Seal, 4.45" 316 Stainless Steel, Tungsten Carbide Tipped Impeller, with 3" NPT Male Discharge Connections. 283 GPM (Gallons Per Minute) Maximum Flow, Heads to 48 ft., 200°F Maximum Liquid Temperature, and 1.6" Maximum Solids Handling. An Industrial Flow Solutions Brand Product.

$14,802.12

Best Price Guarantee!
2960PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 200809 | Model #: SKX22CSSF

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

200809

Build	316 Stainless Steel Volute
Built in Overload Protection	Thermal Sensor Switches Embedded in Each Winding Phase, 300°F (149°C)
Cable Length	33 ft. (10 m)
Configuration	3" Stainless Steel Slide Rail
Connections / Discharge (Inches)	3" NPT Male
Connection Size	3"
Connection Type	NPT Male
Elastomer	FKM
Full Load Amp (FLA)	3.2

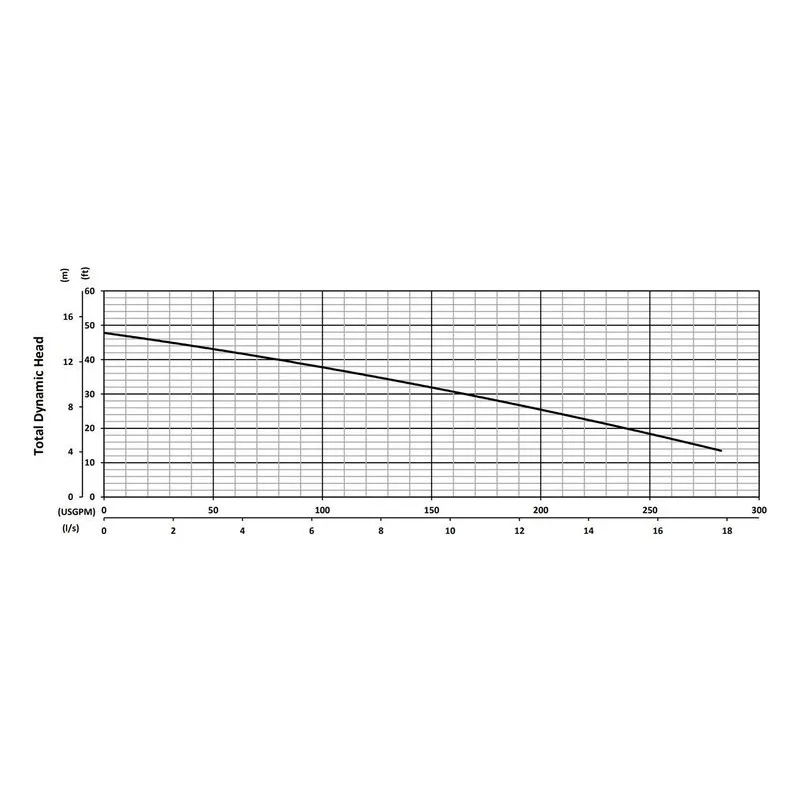

Heads To (Feet)	48 ft. (14.6 m)
HP	3 HP
Hz	60 Hz
Impeller Material	316 Stainless Steel w/ Tungsten Carbide Shredder Blade
Impeller Size(Inches)	4.45" (113 mm)
Impeller Style	Tungsten Carbide Tipped Impeller
Includes	Built-In Thermal Protection, Integrated Removable Pump Stand, Heavy Duty Lifting Rings
Insulation Class	R, 428°F (220°C)
Liquid Temperature	200°F (93°C)

Material	316 Stainless Steel
Maximum Flow (GPM)	283 GPM (1071.3 LPM)
Model Number	SKX22CSSF
Motor Housing Material	316 Stainless Steel
Motor Type	Submersible Oil Filled, Continuous Duty
Options	Seal Minder® Moisture Detection System
Phase	3 Ph (Three Phase)
Pole	2 Pole
Service Factor	1.1
Shaft Seal Material	Carbon / Silicon Carbide / FKM & Silicon Carbide / Silicon Carbide / FKM
Shaft Seal Type	Dual Mechanical Seal
Solids (Inches)	1.6" (40.6 mm)
Speed (RPM)	3450 RPM
Type	Solids Handling, Non-Clog Shredder, High Temp
Valve / Seat / O-Ring	FKM O-Rings
Voltage	575V

SKXF Series High Temperature, Corrosion-Resistant Solids-Handling Shredder Pumps Information

Features & Benefits

The SKXF Series is designed to provide reliable performance in challenging wastewater applications requiring shredding capability, corrosion resistance, and high temperature operation. The combination of stainless steel construction and integrated shredding technology allows the pump to process difficult solids while maintaining durability in aggressive environments.

Construction and Materials

The SKXF Series uses 316 stainless steel for all major wetted components, including the motor housing, volute, and suction cover. This provides consistent corrosion resistance without the need for coatings. The shredding system incorporates tungsten carbide cutting elements for wear resistance. Dual mechanical seals operate in an oil-filled chamber and use FKM elastomers to maintain sealing integrity at elevated temperatures.

Hydraulic and Pump Design

The pump utilizes a non-clog shredding impeller system designed to process solids prior to discharge. This reduces clogging and allows efficient handling of fibrous or debris-laden fluids. Depending on the model, the pump can handle solids up to approximately 3.5 inches. The design supports both free-standing and guide rail installation configurations.

Motor and Operational Design

The SKXF Series is equipped with oil-filled submersible motors designed for high temperature operation. Motors are protected by embedded thermal sensor switches that monitor winding temperature and automatically shut down the pump if limits are exceeded. Class R insulation supports operation in extreme thermal conditions. Seal Minder® moisture detection provides early warning of seal failure.

Model Variations

The SKXF Series includes a full range of models to meet varying system requirements. Smaller units such as the SKX08CSSF and SKX750CSSF provide compact solutions for lower flow applications. Mid-range models including the SKX15CSSF, SKX22CSSF, and SKX37CSSF offer increased performance for general systems. Larger units such as the SKX55CSSF, SKX75CSSF, SKX110CSSF, and SKX150CSSF deliver high flow and head capabilities for demanding installations. The SKX1500CSSF provides a single-phase option for applications where three-phase power is not available.

Design Characteristics

Pump Type: Submersible high temperature corrosion-resistant shredder pump

Hydraulics: Non-clog shredding impeller system

Solids Handling: Up to approximately 3.5 inches

Motor Design: Oil-filled two-pole and four-pole motors

Cooling Method: Oil-filled motor with high temperature liquid environment

Installation: Free-standing or guide rail mounted

Protection: Thermal sensors with moisture detection system

Technical Summary

Power Range: 1 HP – 20 HP

Flow Capacity: Up to ~874 GPM

Head Range: Up to ~105 ft

Solids Handling: Up to ~3.5 inch

Temperature Capability:Up to ~200°F (93°C)

Motor Speed: ~1750 / ~3450 RPM

Typical Services & Applications

The SKXF Series is used in applications where liquids are both hot and corrosive while containing solids that must be processed. Typical environments include industrial processing systems, heated wastewater discharge, food production, and chemical handling applications where pump reliability is critical.
