201651

Image shown may not be actual product

201651

0 reviews

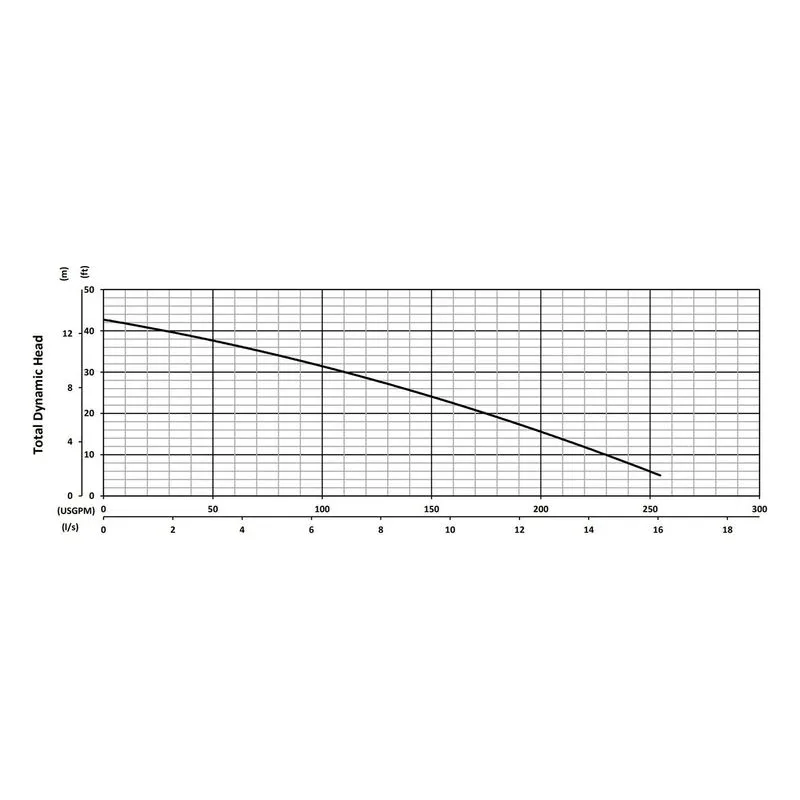

BJM Pumps 201651 SKF Series High Temperature Shredder Pump, Model: SK1500CF. 2 HP (Horsepower), 230V, 2 Pole, 60 Hz, 1 Phase (1 Ph), 3450 RPM Motor. Car/SilCar/FKM & SilCar/SilCar/FKM Dual Mechanical Seal, 4.25" Ductile Iron, Tungsten Carbide Tipped Impeller, with 3" NPT Male Discharge Connections. 255 GPM (Gallons Per Minute) Maximum Flow, Heads to 43 ft. and 200°F Maximum Liquid Temperature. An Industrial Flow Solutions Brand Product.

$8,408.15

Best Price Guarantee!
1681PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 201651 | Model #: SK1500CF

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

201651

Build	Cast Iron Volute
Built in Overload Protection	Thermal Sensor Switches Embedded in Each Winding Phase, 300°F (149°C)
Cable Length	50 ft. (15 m)
Configuration	3" Cast Iron Slide Rail
Connections / Discharge (Inches)	3" NPT Male
Connection Size	3"
Connection Type	NPT Male
Elastomer	FKM
Full Load Amp (FLA)	16
Heads To (Feet)	43 ft. (13.1 m)
HP	2 HP
Hz	60 Hz
Impeller Material	Ductile Iron w/ Tungsten Carbide Shredder Blade
Impeller Size(Inches)	4.25" (108 mm)
Impeller Style	Tungsten Carbide Tipped Impeller
Includes	Built-In Thermal Protection, Integral Pump Stand, Heavy Duty Lifting Rings
Insulation Class	R, 428°F (220°C)

Liquid Temperature	200°F (93°C)
Maximum Flow (GPM)	255 GPM (965.3 LPM)
Model Number	SK1500CF
Motor Housing Material	304 Stainless Steel
Motor Type	Submersible Oil Filled, Continuous Duty
Options	Seal Minder® Moisture Detection System
Phase	1 Ph (Single Phase)
Pole	2 Pole
Service Factor	1.15
Shaft Seal Material	Carbon / Silicon Carbide / FKM & Silicon Carbide / Silicon Carbide / FKM
Shaft Seal Type	Dual Mechanical Seal
Speed (RPM)	3450 RPM
Type	Solids Handling, Non-Clog Shredder, High Temp
Valve / Seat / O-Ring	FKM O-Rings
Voltage	230V

SKF Series High Temperature Shredder Pumps Information

Features & Benefits

The SKF Series is designed for wastewater applications requiring both solids shredding capability and high temperature operation. The integrated shredding mechanism processes difficult solids before discharge, reducing clogging risk while maintaining consistent hydraulic performance. As part of the Fahrenheit® platform, the series is engineered for reliability in continuous-duty, high heat environments.

Construction and Materials

The SKF Series utilizes cast iron hydraulic components combined with stainless steel motor elements for structural durability and corrosion resistance. The shredding system incorporates tungsten carbide cutting elements and hardened suction components to resist wear. Mechanical seals operate in an oil-filled chamber and use FKM elastomers for high temperature compatibility.

Hydraulic and Pump Design

The hydraulic design incorporates a non-clog shredding impeller system that reduces solids before discharge. This allows the pump to handle solids up to approximately 3.5 inches depending on model size. The side discharge configuration supports installation in both fixed guide rail systems and portable setups, while maintaining consistent flow performance under demanding conditions.

Motor and Operational Design

The SKF Series utilizes oil-filled submersible motors designed for high temperature environments. Motors are equipped with embedded thermal sensor switches that monitor winding temperature and interrupt operation if limits are exceeded, resetting automatically once safe conditions return. Class R insulation is used to withstand extreme heat. Seal Minder® moisture detection provides early indication of seal failure, allowing preventative maintenance before damage occurs.

Model Variations

The SKF Series spans a wide range of models to accommodate different hydraulic and system requirements. Smaller models such as the SK08CF and SK15CF provide compact solutions for lower flow systems. Mid-range models including SK22CF and SK37CF offer increased capacity, while larger units such as SK55CF, SK75CF, SK110CF, and SK150CF deliver high flow and head for demanding installations. Single-phase models such as the SK1500CF provide flexibility where three-phase power is not available.

Design Characteristics

Pump Type: Submersible high temperature shredder wastewater pump

Hydraulics: Non-clog shredding impeller system

Solids Handling: Up to approximately 3.5 inches

Motor Design: Oil-filled high temperature submersible motor

Cooling Method: Oil-filled motor with high temperature liquid environment

Installation: Free-standing or guide rail mounted

Protection: Thermal sensors and moisture detection system

Technical Summary

Power Range: 1 HP – 20 HP

Flow Capacity: Up to ~874 GPM

Head Range: Up to ~105 ft

Solids Handling: Up to ~3.5 inch

Temperature Capability: Up to ~200°F (93°C)

Motor Speed: ~1750 / ~3450 RPM

Typical Services & Applications

The SKF Series is used in high temperature wastewater applications where solids must be processed before discharge. Typical applications include industrial process systems, food production environments, heated wastewater discharge, and systems containing fibrous or clog-prone materials exposed to elevated temperatures.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	BJM Fahrenheit Series High Temperature High Endurance 1Ph Pumps Technical Brochure		View
	BJM SKF Series Dimensional Drawings		View
	BJM SKF Series SK1500CF Technical Datasheet		View
	IFS-BJM-SKF-SKXF-Series-Electric-Submersible-Shredder-Pumps-IOM		View
	BJM SKF Series Exploded Views Repair Parts Manual		View
