200714

Image shown may not be actual product

200714

0 reviews

BJM 200714 KZNF Series High Temperature, Heavy Duty Abrasion-Resistant Solids Handling Pumps. Built with a 5 HP, 230V, 3 Ph (Three Phase) Motor operating at 1750 RPM. Designed with a 3" NPT-MALE Discharge size capable of a 426 GPM (1612.5 L/min) Maximum Flow and a 48 ft. (14.6m) Max Head. Constructed with a Silicon Carbide / Silicon Carbide, FKM Mechanical Seal, Cast Iron Motor Housing and HI-Chrome Impellers. An IFS Product.

$17,416.00

Best Price Guarantee!
3483PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 200714

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

200714

Cable Length	50 ft. (15m)
Discharge NPT (Inches)	3" NPT-MALE
Full Load Amp (FLA)	17 amps

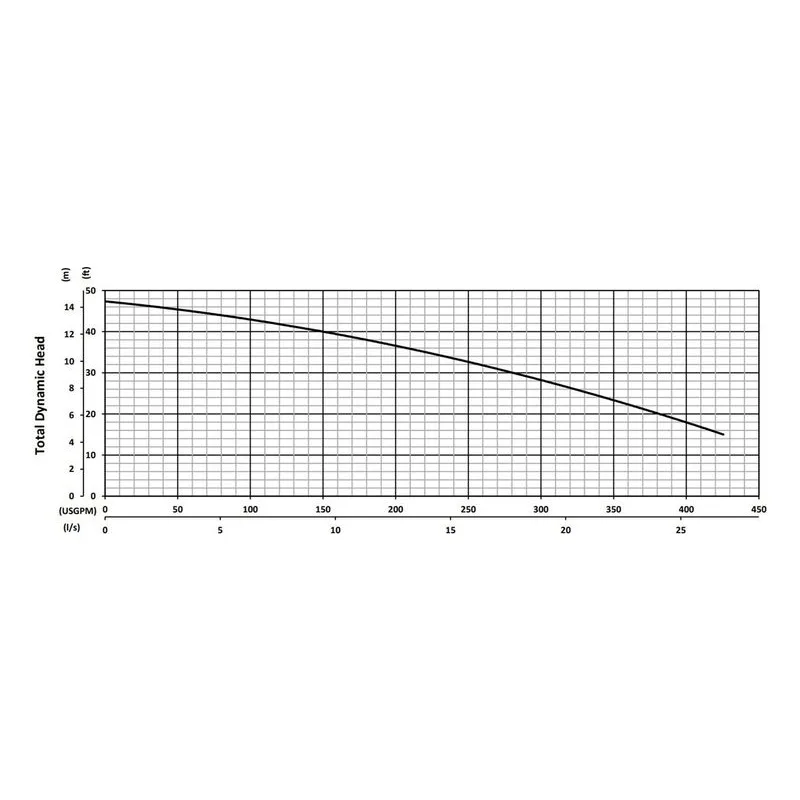

Heads To (Feet)	48 ft. (14.6m)
HP	5 HP
Hz	60 Hz
Impeller Material	HI-Chrome
Impeller Size(Inches)	7.68" (195 mm)
Includes	Seal Minder® moisture detection system
Insulation Class	R
Liquid Temperature	200°F (93°C)
Maximum Flow (GPM)	426 GPM (1612.5 L/min)

Motor Housing Material	Cast Iron
Phase	3 Ph (Three Phase)
Pole	4 Pole
Service Factor	1.15
Shaft Seal Material	Silicon Carbide / Silicon Carbide, FKM
Solids (Inches)	0.88" (22.2 mm)
Speed (RPM)	1750 RPM
Strainer Material	Steel
Type	HIGH TEMPERATURE SLURRY HANDLING, TOP DISCHARGE
Valve / Seat / O-Ring	FKM Lip Seal & O-Rings
Voltage	230V

KZNF Series High Temperature, Heavy Duty Abrasion-Resistant Solids Handling Pumps Information

Features & Benefits

The KZNF Series combines the proven abrasion resistance of the KZN platform with advanced thermal capabilities. With integrated agitation and heavy-duty materials, the pumps provide efficient solids handling even in elevated temperature environments.

Thermal protection systems and moisture detection enhance reliability, reduce maintenance costs, and extend equipment life.

Construction and Operational Design

KZNF pumps are built using Class 30 ductile iron with hardened volutes for maximum durability. Wear components—including the impeller, wear plate, and agitator—are manufactured from high chrome iron to withstand abrasive slurry conditions.

A heavy-duty agitator ensures solids remain suspended, reducing settling and improving pump efficiency.

The pumps utilize a semi-open impeller design to allow solids passage up to approximately 1.5 inches, minimizing clogging.

A dual mechanical seal system with silicon carbide faces is housed in an oil-filled chamber, providing robust sealing and long service life, even under extreme conditions.

High Temperature Motor & Protection System

The KZNF Series is equipped with a high-performance motor system specifically designed for elevated temperatures:

Class R insulation rated for high thermal limits
Oil-filled motor chamber for cooling and lubrication
Embedded thermal sensors in each phase winding
Automatic shutoff if temperatures exceed safe operating levels

The Seal Minder® system continuously monitors for moisture in the oil chamber, providing early warning of seal failure.

Design Characteristics

Hydraulic Design: Semi-open impeller for slurry handling

Abrasion Resistance: High chrome iron wear components

Agitator System: Heavy-duty 28% chrome agitator for solids suspension

Seal System: Double silicon carbide mechanical seals in oil-filled chamber

Materials of Construction: Class 30 ductile iron with hardened volute

Solids Handling: Up to approximately 1.5 inches

Motor Design: 4-pole motor (~1750 RPM) with Class R insulation

Protection Features: Thermal sensors and Seal Minder® moisture detection

Temperature Capability: Up to 200°F (93°C)

Configurations: Standard, high head (H), and high flow (L) variants

Technical Summary

Power Range: 5 HP to 30 HP

Flow Capacity: Up to ~1700 GPM

Head Range: Up to ~100+ ft

Solids Handling: Up to ~1.5 inch

Temperature Capability: Up to 200°F (93°C)

Motor Speed: ~1750 RPM

Typical Services & Ideal Applications

The KZNF Series is designed for high-temperature slurry and solids handling across a wide range of industries. Typical applications include industrial process fluids, hot wastewater, mining slurries, food processing operations, and boiler discharge handling.

These pumps excel in environments where elevated temperatures, abrasive materials, and continuous-duty operation demand a more robust and specialized solution.
