The KZN Series Advantage: Versatile Performance for Abrasive Slurries

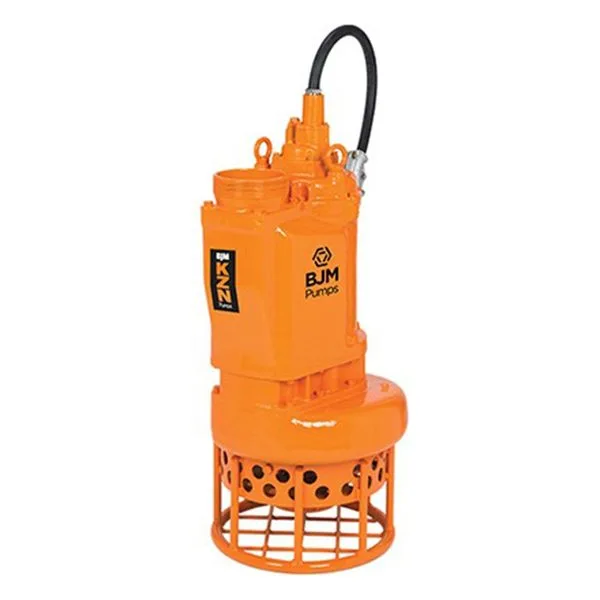

The BJM Pumps KZN Series is engineered for heavy-duty slurry, sand, and sludge applications where durability and solids handling are critical. Designed with hardened ductile iron construction and abrasion-resistant high chrome components, these pumps deliver reliable performance in demanding environments.
With a broad range from 5 HP to 50 HP, including standard, high-head (H), and high-flow (L) configurations, the KZN Series provides flexible solutions for a wide variety of industrial and construction applications.
Engineered for Abrasion Resistance and Solids Handling
The KZN Series incorporates high chrome iron components in key wear areas such as the impeller, wear plate, and agitator. These materials provide exceptional resistance to abrasion and extend pump life in harsh slurry conditions.
A built-in agitator continuously suspends solids, improving pumping efficiency and reducing clogging. The semi-open impeller design allows the pumps to handle high concentrations of abrasive solids, including particles up to approximately 1.5 inches.
Key Features & Benefits
- Abrasion-Resistant Construction: Hi-chrome iron components and hardened ductile iron volute
- Integrated Agitator: Prevents solids settling and improves slurry movement
- Flexible Performance Range: Standard, high-head (H), and high-flow (L) configurations
- High Solids Handling: Semi-open impeller passes up to ~1.5" solids
- Reliable Seal System: Double silicon carbide mechanical seals in oil-filled chamber
- Motor Protection: Built-in thermal and amperage overload protection
- Top Discharge Design: Improves motor cooling and pump-down capability
- Portable and Durable: Heavy-duty lifting rings and compact design for field applications
Built for Continuous Duty in Harsh Environments
KZN pumps are designed for continuous-duty operation in abrasive slurry environments. Class H motor insulation supports high thermal loads, while embedded thermal and overload protection safeguards the motor.
The oil-lubricated double mechanical seal system provides long-lasting protection against fluid intrusion, while heavy-duty lip seals and sealing components help prevent abrasive solids from damaging internal components.
Performance Specifications
- Horsepower (HP): 5 HP to 50 HP
- Max Flow: Up to ~2100+ GPM
- Max Head: Up to ~100+ ft
- Max Solids Handling: Up to ~1.5"
- Max Liquid Temperature: 104°F (40°C)
- Motor Speed: ~1750 RPM (4-pole)
Typical Services & Ideal Applications
The KZN Series is designed for heavy-duty slurry and dewatering applications involving abrasive solids. These pumps are commonly used in mining, quarry operations, construction dewatering, sand and gravel processing, and industrial slurry transfer.
Their combination of abrasion resistance, solids handling capability, and flexible performance options makes them a reliable solution for maintaining uptime in challenging environments.
