202832

Image shown may not be actual product

202832

0 reviews

BJM 202832 KZN-HYD Series Hydraulic, Abrasion-Resistant Solids Handling Pumps. Designed with a 6" NPT-MALE Discharge size capable of a 1148 GPM (4345.6 L/min) Maximum Flow and a 104 ft. (31.6m) Max Head. Constructed with a Silicon Carbide / Silicon Carbide, FKM Mechanical Seal, Cast Iron Motor Housing and HI-Chrome Impellers. An IFS Product.

$31,172.73

Best Price Guarantee!
6234PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 202832

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

202832

Discharge NPT (Inches)	6" NPT-MALE
Heads To (Feet)	104 ft. (31.6m)
Impeller Material	HI-Chrome
Impeller Size(Inches)	11.7" (297 mm)
Maximum Flow (GPM)	1148 GPM (4345.6 L/min)
Maximum Pressure (PSI)	2150 PSI (148.2 BAR)
Motor Housing Material	Cast Iron

Product Notes	1" NPT-FEMALE
Shaft Seal Material	Silicon Carbide / Silicon Carbide, FKM
Solids (Inches)	1.38" (34.9 mm)
Strainer Material	Steel
Type	HYDRAULIC DRIVE SLURRY HANDLING TOP DISCHARGE
Valve / Seat / O-Ring	BUNA-N Lip Seal & O-Rings

KZN-HYD Series Hydraulic, Abrasion-Resistant Solids Handling Pumps Information

Features & Benefits

The KZN‑HYD Series combines the proven abrasion resistance of the KZN platform with the flexibility of hydraulic operation. This allows operators to control pump output dynamically while maintaining durability in tough slurry conditions.

The built-in agitator ensures solids remain suspended, improving efficiency and preventing material buildup in sumps and basins.

Construction and Operational Design

KZN‑HYD pumps are constructed using ductile iron housings with abrasion-resistant high chrome iron components in the impeller, wear plate, and agitator. These materials are designed to withstand heavy wear from sand, sludge, and slurry.

The semi-open impeller allows the pump to handle high concentrations of abrasive solids while minimizing clogging.

A dual mechanical seal system with silicon carbide faces is used to provide reliable sealing in harsh conditions. The seal chamber is oil-filled for cooling and lubrication, extending seal life.

Hydraulic Drive System

The pumps are powered by hydraulic motors, allowing operation through open-center hydraulic systems. Performance is controlled by adjusting hydraulic flow and pressure:

Lower flow = reduced speed and output
Higher flow = increased speed, flow, and head

Hydraulic motors allow the pump to stall without damage and operate safely without electrical components, making them suitable for highly variable or controlled applications.

Design Characteristics

Drive System: Hydraulic motor powered by open-center hydraulic systems

Speed Control: Variable speed based on hydraulic flow input

Abrasion Resistance: High chrome iron impeller, wear plate, and agitator

Agitator System: Built-in agitator keeps solids suspended

Seal System: Oil-filled double mechanical seal with silicon carbide faces

Materials of Construction: Ductile iron

Solids Handling: Up to approximately 1–1.5 inches

Discharge Configuration: Top discharge for improved cooling and performance

Technical Summary

Hydraulic Flow Input: ~8.2 to 25 GPM

Flow Capacity: Up to ~1100+ GPM

Head Range: Up to ~100+ ft

Operating Pressure: Up to ~2200 PSI

Solids Handling: Up to ~1–1.5 inch

Discharge Size: 3" to 6"

Speed: Variable (hydraulic driven)

Typical Services & Ideal Applications

The KZN‑HYD Series is designed for demanding slurry handling in environments where flexibility, safety, and portability are essential. These pumps are commonly used in mining, dredging, industrial cleaning, emergency bypass pumping, and construction dewatering.

Their ability to operate without electricity, combined with strong abrasion resistance and solids handling capability, makes them an ideal solution for extreme and remote jobsite conditions.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	BJM KZN-HYD Series Pump Hydraulic-Driven Hard Metal Slurry Curves and Specs Brochure		View

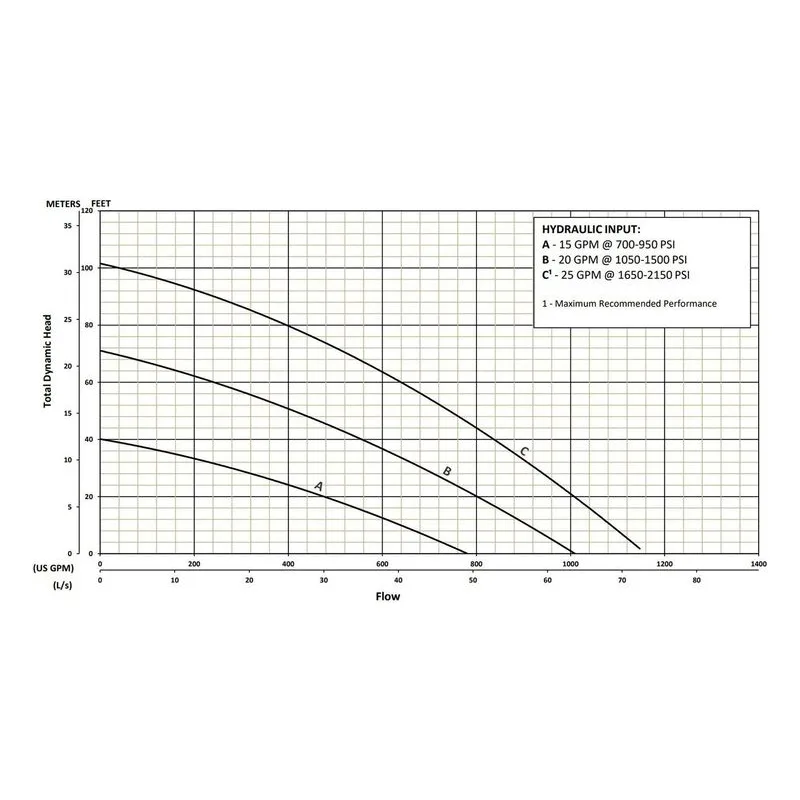

	BJM KZN-HYD6R Performance Curves Construction Technical Data Datasheet		View
	BJM KZN-HYD Series Hydraulic-Driven Hard Metal Slurry Pump Installation Operation Manual		View
	BJM KZN-HYD Series Parts List Exploded View Brochure		View
