204414

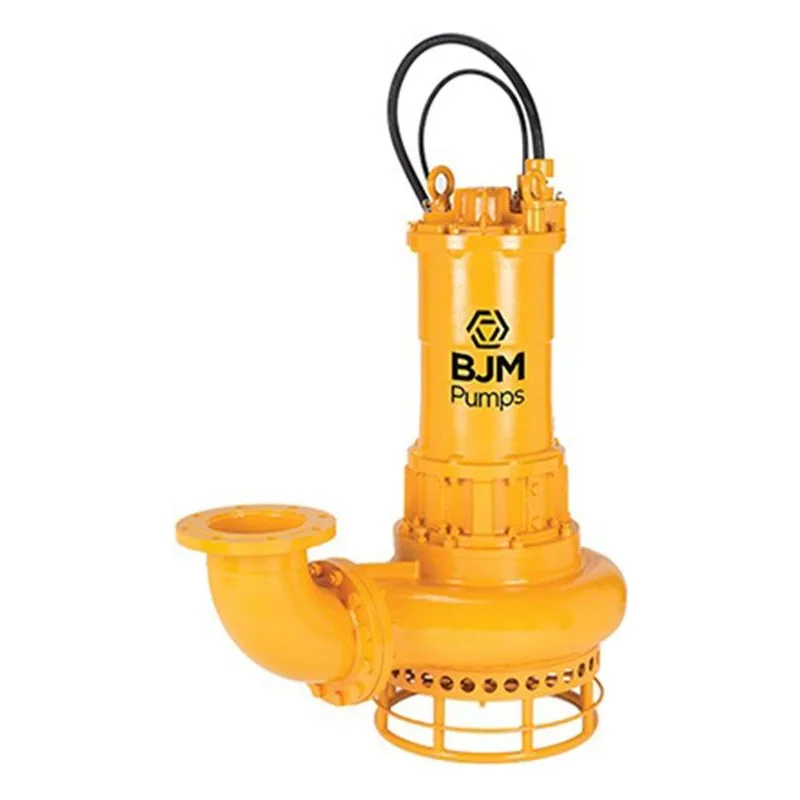

KZE Series Heavy Duty, Hard Metal Abrasion-Resistant Pump Information

Features & Benefits

The KZE Series provides high-capacity slurry pumping with superior resistance to abrasion and wear. The integrated agitator ensures solids remain suspended, improving pumping efficiency and reducing the risk of clogging.

With robust construction and advanced protection systems, these pumps deliver reliable performance in extreme operating conditions.

Construction and Operational Design

KZE pumps are constructed using cast iron housings and high chrome iron hydraulic components. The impeller, wear plate, volute, and agitator are made from hi-chrome material to maximize resistance to abrasive wear.

The pump utilizes a semi-open impeller design that allows solids to pass through without plugging, making it ideal for heavy slurry applications.

A double mechanical seal system protects the motor from fluid intrusion. The lower seal uses silicon carbide faces for abrasion resistance, while the upper seal uses carbon/ceramic materials. The seal chamber is oil-lubricated for cooling and longevity.

Additional protection is provided by heavy-duty lip seals and labyrinth rings that prevent abrasive solids from entering critical components.

Design Characteristics

Hydraulic Design: Semi-open impeller for improved solids handling

Abrasion Resistance: Hi-chrome iron components across all wear surfaces

Agitator System: Built-in hi-chrome agitator suspends solids and prevents settling

Seal System: Oil-lubricated double mechanical seal with silicon carbide lower seal

Seal Protection: Heavy-duty lip seals and labyrinth rings

Solids Handling: Capable of passing solids up to ~1–1.3 inches

Motor Design: 4-pole motor (~1750 RPM) with Class H insulation

Protection Features: Embedded thermal switches and FLA overload protection

Technical Summary

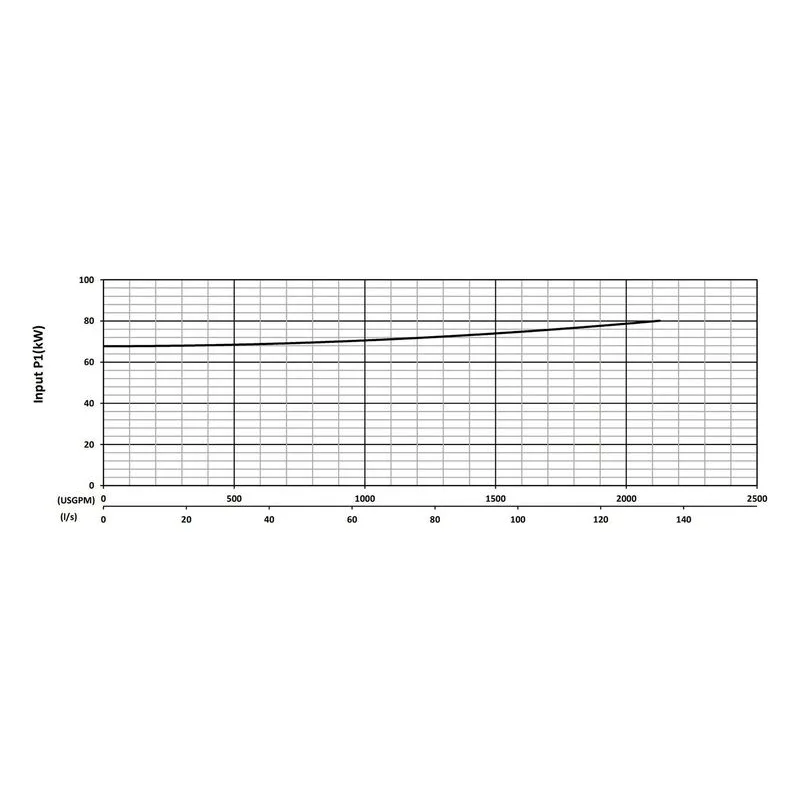

Power Range: 50 HP to 125 HP

Flow Capacity: Up to ~2400+ GPM

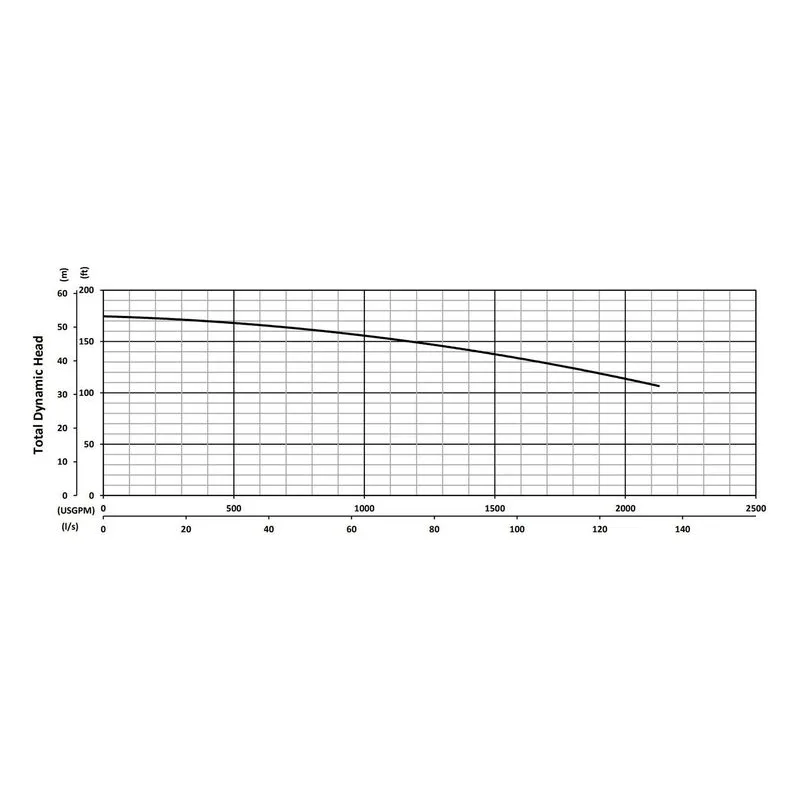

Head Range: Up to ~200+ ft

Solids Handling: Up to ~1–1.3 inches

Temperature Capability: Up to 104°F (40°C)

Motor Speed: ~1750 RPM

Typical Services & Ideal Applications

The KZE Series is designed for high-volume slurry transfer in demanding industrial environments. It is commonly used in mining, hydraulic fracturing, mineral processing, sand and gravel operations, and industrial slurry handling systems.

These pumps are ideal for applications requiring high capacity, abrasion resistance, and continuous-duty reliability.
