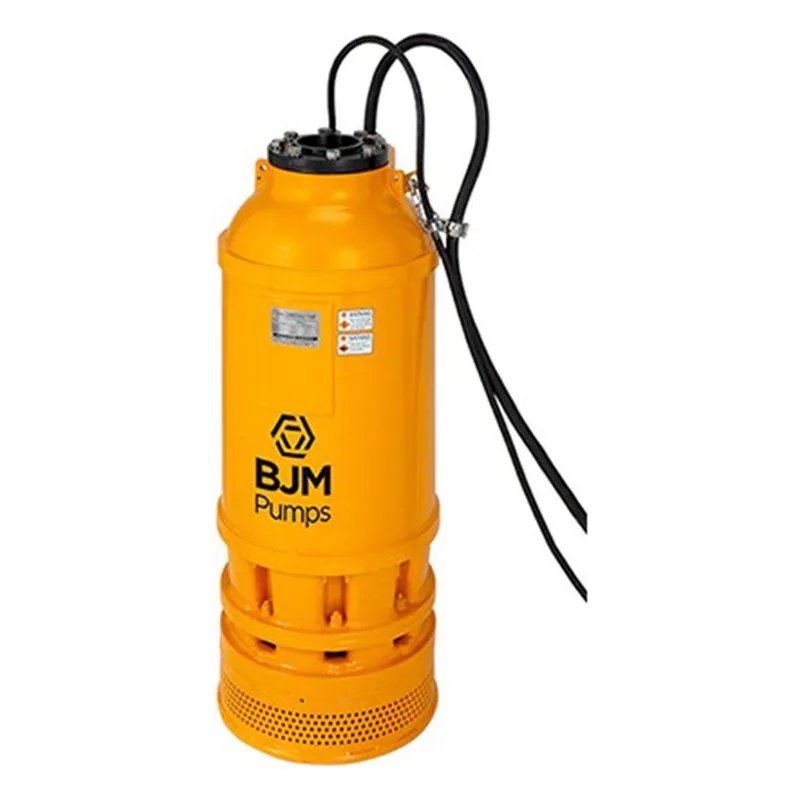

KHD / KHH Series High Flow, High Head Abrasion-Resistant Dewatering Pumps Information

Features & Benefits

The KHD/KHH Series provides powerful dewatering performance where both high flow and high head are required. The availability of both single-stage and dual-stage designs allows users to match pump performance to specific system demands.

Integrated Seal Minder® protection and thermal motor sensors enhance reliability and reduce maintenance by providing early detection of potential issues.

Construction and Operational Design

KHD/KHH pumps are constructed with a combination of cast iron, ductile iron, and high-chrome iron components. The impeller is manufactured from hi-chrome material for abrasion resistance, while the wear plate and volute are constructed from ductile iron for strength and durability.

The pumps feature a double mechanical seal system. The lower seal uses silicon carbide faces for handling abrasive fluids, while the upper seal utilizes carbon/ceramic materials. The seal chamber is oil-lubricated to improve cooling and extend seal life.

Each unit is powered by a high-speed 2-pole motor operating at approximately 3450 RPM. Class F insulation ensures reliable motor operation under demanding conditions, while embedded thermal sensors protect against overheating.

Design Characteristics

Hydraulic Design: Single-stage (KHD) for high flow, dual-stage (KHH) for extreme head performance

Head Capability: Designed for applications requiring up to approximately 400+ ft of head

Flow Capacity: Capable of delivering up to approximately 1000+ GPM

Abrasion Resistance: Hi-chrome iron impeller combined with ductile iron wear components

Seal System: Oil-lubricated double mechanical seal with silicon carbide lower seal

Discharge Configuration: Top discharge for improved cooling and pump-down performance

Solids Handling: Capable of handling solids up to 1/4 inch

Motor Design: 2-pole motor (~3450 RPM) with Class F insulation

Protection Features: Seal Minder® moisture detection and embedded thermal overload protection

Technical Summary

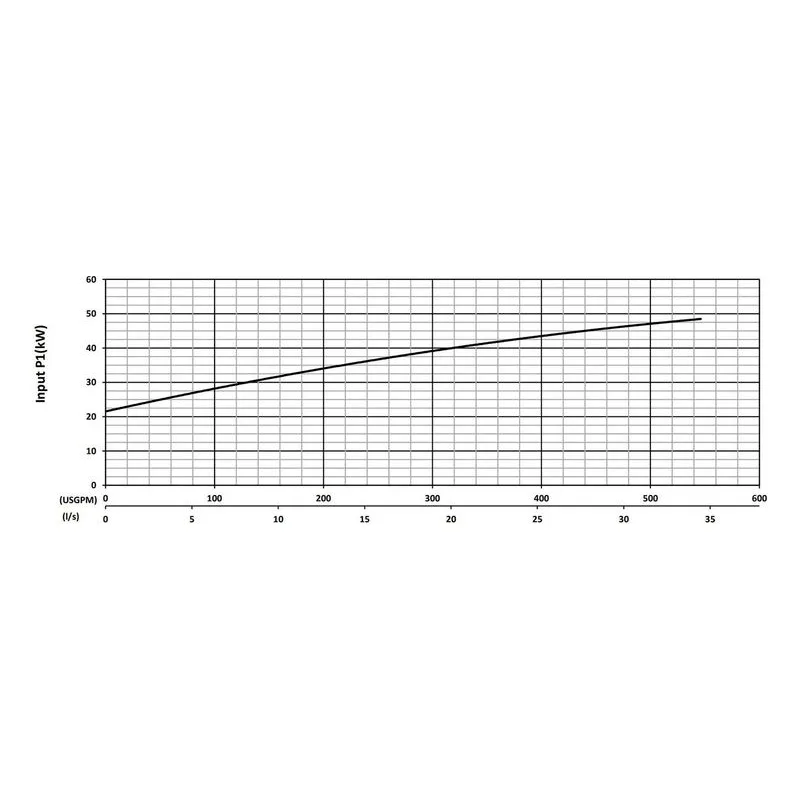

Power Range: 15 HP to 100 HP

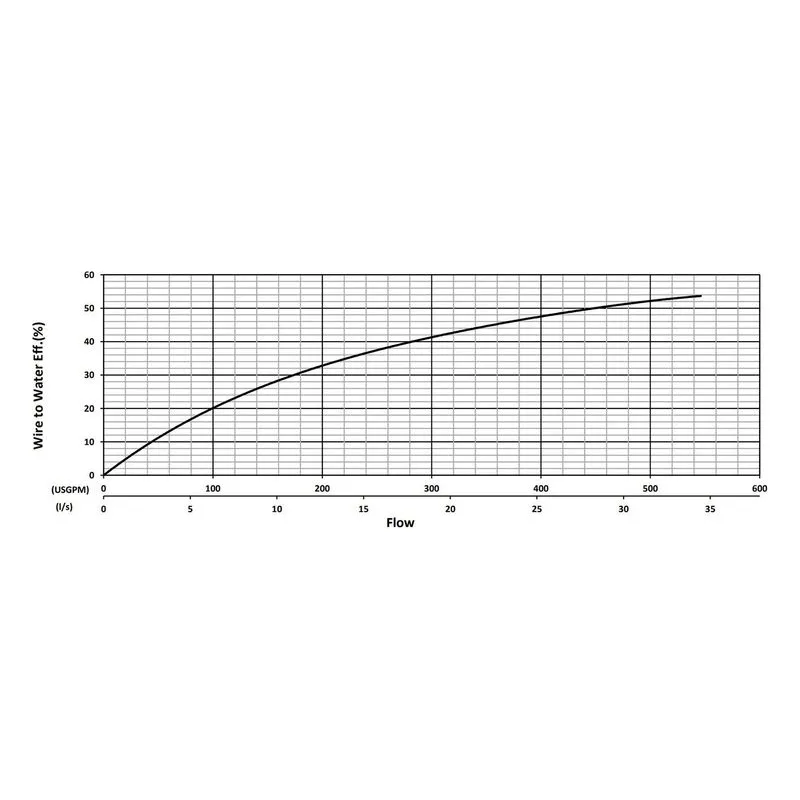

Flow Capacity: Up to ~1000+ GPM

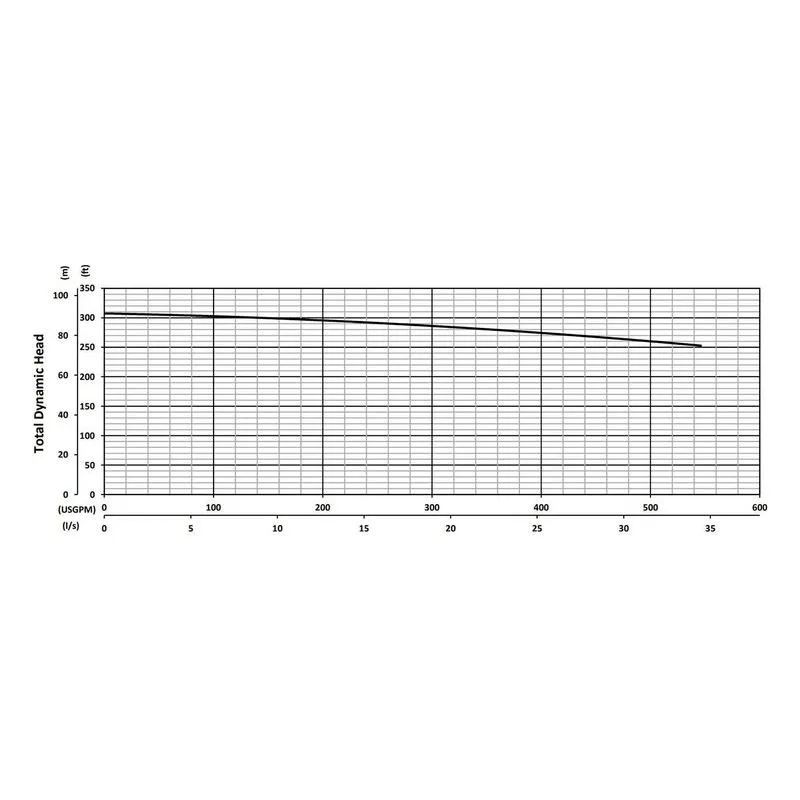

Head Range: Up to ~400+ ft

Solids Handling: Up to 1/3 inch

Temperature Capability: Up to 104°F (40°C)

Motor Speed: ~3450 RPM

Typical Services & Ideal Applications

The KHD/KHH Series is engineered for high-demand dewatering applications requiring both high flow and high discharge pressure. These pumps are commonly used in mining operations, deep excavation projects, quarry dewatering, and large-scale construction sites.

Their combination of high-performance hydraulics, abrasion-resistant construction, and robust sealing systems makes them a dependable solution for maintaining uptime in aggressive environments.
