JXH Series High Head / Corrosion Resistant Dewatering Pumps Information

Features & Benefits

The JXH Series is engineered to deliver high discharge pressure while maintaining excellent corrosion resistance. Its all 316 stainless steel construction and corrosion rating make it suitable for a wide range of aggressive liquid handling applications.

The optional Seal Minder® system enhances reliability by providing early indication of seal failure, helping to reduce downtime and maintenance costs.

Construction and Operational Design

JXH pumps are built using cast 316 stainless steel components throughout, eliminating welds and ensuring consistent corrosion resistance across all wetted parts. This design improves durability and allows the pumps to operate effectively in chemically harsh environments.

The sealing system consists of a double mechanical seal paired with an independent lip seal, providing multiple levels of protection against fluid intrusion. FKM elastomers are standard, with optional materials available for compatibility with specific applications.

Each pump is powered by a high-speed 2-pole motor running at approximately 3450 RPM. Smaller models typically feature Class F insulation, while larger units are equipped with Class H insulation for improved thermal performance. Built-in thermal protection helps safeguard the motor during operation.

Design Characteristics

Corrosion Resistance: Cast 316 stainless steel construction rated for use in aggressive environments

High Head Capability: Designed to deliver head pressures exceeding 140 feet

Discharge Configuration: Side discharge design enables flexible installation and guide rail compatibility

Seal System: Double mechanical seal with independent lip seal for enhanced protection

Materials of Construction: Fully 316 stainless steel wetted components and motor housing

Solids Handling: Capable of handling solids up to 3/8 inch

Motor Design: 2-pole motor operating at approximately 3450 RPM with Class F or Class H insulation

Protection Features: Built-in thermal protection and optional Seal Minder® moisture detection

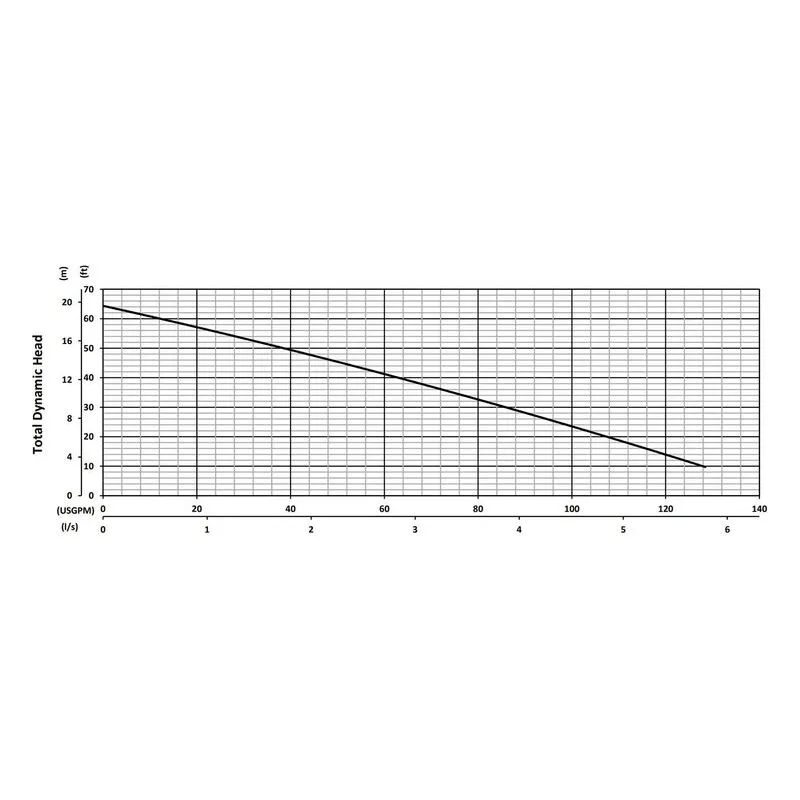

Technical Summary

Power Range: 2 HP to 10 HP

Flow Capacity: Up to ~340+ GPM

Head Range: Up to ~145+ feet

Solids Handling: Up to 3/8 inch

Temperature Capability: Up to 104°F (40°C)

Motor Speed: ~3450 RPM

Typical Services & Ideal Applications

The JXH Series is designed for high-head dewatering applications where corrosion resistance is essential. These pumps are commonly used in industrial plants, chemical processing systems, wastewater facilities, and other environments where aggressive liquids and high discharge pressures are present.

Their combination of high-pressure capability, corrosion-resistant materials, and durable construction makes them an effective solution for maintaining reliable operation in challenging conditions.
