JH Series High Head Dewatering Pumps Information

Features & Benefits

The JH Series is specifically engineered for high-head dewatering applications where increased discharge pressure is required. Its hydraulic design allows water to be moved efficiently over greater vertical distances, making it well suited for systems with elevation changes or extended piping runs.

The series balances flow and pressure to ensure consistent performance, while maintaining the ability to handle light solids typically found in dewatering environments. Optional Seal Minder® monitoring adds an extra layer of protection by helping detect seal failure before it leads to pump damage.

Construction and Operational Design

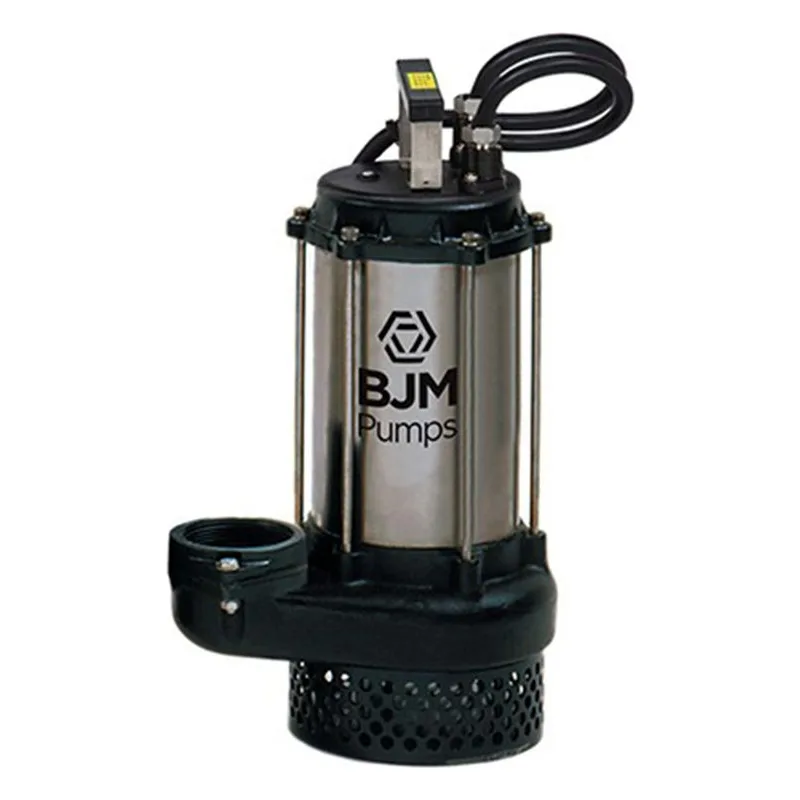

The JH Series is built with cast iron hydraulic components and a 304 stainless steel motor housing, providing both structural durability and resistance to corrosion. This combination allows the pumps to perform reliably in wet and demanding conditions.

Each pump features a double mechanical seal system, along with an additional lip seal, giving multiple layers of protection against contamination. The motors operate at approximately 3450 RPM and are designed for continuous-duty operation, delivering strong hydraulic output across the series.

Built-in thermal and amperage overload protection helps prevent motor damage during extended use, while stainless steel components improve overall durability and longevity.

Design Characteristics

Hydraulic Performance: High-head design supports discharge pressures up to approximately 145 feet

Impeller Design: Optimized for efficient flow while handling light solids up to 3/8 inch

Discharge Configuration: Side discharge allows for easy installation and compatibility with guide rail systems

Seal System: Double mechanical seal with additional lip seal provides enhanced protection

Materials of Construction: Cast iron pump body with 304 stainless steel motor housing for durability

Protection Features: Built-in thermal and overload protection with optional Seal Minder® monitoring

Technical Summary

Power Range: 2 HP to 10 HP

Flow Capacity: Up to ~300 GPM

Head Range: Up to ~145 feet

Solids Handling: Up to 3/8 inch

Voltage: 208V, 230V, 460V, 575V

Motor Speed: ~3450 RPM

Typical Services & Ideal Applications

The JH Series is designed for dewatering systems where high pressure is required to move water across long distances or elevations. These pumps are widely used in construction sites, sump drainage systems, industrial facilities, and applications requiring reliable high-head performance.

Their ability to maintain consistent discharge pressure while handling light solids makes them well suited for demanding environments where performance and durability are essential. The combination of robust construction and advanced sealing technology ensures dependable operation across a range of continuous-duty applications.
