The JF Series Advantage: High-Temperature Dewatering Built for Extreme Conditions

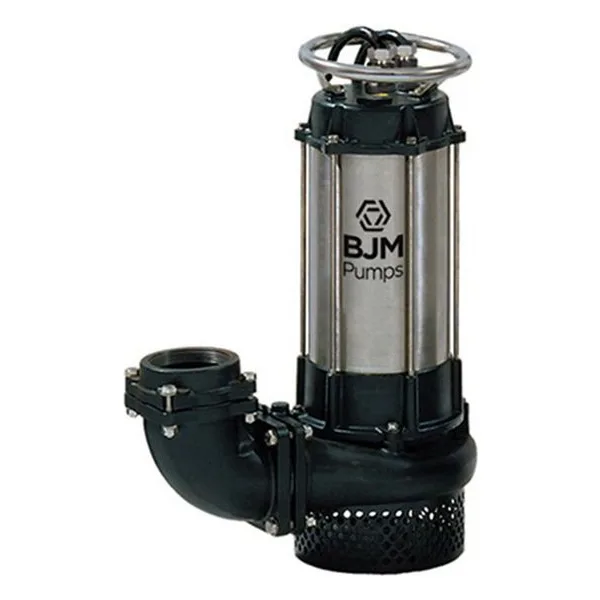

The BJM Pumps JF Series Fahrenheit® Submersible Pumps are specifically engineered for high-temperature dewatering applications where standard pumps cannot operate. Designed to handle liquids up to 200°F (93°C), this series delivers reliable performance in demanding environments such as industrial processes, hot water sumps, and high-temperature drainage systems.
With a wide horsepower range and flow capabilities up to 650 GPM, the JF Series combines high-capacity performance with advanced material construction to ensure durability and long service life under extreme thermal conditions.
Engineered for Heat, Flow, and Reliability
The JF Series is built around a high-speed 2-pole motor operating at approximately 3450 RPM, enabling strong flow rates and efficient dewatering performance. The side discharge design supports easy installation in sump systems and works well with guide rail setups for maintenance access.
Designed for continuous-duty operation in hot liquids, the series incorporates Class R motor insulation, allowing it to operate reliably at elevated temperatures while maintaining motor protection and efficiency.
Key Features & Benefits
- High-Temperature Capability: Handles liquids up to 200°F (93°C) for demanding applications
- High Flow Performance: Delivers up to 650 GPM across the series
- Side Discharge Design: Simplifies installation and supports guide rail systems
- Durable Construction: Cast iron pump body with 304 stainless steel motor housing
- Advanced Seal System: Double mechanical seal with additional lip seal for enhanced protection
- Seal Minder® Monitoring: Moisture sensing probe helps detect seal failure early
Advanced Protection for High-Temperature Operation
The JF Series is equipped with multiple protection features designed specifically for high-temperature environments. A double mechanical seal system, combined with a separate lip seal, provides strong protection against fluid intrusion and helps extend pump life.
Built-in thermal switches embedded in the motor windings automatically protect against overheating, while the Seal Minder® system monitors moisture levels to alert operators of potential seal issues before failures occur.
These features work together to ensure dependable operation in continuous-duty, high-heat applications where reliability is critical.
Performance Specifications
- Horsepower (HP): 1 HP to 10 HP
- Max Flow: Up to 650 GPM
- Max Head: Up to ~120 ft
- Max Solids Handling: Up to 3/8 in (9.5 mm)
- Max Liquid Temperature: 200°F (93°C)
- Voltage Options: 115V, 230V, 460V, 575V
- Motor Speed: ~3450 RPM
Typical Services & Ideal Applications
The JF Series is designed for high-temperature dewatering applications where standard pumps would fail. These pumps are widely used in industrial processes, hot water sumps, boiler systems, and manufacturing environments requiring dependable removal of heated liquids.
Their combination of thermal resistance, high flow capacity, and durable construction makes them an ideal solution for applications involving elevated temperatures and continuous-duty operation.
