HAZ Series Abrasion-Resistant MSHA Pumps Information

Features & Benefits

The HAZ Series is engineered for extreme-duty slurry handling where abrasive materials and solid buildup can impact pump performance. Its integrated agitator system continuously mixes settled solids, allowing the pump to maintain flow while restoring sump capacity.

High-chrome iron components across the impeller, agitator, and wear plate provide superior resistance to wear, ensuring long service life even in aggressive slurry conditions. This combination of durability and performance reduces maintenance requirements and operational downtime.

The availability of MSHA-compliant configurations makes the series suitable for mining applications requiring strict safety and operational standards.

Construction and Operational Design

The HAZ Series is constructed using hardened ductile iron for the volute and high-chrome iron for critical wear components. This material combination provides both structural strength and exceptional resistance to abrasion.

Each pump is equipped with a dual mechanical seal system to protect the motor from slurry intrusion. The submersible motor operates at approximately 1750 RPM and is designed for continuous-duty performance under heavy loads.

Class H motor insulation allows for operation in higher temperature environments, while built-in thermal and amperage overload protection safeguards the motor during extended use. Stainless steel shaft components and rugged bearings further contribute to long-term reliability.

Design Characteristics

Impeller Design: Semi-open high-chrome impeller designed for abrasive slurry handling

Agitator System: Integrated agitator mixes settled solids and prevents accumulation

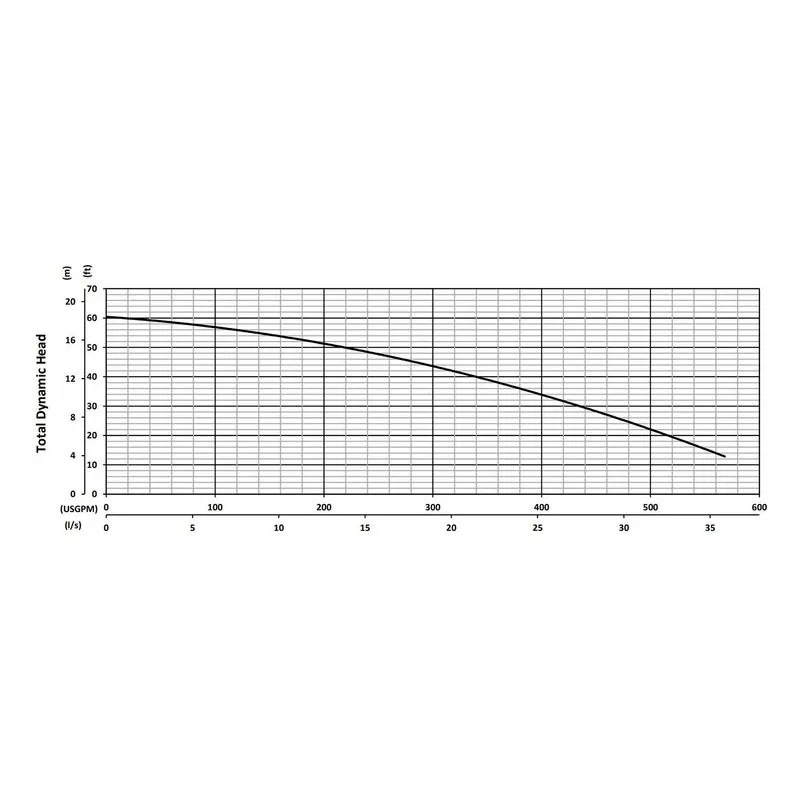

Hydraulic Performance: Designed for high flow rates and moderate head in slurry applications

Materials of Construction: High-chrome iron wet end with hardened ductile iron volute

Motor Design: 4-pole motor (~1750 RPM) with Class H insulation for durability

Protection Features: Built-in thermal overload protection and dual mechanical seals

Technical Summary

Power Range: 5 HP to 10 HP

Flow Capacity: Up to ~655 GPM

Head Range: Up to ~69 feet

Solids Handling: Up to 1 inch

Voltage: 230V / 460V / 575V, 3-phase

Motor Speed: ~1750 RPM

Typical Services & Ideal Applications

The HAZ Series is designed for abrasive slurry applications where durability and solids handling are critical. These pumps are widely used in mining operations for coal slurry transfer, sump cleaning, and dewatering systems.

Their ability to handle heavy, abrasive materials while maintaining consistent performance makes them ideal for harsh industrial environments where equipment reliability directly impacts productivity. The integrated agitator and wear-resistant construction ensure efficient operation even in the most demanding conditions.
