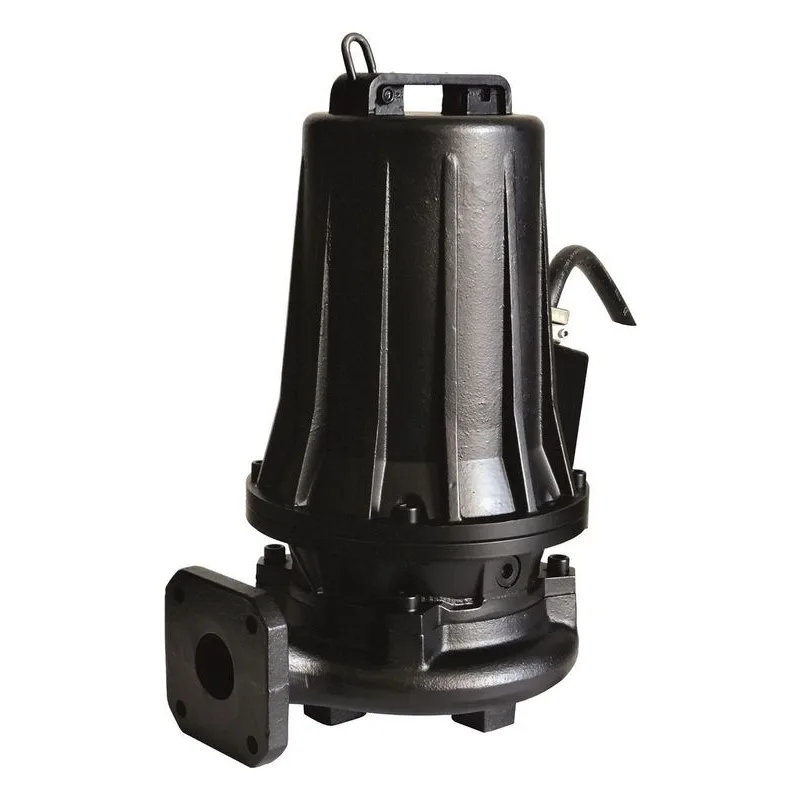

H2 Series Submersible Electric Pumps Information

Features & Benefits

The H2 Series is engineered for applications where high-pressure performance and efficient fluid handling are essential. Its double channel impeller design allows liquids with small solids to pass through the pump while maintaining strong hydraulic efficiency.

This makes the series ideal for installations where both flow consistency and elevated discharge pressure are required, such as irrigation systems, water features, and dewatering operations.

The addition of Seal Minder® monitoring and thermal protection systems enhances reliability by helping detect potential issues early and protecting the motor from overheating during extended operation.

Construction and Operational Design

The H2 Series is constructed with GG25 cast iron across major components, including the pump housing, volute, and impeller. This provides the strength needed to withstand demanding operating conditions while ensuring long-term durability.

The submersible motor operates at approximately 3450 RPM and is designed for continuous-duty performance. All models are available in 460V three-phase configurations, supporting consistent power delivery in industrial and commercial systems.

Stainless steel AISI 316 cable glands and corrosion-resistant hardware improve longevity in wet and abrasive environments, while precision sealing systems protect internal components from contamination.

Design Characteristics

Impeller Design: Double channel impeller supports efficient flow and allows passage of solids up to 20 mm in applicable models

Hydraulic Performance: Engineered for high-head applications with strong pressure output across multiple pump sizes

Construction Materials: GG25 cast iron components provide durability and resistance to wear

Monitoring System: Seal Minder® moisture sensing probe provides early detection of seal failure

Thermal Protection: Dual thermal switches protect the motor from overheating during continuous-duty operation

Installation Flexibility: Designed for submersible use in multiple high-pressure applications including irrigation and water features

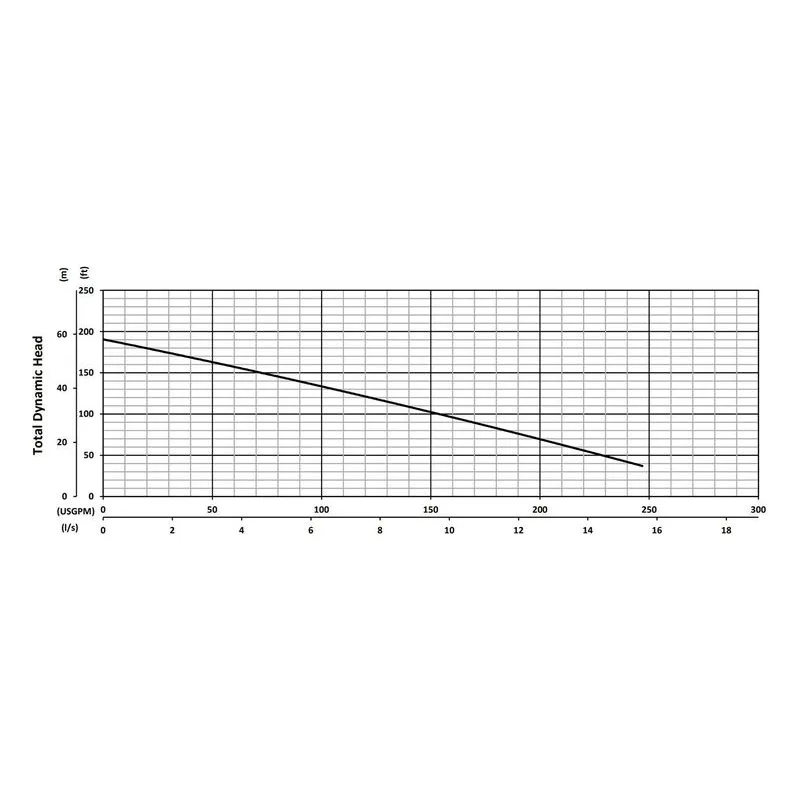

Technical Summary

Power Range: 2 HP to 13 HP

Flow Capacity: Up to 247 GPM

Head Range: Up to 193 feet

Solids Handling: Up to 20 mm

Voltage: 460V, 3-phase

Motor Speed: ~3450 RPM

Typical Services & Ideal Applications

The H2 Series is designed for clear water and light sewage applications where high discharge pressure and consistent performance are required. These pumps are commonly used in water fountains, waterparks, agricultural irrigation systems, and general dewatering operations.

Their ability to handle moderate solids while delivering strong head performance makes them particularly effective in systems with elevation changes or pressure-driven distribution requirements. The combination of durable construction, integrated protection systems, and efficient hydraulic design ensures dependable performance across a wide range of demanding applications.
