Compact Grinder Pump Performance for Reliable Wastewater Handling

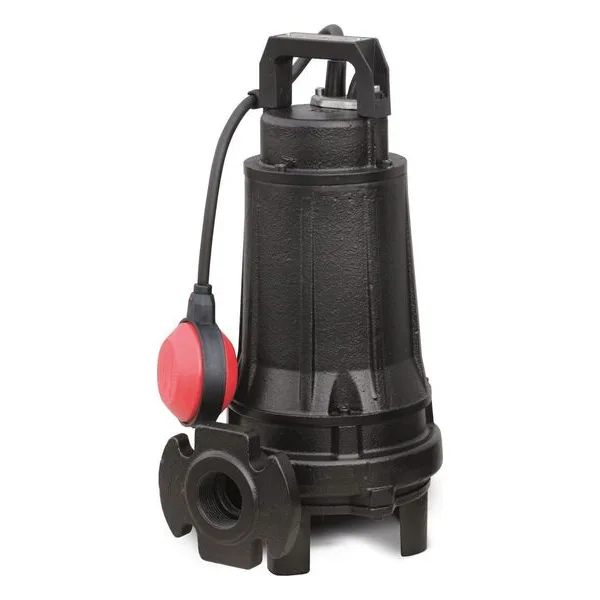

The BJM Pumps GRIX Series Submersible Grinder Pumps are designed for efficient wastewater transfer in residential and light commercial applications. Featuring an integrated cutting system, these pumps break down solids at the inlet, allowing wastewater to travel smoothly through narrow or pre-existing piping systems.
With compact sizing, versatile voltage options, and durable construction, the GRIX Series delivers dependable performance for domestic sewage, liquids with suspended solids, and systems requiring high discharge pressure.
Efficient Solids Reduction in Compact Applications
The GRIX Series incorporates a built-in macerator with hardened cutting components that reduce solids before they enter the pump. This ensures consistent performance and minimizes the risk of clogging, particularly in systems with smaller pipe diameters.
Designed for wastewater systems where space and piping constraints are common, the GRIX Series provides an effective solution for maintaining steady flow while handling challenging solids content.
Key Features & Benefits
- Integrated Cutting System: Built-in macerator breaks down solids at the inlet
- Compact Design: Ideal for tight installations and narrow piping systems
- Pressure Capability: Designed for applications requiring higher head performance
- Dual Voltage Options: Available in 230V and 460V configurations
- Durable Construction: GG20 cast iron components ensure long service life
- Flexible Operation: Optional float switch available for automatic control
Advanced Sealing and Reliability
The GRIX Series EVO configuration is equipped with a double mechanical seal system located in an accessible oil chamber, providing enhanced protection and serviceability.
- Motor Side Seal: Carbon/Ceramic with Viton
- Impeller Side Seal: Silicon Carbide/Silicon Carbide with Viton
This sealing arrangement improves reliability in continuous-duty wastewater applications while allowing easier maintenance when required.
Performance Specifications
Horsepower (HP): 1 to 2 HP
Max Flow: Up to ~37 GPM
Max Head: Up to ~122 ft
Voltage Options: 230V / 460V, 3-phase
Max Liquid Temperature: 104°F
Max Submersion Depth: Up to 65 ft
Typical Services & Ideal Applications
The GRIX Series is engineered for domestic and light commercial wastewater systems where solids must be reduced before pumping. These pumps are commonly used in residential sewage systems, small lift stations, and applications involving liquids with suspended solids.
Their compact footprint and grinding capability make them particularly effective in installations with limited space, narrow piping, or retrofitted systems where pipe sizes cannot be easily increased.
