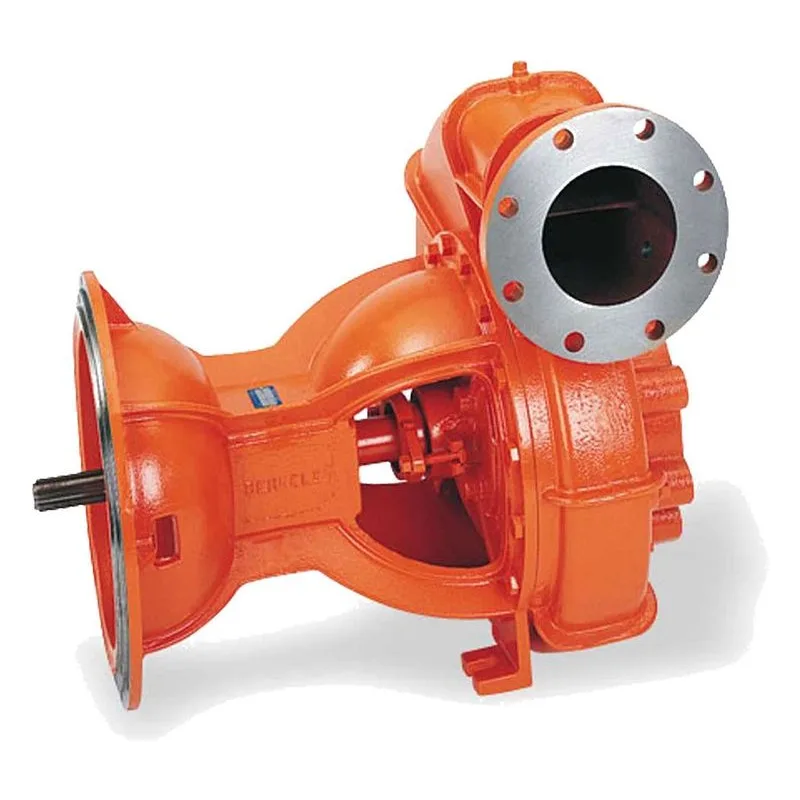

Image shown may not be actual product
B66026-99
Berkeley B66026-99 Type "B" Closed Coupled Centrifugal Pump, Model: B4JQBH with Engine Drive - Pump Attached Directly to Engine Frame. 5" Suction, 4" Discharge, PTFE with Graphite Impregnation Packed Stuffing Box, 13" Nominal Diameter Impeller. A Pentair Brand Product.
- Pump Catalog Price
Retail Price: $12,955.20How come you don't show price?Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
B66026-99
Berkeley B66026-99 Type "B" Closed Coupled Centrifugal Pump, Model: B4JQBH with Engine Drive - Pump Attached Directly to Engine Frame. 5" Suction, 4" Discharge, PTFE with Graphite Impregnation Packed Stuffing Box, 13" Nominal Diameter Impeller. A Pentair Brand Product.
| Adapter Bracket | Cast Iron |
| Casing Wear Ring Material | Bronze |
| Discharge NPT (Inches) | 4" |
| Drive Type | Engine Drive - Pump Attached Directly to Engine Frame |
| Lantern Ring | Teflon |
| Model Series | B4JQBH |
| Motor Shaft Material | Carbon Steel |
| Nominal Impeller Diameter (Inches) | 13" |
| Product Notes | Hydraulically Balanced Impeller Design |
| Pump Size | 4 x 5 x 13BH |
| Quick Specs | B4JQBH 13-1/2F 1-1/2-10 3EXT SAE 3 |
| Relative Capacity of Impeller | High |
| Seal Retainer | Cast Iron |
| Shaft Seal Material | PTFE with Graphite Impregnation |
| Shaft Seal Type | Packed Stuffing Box |
| Shaft Sleeve Material | 416 SS |
| Style | Back Pull Out Design |
| Suction NPT (Inches) | 5" |
| Volute Case Material | Cast Iron |
SAE Centrifugal Series Information
| Features & Benefits |
|---|
| Berkeley SAE Centrifugal Pump Key Features & Benefits Twenty-eight pump models, with flows to 6500 GPM, Pressures to 500 feet (215 psig). Cast Iron or Silicon Bronze Impellers are available in either packed or mechanical seal configurations. Replaceable stainless steel shaft sleeve is standard, providing maximum corrosion resistance while minimizing shaft wear. Volute case - Back pull-out design allows easy removal and repair without disturbing piping connections, and completely exposes the impeller for flushing or service. Heavy-Duty Power Frame is designed for durability delivering in excess of 20,000 hours of bearing life. Includes large shaft and grease-for-life sealed bearings to handle the toughest conditions with less maintenance and more reliability. Dry-Run Seal option available |
Categories
Agriculture
380 productsGeneral Purpose
595 products
| Type | Title | Link | |
|---|---|---|---|
Berkeley SAE Engine Mount Pump Owners Manual | View | ||
Berkeley SAE Engine Mount Pump Application Selection | View | ||
Berkeley SAE Engine Mount Pump Dimensions | View | ||
Berkeley SAE Engine Mount Pump Shaft Replacement Kit Installation | View | ||
Berkeley SAE Engine Mount B6XT Pump Features | View | ||
Berkeley SAE Engine Mount Pump Supplement B Shaft Seal Packing | View | ||
Berkeley SAE Engine Mount Pump Supplement C Replacement Shaft Kits | View | ||
Berkeley SAE Engine Mount Pump Supplement D Companion Flange Kits | View | ||
Berkeley SAE Engine Mount Pump Supplement E Volute Sealing | View | ||
Berkeley SAE Engine Mount Pump Supplement F Run Dry Tank | View | ||
Berkeley SAE Engine Mount Pump Mount Application Selection | View | ||
Berkeley SAE Engine Mount Pump Elastomer Mounted Hub Coupling | View | ||
Berkeley SAE Engine Mount Pump Supplement A | View | ||
Berkeley SAE Air Cooled Engine Drive Pump Bases & Motors | View | ||
