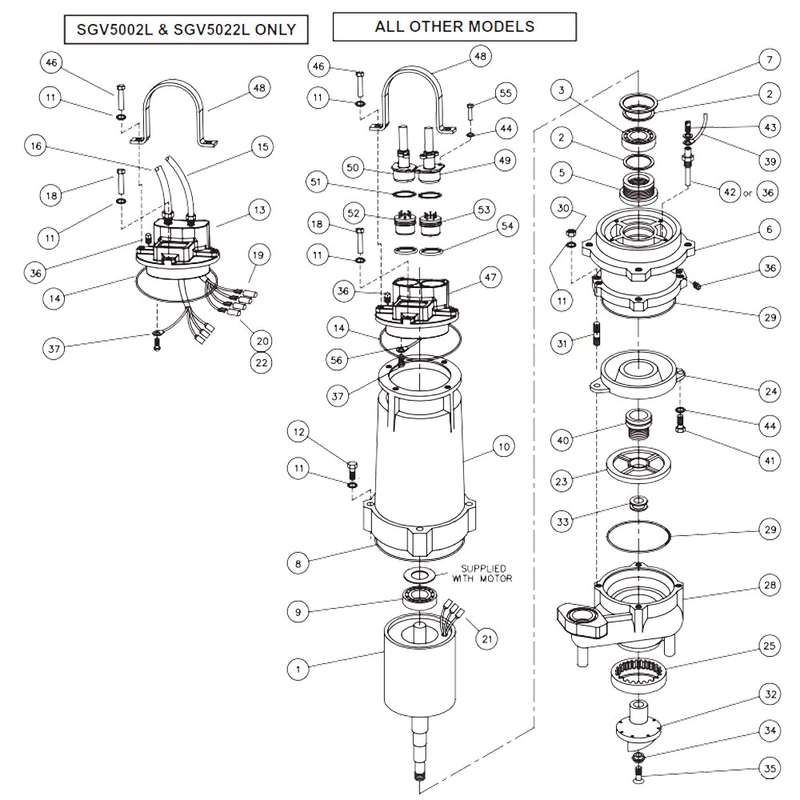

Repair Parts
SGV5022L
Barnes Pumps SGV5022L Submersible Grinder Pump, 2" Discharge, 5 HP, 230 Volt, 60 Hz, Single Phase, 3450 RPM, 115658 Part Number, 30' Cord Length
Actual Weight
198
Connections / Discharge (Inches)
2" Discharge
Cord Length
30'
HP
5
Hz
60
Part Number
115658
Phase
1 Ph (Single Phase)
Quick Specs
SGV - 2" Discharge
Speed (RPM)
3450
Voltage
230
SGV Series Information
Features & Benefits
SGV Pump Advantages • Recessed vortex impeller design virtually eliminates pump damage from cavitation • Unique and robust 3-bearing shaft support design significantly extends mechanical seal life by minimizing shaft deflection • Cast iron impeller will not corrode • Exclusive Slicerator grinder eliminates jams • Quick-connect power cord eliminates wiring mistakes • Available from factory with pre-wired and tested basin package • Available in 2 hp, 3 hp, 5 hp, and 7.5 hp models • Double mechanical seal provides clean environment for long life
UltraGrind™ Systems Offer • Low initial costs • Extended MTBSC (Mean Time between Service Calls) • Low life-cycle costs • Installation ease • Trouble-free operation
High Capacity To 200 (duplex) gpm; heads to 160 ft TDH
Installation and Start-Up Assistance Barnes’ maintenance experts can provide on site training and assistance to make sure installation is correct, efficient and easily repeatable.
General Description
Exclusive Slicerator™ The staggered slicing action of the radial grinder cutter dramatically reduces the torque requirement of the motor, cuts with less horsepower, and increases the unit’s efficiency. This helps prevent clogging with particularly troublesome objects such as plastic, rubber, sanitary napkins, disposable diapers and cloth items.
UltraCAP II™ Removable Dry Well Optional rotomolded polyethylene removable dry well with integrated control panel eliminates the need to connect any wires inside the pump station.
Flexible Connector Prevents potential misalignment problems by compensating for different settling rates of basin and discharge pipe.
Level Control Systems Options including modularized control assemblies are available including mechanical floats and the ESPS™ (Environmentally Sealed Pressure Switch).
Stealth™ Control Panels UL Listed, family of Stealth control panels provides cost effective and reliable pump station operation along with potential malfunction warning.
