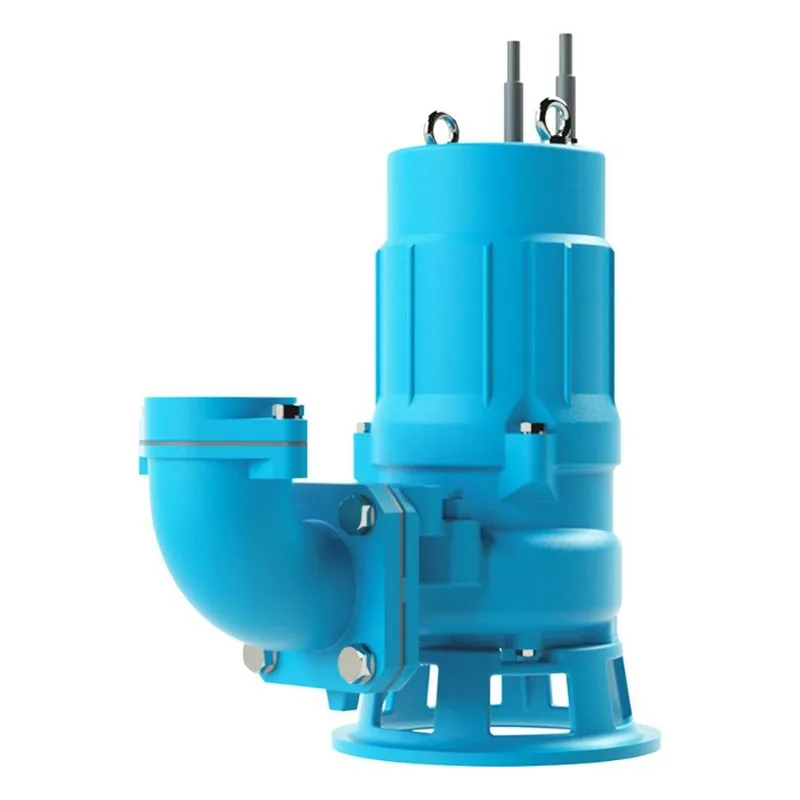

Barnes Submersible Cutter, Sewage 3SEC Pump. 3" JIS 80 Horizontal Flange Discharge with a Inboard: Carbon / Silicon Carbide, Outboard: Silicon Carbide / Tungsten Carbide, Buna-N Tandem Mechanical Seal. 2 HP, 460 Volts, 3 Ph (Three Phase) Motor. Semi-Open Monovane Cast Iron Impeller Design capable of handling Liquids at 104°F (40°C). A Crane Pumps & Systems Product.
$2,173.50
- Best Price Guarantee!
- 434PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
148933
Barnes Submersible Cutter, Sewage 3SEC Pump. 3" JIS 80 Horizontal Flange Discharge with a Inboard: Carbon / Silicon Carbide, Outboard: Silicon Carbide / Tungsten Carbide, Buna-N Tandem Mechanical Seal. 2 HP, 460 Volts, 3 Ph (Three Phase) Motor. Semi-Open Monovane Cast Iron Impeller Design capable of handling Liquids at 104°F (40°C). A Crane Pumps & Systems Product.
| Discharge NPT (Inches) | 3" JIS 80 Horizontal Flange |
| Elastomer | Buna-N |
| HP | 2 HP |
| Hz | 60 Hz |
| Impeller Material | Cast Iron A-48, Class 30 |
| Impeller Style | Semi-open Monovane, Dynamically Balanced ISO G6.3 |
| Includes | 3" Flanged Elbow: Cast Iron A-48, Class 30, 3" NPT Adapter: Cast Iron A-48, Class 30 Adapters |
| Insulation Class | Class F |
| Liquid Temperature | 104°F (40°C) |
| Motor | NEMA B, Air-Filled, Squirrel Cage Induction |
| Motor Housing Material | Cast Iron A-48, Class 30 |
| Motor Shaft Material | 420 Stainless Steel |
| Part Number | 3SEC2042A |
| Phase | 3 Ph (Three Phase) |
| Product Notes | Volute With Air Release Valve |
| Shaft Seal Material | Inboard: Carbon / Silicon Carbide, Outboard: Silicon Carbide / Tungsten Carbide, Buna-N |
| Shaft Seal Type | Tandem Mechanical |
| Speed (RPM) | 3450 RPM |
| Voltage | 460 Volts |
| Volute Case Material | Cast Iron A-48, Class 30 |
