096755XA

Image shown may not be actual product

096755XA

0 reviews

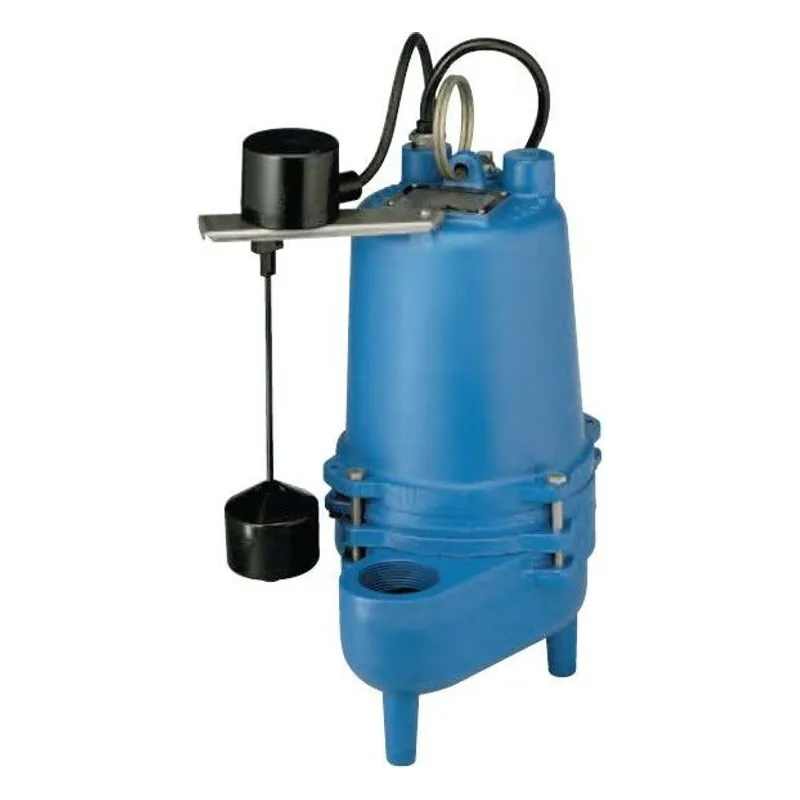

Barnes Sewage Ejector, SE511-521 Vortex Double Seal Pump. 2" NPT, Female, vertical Discharge with a Carbon / Ceramic / Buna-N Single Mechanical, Oil Filled reservoir Secondary Exclusion Seal Seal. 0.5 HP, 230 Volts, 1 Ph (Single Phase) Motor. 2 Vane Open Cast Iron Impeller Design capable of handling Liquids at 104°F (40°C). Built with a 15 ft. (5m) Cord Entry. A Crane Pumps & Systems Product.

$1,151.06

Best Price Guarantee!
230PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 096755XA | Part #: SE521, 20

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

096755XA

Discharge NPT (Inches)	2" NPT, Female, vertical
Elastomer	Buna-N
HP	0.5 HP
Hz	60 Hz
Impeller Material	Cast Iron ASTM A-48, class 30
Impeller Style	2 Vane, open
Insulation Class	Class B
Liquid Temperature	104°F (40°C)
Motor	NEMA L Torque Curve, Oil Filled, Squirrel Cage Induction
Motor Housing Material	Cast Iron ASTM A-48, class 30
Motor Shaft Material	416 Stainless Steel

Part Number	SE521, 20
Phase	1 Ph (Single Phase)
Seal Plate Material	Cast Iron ASTM A-48, class 30
Shaft Seal Material	Carbon / Ceramic / Buna-N
Shaft Seal Type	Single Mechanical, Oil Filled reservoir Secondary Exclusion Seal
Speed (RPM)	1750 RPM
Valve / Seat / O-Ring	Buna-N Square Ring
Voltage	230 Volts
Volute Case Material	Cast Iron ASTM A-48, class 30

SE411-421 Series Information

Features & Benefits
Models: SE411 - SE421 Motor - 4/10 hp RPM - 1750 Electrical 115v 1ph 230v 1ph Cord Length - 15' Construction - Cast Iron Impeller - Cast Iron Discharge - 2" Solids - 2" Automatic Operation (manual available) - Mechanical Float / Vertical Float

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Barnes Pump Series SE411 & SE421 Manual		View
	Barnes Pump Series SE411 & SE421 Specifications		View
	Barnes Pump Series SE411HT & SE421HT Specifications		View
	SE / SEV Sewage Ejector Repair Parts Manual		View

Repair Parts for 096755XA

qty.	price
098835	Lead Time TBD	Call for pricing
093063	Lead Time TBD	$407.62	Select item
068988	Ships in 2 Days	$88.11	Select item
017414	Lead Time TBD	$40.05	Select item
017415	Lead Time TBD	$5.34	Select item
070965	Lead Time TBD	$131.72	Select item
039858	Lead Time TBD	$13.35	Select item
099261	Lead Time TBD	$137.06	Select item
051448	Lead Time TBD	$55.18	Select item
051449	Lead Time TBD	$5.34	Select item
016660	Ships in	$5.34	Select item
019289	Lead Time TBD	$13.35	Select item
093065	Lead Time TBD	$463.69	Select item
084948	Lead Time TBD	$5.34	Select item
068053	Ships in 2 Days	$13.35	Select item
096722	Lead Time TBD	$771.63	Select item
099295	Lead Time TBD	$55.18	Select item
068984	Lead Time TBD	$15.13	Select item
089120	Ships in 1-2 Weeks	$639.02	Select item
1-172-1	Ships in	$5.34	Select item
027271	Lead Time TBD	$5.34	Select item
029034	Ships in	Call for pricing
015000	Lead Time TBD	$5.34	Select item
090516	Lead Time TBD	$5.34	Select item
20-12-1	Lead Time TBD	$5.34	Select item
2-88-1	Lead Time TBD	$5.34	Select item
100829	Lead Time TBD	Call for pricing
100547	Lead Time TBD	$72.09	Select item
021337	Lead Time TBD	Call for pricing
022229	Lead Time TBD	Call for pricing
096726	Lead Time TBD	$363.12	Select item
098679	Lead Time TBD	$5.34	Select item
085201	Lead Time TBD	$299.93	Select item
085202	Lead Time TBD	$234.07	Select item
085343	Lead Time TBD	$477.04	Select item
