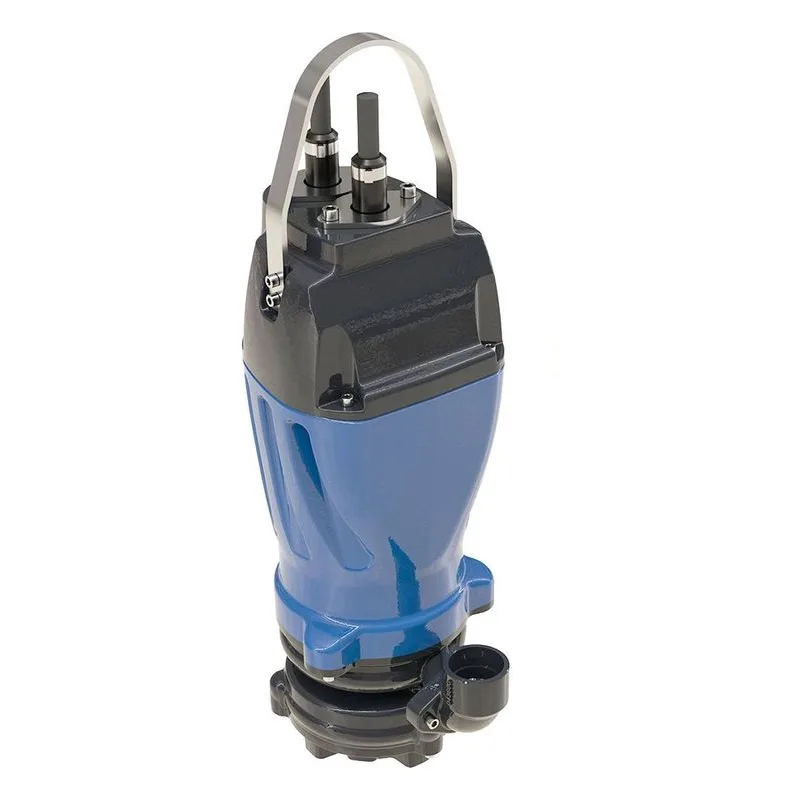

Image shown may not be actual product
149196
XZSGV2092L Barnes Razor 149196 Submersible Two-Stage Grinder Pump. 1.25" NPT Discharge with a Silicon-carbide / Silicon-carbide / Buna-N Dual Mechanical Seal. 2 HP, 208-240 Volts, 3 Ph (Three Phase) Motor. 12 Vane Vortex Cast Iron Impeller Design capable of handling Liquids at 104°F (40°C). Built with a 30 ft. (9.1 m) Cord Entry. A Crane Pumps & Systems Product.
$4,219.50
- Best Price Guarantee!
- 843PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Repair Parts
149196
XZSGV2092L Barnes Razor 149196 Submersible Two-Stage Grinder Pump. 1.25" NPT Discharge with a Silicon-carbide / Silicon-carbide / Buna-N Dual Mechanical Seal. 2 HP, 208-240 Volts, 3 Ph (Three Phase) Motor. 12 Vane Vortex Cast Iron Impeller Design capable of handling Liquids at 104°F (40°C). Built with a 30 ft. (9.1 m) Cord Entry. A Crane Pumps & Systems Product.
| Model Number | XZSGV2092L |
| Impeller Style | 12 Vane Vortex, with pump out vanes on back side. Dynamically balanced, ISO G6.3 |
| Motor Housing Material | Cast Iron ASTM A-48, class 31 |
| Insulation Class | Class F |
| Rotating Face | Silicon-carbide |
| Part Number | 149196 |
| Motor | NEMA B Three Phase Torque Curve |
| Liquid Temperature | 104°F (40°C) |
| Volute Case Material | Cast Iron ASTM A-48, class 30 |
| Voltage | 208-240 Volts |
| Valve / Seat / O-Ring | Buna-N |
| Stationary | Silicon-carbide |
| Speed (RPM) | 3450 RPM |
| Shaft Seal Type | Dual Mechanical |
| Shaft Seal Material | Silicon-carbide / Silicon-carbide / Buna-N |
| Seal Plate Material | Cast Iron ASTM A-48, class 32 |
| Phase | 3 Ph (Three Phase) |
| Options | Additional Cord Lengths, Impeller Trims To Meet Specified Conditions, Moisture Sensors, Guide Rail Systems and Stands for Freestanding Applications Available |
| Motor Shaft Material | 416 Stainless Steel |
| Maximum Flow (GPM) | 54 GPM |
| Impeller Material | Cast Iron |
| Hz | 60 Hz |
| HP | 2 HP |
| Heads To (Feet) | 125 ft |
| Elastomer | Buna-N |
| Discharge NPT (Inches) | 1.25" NPT |
Repair Parts for 149196
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 11-62-1 | Ships in | $4.45 | ||
| 148353 | Call for Shipping | ||||
 | 148216 | Ships in | $242.08 | ||
| 148451A | Call for Shipping | ||||
| 2-31003-156 | Call for Shipping | ||||
| 148190 | Call for Shipping | ||||
| 36803 | Call for Shipping | ||||
 | 014270-SS | Ships in | $5.34 | ||
| 141704 | Ships in | $4.45 | ||
| 141655B | Call for Shipping | ||||
| 2-31003-163 | Call for Shipping | ||||
| 143567-005 | Ships in | $4.45 | ||
| 143567-015 | Ships in | $4.45 | ||
| 143567-030 | Ships in | $4.45 | ||
| 143567-061 | Call for Shipping | ||||
| 141645B | Call for Shipping | ||||
| 143345B | Call for Shipping | ||||
| 11-29-2 | Call for Shipping | ||||
| 141654 | Call for Shipping | ||||
| 11-34-2 | Call for Shipping | ||||
 | 145549 | Ships in | $95.23 | ||
| 126638 | Call for Shipping | ||||
| 145400 | Ships in | $208.26 | ||
| 145401 | Ships in | $151.30 | ||
| 139741 | Ships in | $264.33 | ||
