Image shown may not be actual product
145350
Barnes Razor Submersible Two-Stage Grinder Pump. 1-1/4" NPT, Vertical, Bolt-on Flange Discharge with a Silicon-carbide / Silicon-carbide / Buna-N Single Mechanical Seal. 2 HP, 208/230 Volts, 1 Ph (Single Phase) Motor. 12 Vane Vortex Cast Iron Impeller Design capable of handling Liquids at 104°F (40°C). Built with a 30 ft. (9.1 m) Cord Entry. A Crane Pumps & Systems Product.
$3,013.60
- Best Price Guarantee!
- 602PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Repair Parts
145350
Barnes Razor Submersible Two-Stage Grinder Pump. 1-1/4" NPT, Vertical, Bolt-on Flange Discharge with a Silicon-carbide / Silicon-carbide / Buna-N Single Mechanical Seal. 2 HP, 208/230 Volts, 1 Ph (Single Phase) Motor. 12 Vane Vortex Cast Iron Impeller Design capable of handling Liquids at 104°F (40°C). Built with a 30 ft. (9.1 m) Cord Entry. A Crane Pumps & Systems Product.
| Automatic | Automatic |
| Discharge NPT (Inches) | 1-1/4" NPT, Vertical, Bolt-on Flange |
| Elastomer | Buna-N |

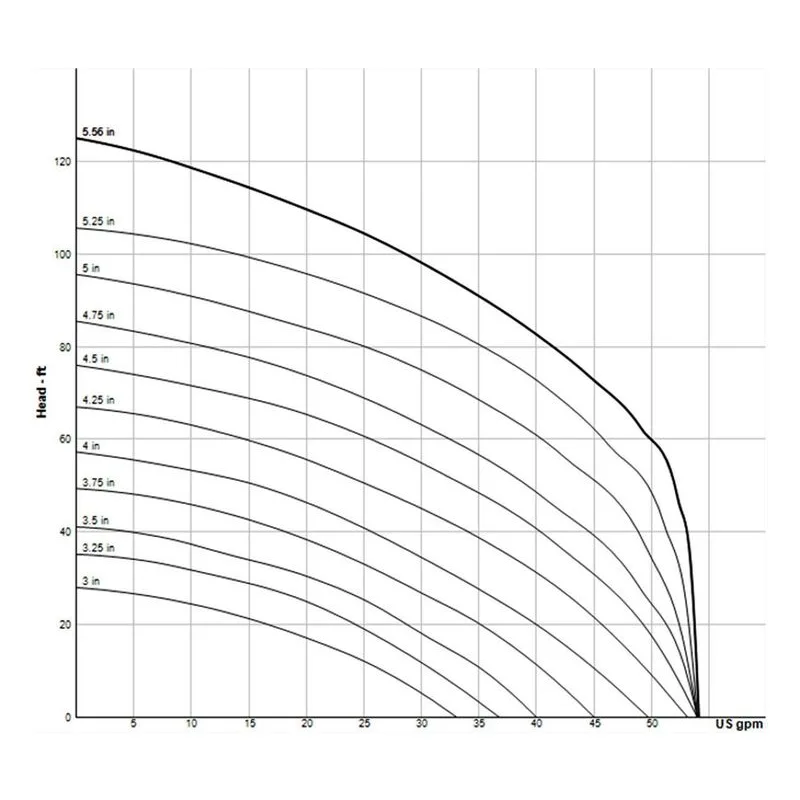

| Heads To (Feet) | 125 ft |
| HP | 2 HP |
| Hz | 60 Hz |
| Impeller Material | Cast Iron |
| Impeller Style | 12 Vane Vortex, with pump out vanes on back side. Dynamically balanced, ISO G6.3 |
| Insulation Class | Class F |
| Liquid Temperature | 104°F (40°C) |
| Maximum Flow (GPM) | 54 GPM |
| Motor | NEMA L-Single Phase Torque Curve, Oil-Filled, Squirrel Cage Induction |
| Motor Housing Material | Cast Iron ASTM A-48, class 30 |
| Motor Shaft Material | 416 Stainless Steel |
| Options | Additional Cord Lengths, Impeller Trims To Meet Specified Conditions, Moisture Sensors, Guide Rail Systems and Stands for Freestanding Applications Available |
| Part Number | ZOGV2072AUF |
| Phase | 1 Ph (Single Phase) |
| Rotating Face | Silicon-carbide |
| Seal Plate Material | Cast Iron ASTM A-48, class 30 |
| Shaft Seal Material | Silicon-carbide / Silicon-carbide / Buna-N |
| Shaft Seal Type | Single Mechanical |
| Speed (RPM) | 3450 RPM |
| Stationary | Silicon-carbide |
| Valve / Seat / O-Ring | Buna-N |
| Voltage | 208/230 Volts |
| Volute Case Material | Cast Iron ASTM A-48, class 30 |
Repair Parts for 145350
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
| 143449 | Call for Shipping | ||||
 | 141655BTA1 | Ships in | $307.05 | ||
| 111131SD | Lead Time TBD | $216.27 | ||
 | 145611 | Ships in | $192.24 | ||
| 014270-SS | Ships in | $5.34 | ||
| 141653 | Ships in | $80.10 | ||
| 2-31003-162 | Ships in | $4.45 | ||
| 141704 | Ships in | $4.45 | ||
| 143567-005 | Ships in | $4.45 | ||
| 143567-015 | Ships in | $4.45 | ||
| 143567-030 | Ships in | $4.45 | ||
| 143567-060 | Ships in | $4.45 | ||
| 126638 | Call for Shipping | ||||
| 11-34-1 | Ships in | $4.45 | ||
| 36803 | Call for Shipping | ||||
| 2-31003-222 | Ships in | $4.45 | ||
| 141650 | Ships in | $32.04 | ||
 | 145549 | Ships in | $95.23 | ||
 | 147000 | Ships in | $154.70 | ||
| 145401 | Ships in | $151.30 | ||
| 139741 | Ships in | $264.33 | ||
| 149185-KIT | Ships in | $210.93 | ||
| 149186-KIT | Ships in | $97.01 | ||
| 149187-KIT | Ships in | $536.67 | ||
| 149188-KIT | Ships in | $402.28 | ||
