PG / RIVAL Grinder Pumps Information

RIVAL Series Specifications:
DISCHARGE   ................................... 2” NPT
LIQUID TEMPERATURE  ................ 104°F (40°C) Continuous
VOLUTE  ............................................ Cast Iron ASTM A-48, Class 30
MOTOR HOUSING ............................ Cast Iron ASTM A-48, Class 30
SEAL PLATE  .................................... Cast Iron ASTM A-48, Class 30
IMPELLERS: Design - Semi-open, With Pump Out Vanes On Back Side. Dynamically Balanced, ISO G6.3.
Material  ..................... Bronze
CUTTER PLATE  ............................... Hardened 440C Stainless Steel
Rockwell® C-55.
CUTTER  ............................................ Hardened 440CStainless Steel, Rockwell® C-55.
SHAFT   .............................................. 416 Stainless Steel
SQUARE RINGS  ............................... Buna-N
HARDWARE ...................................... 300 Series Stainless Steel
PAINT  ................................................ Powder Coat
SEAL:
Design  ....................... Single Mechanical
Material ...................... Rotating Faces - Silicon-Carbide, Stationary Faces - Silicon-Carbide, Elastomer - Buna-N, Hardware -300 Series Stainless
CORD ENTRY  ................................... 20 ft.
CORD Manual ....................... CSA/UL Approved, 14/3 Type SJTOW
UPPER BEARING:
Design  ....................... Single Row, Ball
Lubrication .Oil
Load  .......................... Radial & Thrust
LOWER BEARING:
Design  ....................... Single Row, Ball
Lubrication  Oil
Load ........................... Radial & Thrust
MOTOR:
Design  .......................NEMA L-Single Phase Torque Curve,Oil-Filled, Squirrel Cage Induction (includes overload protection in the motor),
Insulation  ................ Class F
SINGLE PHASE ................................. Capacitor Start/Capacitor Run.
OPTIONAL EQUIPMENT ................... Float

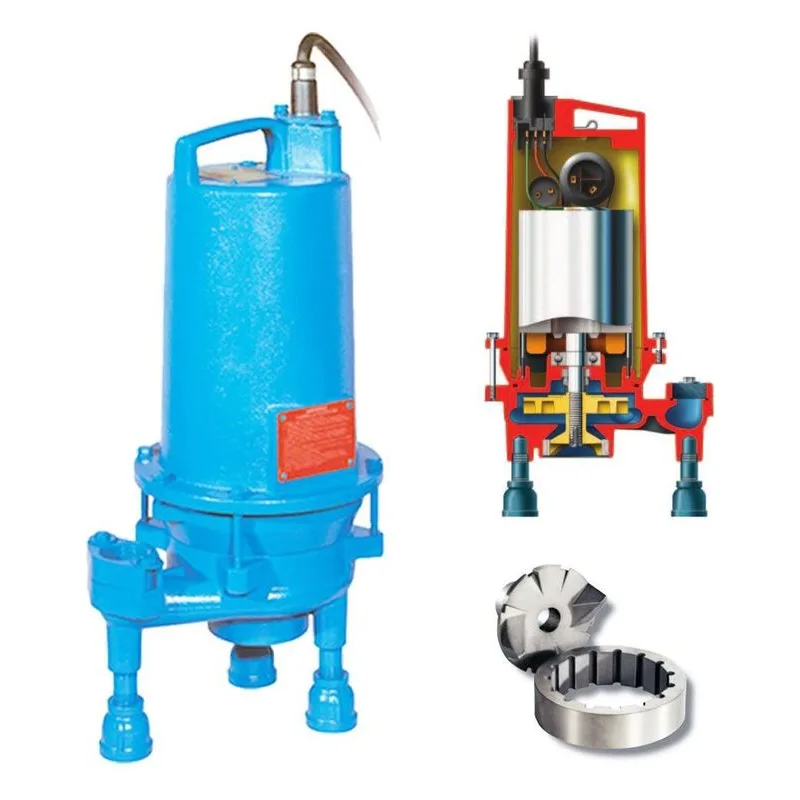

ProGrind Series Specifications:

DISCHARGE   ................................... 1¼” NPT, Female, Vertical, Bolt-On Flange
LIQUID TEMPERATURE ................... 160°F (71°C) Intermittent
VOLUTE  ............................................ Cast Iron ASTM A-48, Class 30
MOTOR HOUSING ............................ Cast Iron ASTM A-48, Class 30
SEAL PLATE  .................................... Cast Iron ASTM A-48, Class 30
LEGS .................................................. Removable and Adjustable
IMPELLERS: Design  ...................... 12 Vane,Vortex, With Pump Out Vanes, On Back Side. Dynamically Balanced, ISO G6.3.
Material  ..................... Cast Iron ASTM A-48, Class 30
SHREDDING RING  ........................... Hardened 440C Stainless Steel, Rockwell® C-55.
CUTTER  ............................................ Hardened 440CStainless Steel, Rockwell® C-55.
SHAFT  .............................................. 416 Stainless Steel
SQUARE RINGS  ............................... Buna-N
HARDWARE ...................................... 300 Series Stainless Steel
PAINT  ................................................ Air Dry Enamel.
SEAL:
Design  ....................... Single Mechanical
Material ...................... Silicon-Carbide/Silicon-Carbide/Buna-N
Hardware -300 Series Stainless
CORD ENTRY  ................................... 20 ft. (6m) Cord with plug Custom Molded
Quick Connect, for Sealing and Strain Relief
UPPER BEARING ...............................Single Row, Ball, Oil Lubricated
Load  .......................... Radial
LOWER BEARING
Single Row, Ball, Oil Lubricated
Load ........................... Radial & Thrust
MOTOR:
Design  ....................... NEMA L-Single Phase Torque Curve, Oil-Filled, Squirrel Cage Induction
Insulation  ................ Class F
SINGLE PHASE ................................. Capacitor Start/Capacitor Run.
LEVEL CONTROL:
A Series ...................... Pipe Mounted, Piggy-Back, Mechanical with 240 Plug
ACCESSORIES ................................. Break Away Fitting (BAF), Check Valve, Control Panel
