Image shown may not be actual product
52074

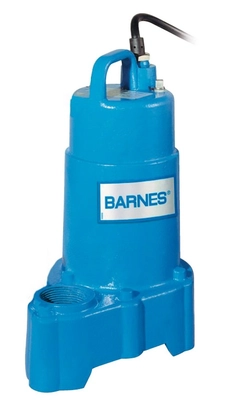

Barnes Submersible Sump, Effluent EP72 Sewage Ejector Pump. 1-1/2" NPT, Female, vertical Discharge with a Silicon-carbide / Silicon-carbide / Buna-N Single Mechanical, type 21 Seal. 3/4 HP, 240 Volts, 1 Ph (Single Phase) Motor. 10 Vane Vortex Cast Iron Impeller Design capable of handling Liquids at 104°F (40°C). Built with a 20 ft. (6m) Cord Entry. A Crane Pumps & Systems Product.
$531.31
- Best Price Guarantee!
- 106PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
52074
Barnes Submersible Sump, Effluent EP72 Sewage Ejector Pump. 1-1/2" NPT, Female, vertical Discharge with a Silicon-carbide / Silicon-carbide / Buna-N Single Mechanical, type 21 Seal. 3/4 HP, 240 Volts, 1 Ph (Single Phase) Motor. 10 Vane Vortex Cast Iron Impeller Design capable of handling Liquids at 104°F (40°C). Built with a 20 ft. (6m) Cord Entry. A Crane Pumps & Systems Product.
| Discharge NPT (Inches) | 1-1/2" NPT, Female, vertical |
| Elastomer | Buna-N |
| HP | 3/4 HP |
| Hz | 60 Hz |
| Impeller Material | Cast Iron |
| Impeller Style | 10 Vane Vortex, with pump out vanes on back side. Balanced, ISO G6.3 |
| Insulation Class | Class B |
| Liquid Temperature | 104°F (40°C) |
| Motor Shaft Material | Stainless Steel |
| Part Number | EP72X 52074 |
| Phase | 1 Ph (Single Phase) |
| Product Notes | Minimum Sump Diameter: 12" |
| Shaft Seal Material | Silicon-carbide / Silicon-carbide / Buna-N |
| Shaft Seal Type | Single Mechanical, type 21 |
| Solids (Inches) | 3/4" |
| Speed (RPM) | 3450 RPM |
| Valve / Seat / O-Ring | Buna-N O-Rings |
| Voltage | 240 Volts |
| Volute Case Material | Thermoplastic |
EP Series Information
| Features & Benefits |
|---|
| Product features for superior performance • Maximum flow rate to 90 GPM (EP72) and 83 GPM (EP52). • Maximum shut off head of 31 ft. • Stainless steel shaft and hardware provide excellent corrosion resistance. • Permanent Split capacitor motor for reliable, high performance, longer motor life, greater starting torque, and lower amp draw. • Interchangeable with other effluent pumps. Design Options • Vertical or tethered floats are easily adjusted for varying conditions. • All switches come with standard 20’ cord. • Manual models available if preferred. Models - EP52X - EP72X Motor - 1/2 hp - 3/4 hp RPM - 3450 Electrical - 240v 1ph Construction - Cast Iron Discharge - 1.5" Solids - .75" |
| General Description |
| Effluent / Sump Pump Series Design Features • Vortex impeller design provides ¾” spherical solids handling capability • Upper and lower ball bearings are oil lubricated for maximum life • Silicon carbide mechanical seal faces provide outstanding grit resistance • Industrial-style motors, contained in a cast iron housing, are oil filled for optimum cooling and long life • Pump provided with protective high temperature overload switch • Unit provided with power cord including molded NEMA 6-15P plug for 230V single phase operation. • Cast Iron vortex impeller • CSA Listed • 12 month limited warranty |
