BP324BR

Image shown may not be actual product

BP324BR

0 reviews

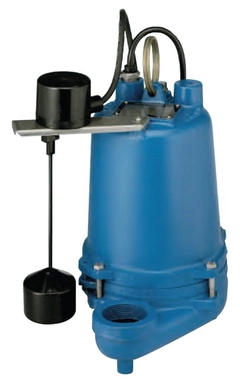

Barnes Pumps BP324BR Submersible Sewage Effluent Pump BP Series, 2” NPT, Female, Vertical Discharge, ⅓ HP, 240 Volt, 60 Hz, Single Phase, 1750 RPM, BUNA Shaft Seal, 3/4" Solids Handling, 096735 Part Number, 15' Cord Length

$4,537.91

Best Price Guarantee!
907PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: BP324BR | Part #: 96735

Overview
Series Info
Reviews
Literature/Manuals

BP324BR

Actual Weight	53
Automatic	No
Connections / Discharge (Inches)	2” NPT, Female, Vertical
Cord Length	15'
HP	0.33
Hz	60
Impeller Material	Polypropylene
Liquid Temperature	104°F (40°C) Continuous
Motor Shaft Material	416 Stainless Steel

Part Number	096735
Phase	1 Ph (Single Phase)
Quick Specs	BP314 and BP324 - Manual & Automatic, 2" Discharge, .75" Solids
Shaft Seal Material	Buna
Solids (Inches)	3/4" Max
Speed (RPM)	1750
Voltage	240

BP Series Information

Features & Benefits
Models - BP314 - BP324 Motor - 1/3 hp - 1/3 hp RPM - 1750 Electrical - 115v 1ph - 230v 1ph Cord Length - 15' - 15' Construction - Cast Iron & Bronze Available Impeller - Thermoplastic & Bronze Available Discharge - 2" Solids - .75" Automatic Operation (manual available) - Mechanical Float / Vertical Float
Mechanical Shaft Seal Information
Single Mechanical, Oil-Filled Reservoir, Secondary Exclusion Seal
Motor Information
Single Phase Motor, Permanent Split Capacitor (PSC), Oil Filled, Includes Overload Protection in Motor, Insulation Class B
Bearings
Upper Bearing - Single Row, Ball, Oil Lubricated Lower Bearing - Single Row, Ball, Oil Lubricated
Impeller Information
2 Vane open, Dynamically Balanced, ISO G6.3
