096729A

Image shown may not be actual product

096729A

0 reviews

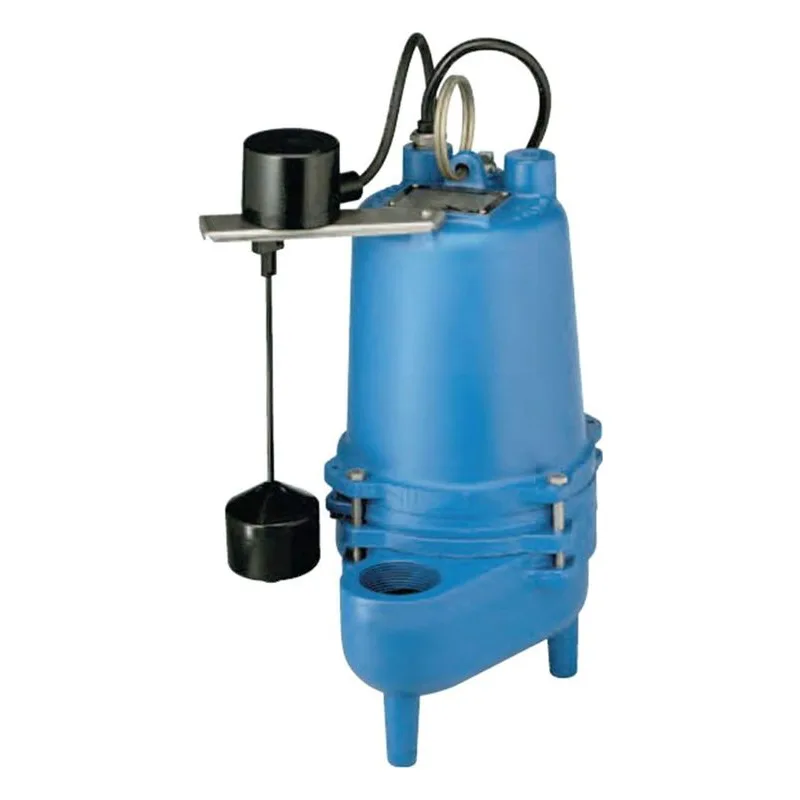

Barnes Effluent Spherical Solids Handling BP314 Pump. 2" NPT, Female, Vertical Discharge with a Carbon / Ceramic / Buna-N Single Mechanical, Oil Filled reservoir Secondary Exclusion Seal Seal. 1/3 HP, 115 Volts, 1 Ph (Single Phase) Motor. 2 Vane Open Polypropylene Impeller Design capable of handling Liquids at 77°F (25°C). Built with a 15 ft. (4.5m) Cord Entry. A Crane Pumps & Systems Product.

$984.90

Best Price Guarantee!
196PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 096729A | Part #: BP314AU 096729A

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

096729A

Discharge NPT (Inches)	2" NPT, Female, Vertical
Elastomer	Buna-N
HP	1/3 HP
Hz	60 Hz
Impeller Material	Polypropylene with Stainless insert
Impeller Style	2 Vane open, dynamically balanced, ISO G6.3
Insulation Class	Class B
Liquid Temperature	77°F (25°C)
Part Number	BP314AU 096729A

Phase	1 Ph (Single Phase)
Product Notes	Wide angle, Polypropylene, Mechanical, N/O, integral to pump. ON and OFF points are adjustable
Shaft Seal Material	Carbon / Ceramic / Buna-N
Shaft Seal Type	Single Mechanical, Oil Filled reservoir Secondary Exclusion Seal
Solids (Inches)	3/4"
Speed (RPM)	1750 RPM
Voltage	115 Volts

BP Series Information

Features & Benefits
Models - BP314 - BP324 Motor - 1/3 hp - 1/3 hp RPM - 1750 Electrical - 115v 1ph - 230v 1ph Cord Length - 15' - 15' Construction - Cast Iron & Bronze Available Impeller - Thermoplastic & Bronze Available Discharge - 2" Solids - .75" Automatic Operation (manual available) - Mechanical Float / Vertical Float
Mechanical Shaft Seal Information
Single Mechanical, Oil-Filled Reservoir, Secondary Exclusion Seal
Motor Information
Single Phase Motor, Permanent Split Capacitor (PSC), Oil Filled, Includes Overload Protection in Motor, Insulation Class B
Bearings
Upper Bearing - Single Row, Ball, Oil Lubricated Lower Bearing - Single Row, Ball, Oil Lubricated
Impeller Information
2 Vane open, Dynamically Balanced, ISO G6.3

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Barnes Pumps Series BP314 & BP324 Manual		View
	Barnes Pumps Series BP314 & BP324 Specifications		View
	Barnes Pumps Series BP HT Specifications		View

Repair Parts for 096729A

Product	qty.	price
	102260	Lead Time TBD	Call for pricing
	093063	Lead Time TBD	$407.62	Select item
	068988	Ships in 2 Days	$88.11	Select item
	017414	Lead Time TBD	$40.05	Select item
	017415	Lead Time TBD	$5.34	Select item
112985	Call for Shipping
	039858	Lead Time TBD	$13.35	Select item
	099260	Lead Time TBD	$171.77	Select item
	051448	Lead Time TBD	$55.18	Select item
	051449	Lead Time TBD	$5.34	Select item
	051451	Lead Time TBD	$5.34	Select item
	099290	Lead Time TBD	$40.94	Select item
	016660	Ships in	$5.34	Select item
	019289	Lead Time TBD	$13.35	Select item
	093066	Lead Time TBD	$538.45	Select item
	11-32-1	Lead Time TBD	$5.34	Select item
	068053	Ships in 2 Days	$13.35	Select item
	096725	Ships in	$112.14	Select item
	099295	Lead Time TBD	$55.18	Select item
	068984	Lead Time TBD	$15.13	Select item
	096724	Lead Time TBD	$335.53	Select item
	1-140-1	Lead Time TBD	$5.34	Select item
	027271	Lead Time TBD	$5.34	Select item
	029034	Ships in	Call for pricing
	015000	Lead Time TBD	$5.34	Select item
	101758	Ships in	$63.75	Select item
	051448	Lead Time TBD	$55.18	Select item
	051449	Lead Time TBD	$5.34	Select item
	090516	Lead Time TBD	$5.34	Select item
	20-12-1	Lead Time TBD	$5.34	Select item
	2-88-1	Lead Time TBD	$5.34	Select item
	100829	Lead Time TBD	Call for pricing
	100547	Lead Time TBD	$72.09	Select item
	021337	Lead Time TBD	Call for pricing
	098679	Lead Time TBD	$5.34	Select item
	022229	Lead Time TBD	Call for pricing
	085201	Lead Time TBD	$299.93	Select item
	085202	Lead Time TBD	$234.07	Select item
	085343	Lead Time TBD	$477.04	Select item
