134719

Image shown may not be actual product

134719

0 reviews

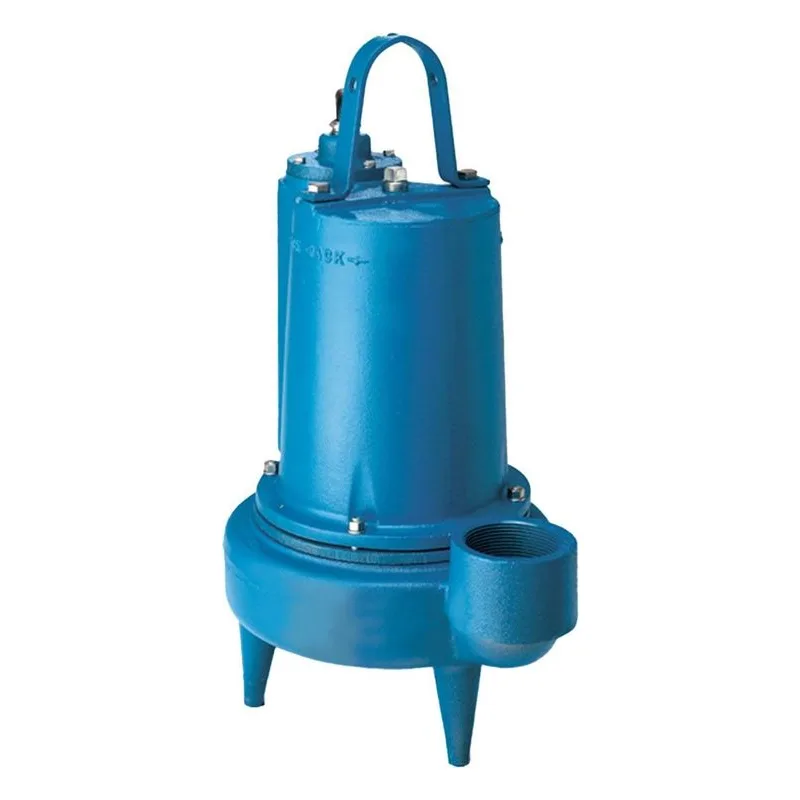

Barnes Sewage Ejector, 3SE-L Vortex Double Seal Pump. 3" Discharge with a Carbon / Ceramic / Buna-N Single Mechanical in Oil filled reservoir Seal. 1.5 HP, 460 Volts, 3 Ph (Three Phase) Motor. 2 Vane Semi-Open Cast Iron Impeller Design capable of handling Liquids at 104°F (40°C). Built with a 30 ft. (9.1m) Cord Entry. A Crane Pumps & Systems Product.

$4,578.78

Best Price Guarantee!
915PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 134719 | Part #: 3SE1542L 134719

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

134719

Discharge NPT (Inches)	3"
Elastomer	Buna-N
HP	1.5 HP
Hz	60 Hz
Impeller Material	Cast Iron ASTM A-48, class 30
Impeller Style	2 Vane, semi-open with pump out vanes on back side. Dynamically balanced, ISO G6.3
Insulation Class	Class B
Liquid Temperature	104°F (40°C)
Motor	NEMA B Three Phase Torque Curve, Oil Filled, Squirrel Cage Induction
Motor Housing Material	Cast Iron ASTM, Class 30
Motor Shaft Material	416 Stainless Steel
Part Number	3SE1542L 134719

Phase	3 Ph (Three Phase)
Rotating Face	Carbon
Seal Plate Material	Cast Iron ASTM, Class 30
Shaft Seal Material	Carbon / Ceramic / Buna-N
Shaft Seal Type	Single Mechanical in Oil filled reservoir
Solids (Inches)	1-1/2"
Speed (RPM)	3450 RPM
Stationary	Ceramic
Valve / Seat / O-Ring	Buna-N Square Ring
Voltage	460 Volts
Volute Case Material	Cast Iron ASTM, Class 30

3SE-L Series Information

Features & Benefits
Motor - 1 1/2hp, 2hp, 3hp RPM - 1750, 3450 Electrical - 230v 1ph & 3ph, 460v 3ph & 575v 3ph Cord Length - 30' Construction - Cast Iron Impeller - Cast Iron Discharge - 3" Solids - 1.5" & 2.5" Automatic Operation (manual available) - No

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Barnes Pump Series 3SE-L, 1.5 - 2 HP 1750 RPM Manual		View
	Barnes Pump Series 3SE-L, 1.5 - 2 HP 3450 RPM Manual		View
	Barnes Pump Series 3SE-L, 3 HP 3450 Manual		View
	Barnes Pump Series 3SE-L, .5 - 2 HP 1750 RPM Specifications		View
	Barnes Pump Series 3SE-L, 1.5 - 2 HP 1750 RPM, 2.5 Solids Specifications		View
	Barnes Pump Series 3SE-L, 1.5 - 2 HP 3450 RPM, 1.5 Solids Specifications		View
	Barnes Pump Series 3SE-L, 3 HP 1750 RPM, 2.5 Solids Specifications		View
	Barnes Pump Series 3SE-L, 3 HP 3450 RPM, 1.5 Solids Specifications		View
	3SE Sewage Ejector Repair Parts 3HP, 1750 RPM 3/2020		View

Repair Parts for 134719

Product		shipping	price
	084532	Lead Time TBD	$548.24	Select item
	061143	Lead Time TBD	$5.34	Select item
	038132	Lead Time TBD	$15.13	Select item
	105196	Lead Time TBD	Call for pricing
	039734	Lead Time TBD	$68.53	Select item
	016660	Ships in	$5.34	Select item
	027269	Lead Time TBD	$15.13	Select item
	084948	Lead Time TBD	$5.34	Select item
	027344	Ships in 1-2 Weeks	$32.93	Select item
	026322	Ships in	$5.34	Select item
	1-140-1	Lead Time TBD	$5.34	Select item
	029034	Ships in	Call for pricing
	019212	Lead Time TBD	$5.34	Select item
	111951	Lead Time TBD	$0.89	Select item
	1-156-1	Ships in	$5.34	Select item
	103503	Lead Time TBD	$40.94	Select item
	105149A	Lead Time TBD	$31.15	Select item
	014270	Lead Time TBD	$5.34	Select item
	067572MB	Lead Time TBD	$1,767.54	Select item
	036391	Lead Time TBD	$104.13	Select item
	039858	Lead Time TBD	$13.35	Select item
	103583	Lead Time TBD	$53.40	Select item
	084470	Lead Time TBD	$1,486.30	Select item
	084470H	Ships in	Call for pricing
	625-02117	Ships in	$5.34	Select item
	084461TF	Lead Time TBD	$2,284.63	Select item
	103742XC	Ships in 1-2 Weeks	$407.62	Select item
	067562	Lead Time TBD	$179.78	Select item
	105111	Lead Time TBD	$5.34	Select item
	105111	Lead Time TBD	$5.34	Select item
	2-31051-224	Ships in 2 Weeks	$5.34	Select item
	105197	Lead Time TBD	$5.34	Select item
	130181	Ships in	$218.94	Select item
	130208	Lead Time TBD	$465.47	Select item
	085443	Lead Time TBD	$3,144.37	Select item
85343			Call for Shipping
