70090201

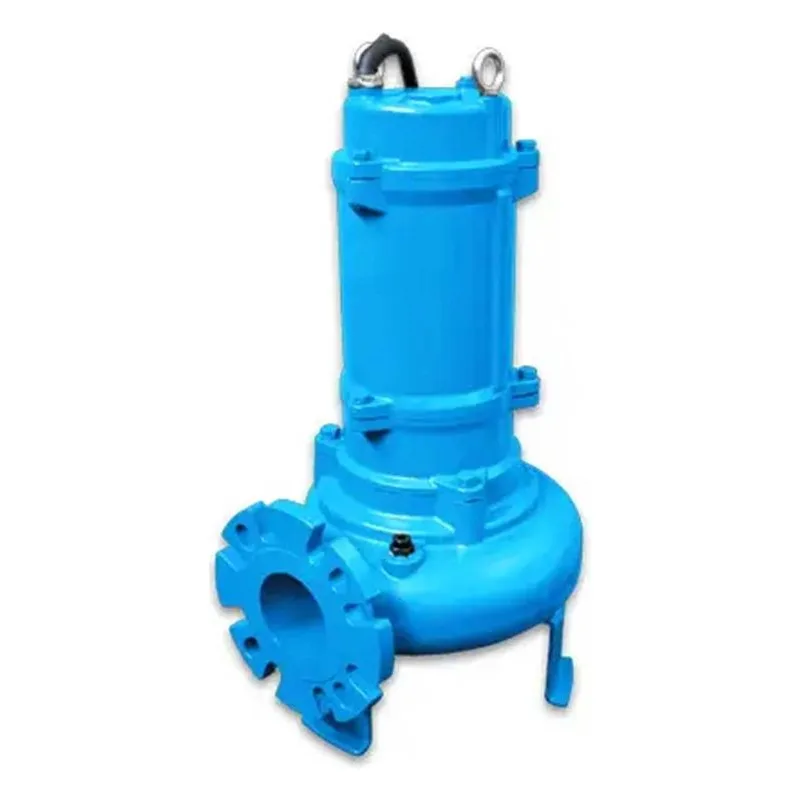

Image shown may not be actual product

70090201

0 reviews

Barmesa Pumps 70090201 Roto Blade CUT Series Submersible Sewage Cutter Pump, Model# CUT303. 3 HP, 230 Volts, 60 Hz, 3ph (Three Phase), 1750 RPM. 4" 125# Horizontal Flange Discharge, Manual Float Switch, 40' Cord. Cast Iron, Tungsten Carbide Tipped w/High Chrome Serrated Cutter Blade Impeller, Silicon Carbide (Outboard), Carbon / Ceramic (Inboard), Double Mechanical, Oil Lubricated Seal.

$2,787.41

Best Price Guarantee!
557PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 70090201 | Model #: CUT303

Overview
Series Info
Reviews
Literature/Manuals

70090201

Accessories	Includes discharge elbow
Connection Type	125# Horizontal Flange
Cord Length	40'
Discharge NPT (Inches)	4"
Float Switch Style	Manual Float Switch
HP	3
Hz	60
Impeller Material	Cast Iron
Impeller Style	Tungsten Carbide Tipped w/High Chrome Serrated Cutter Blade
Model Number	CUT303
Model Series	Roto Blade Cutter

Motor Housing Material	Cast Iron
Motor Shaft Material	AISI 410 series stainless steel
Phase	3ph (Three Phase)
Shaft Seal Material	Silicon Carbide (Outboard), Carbon / Ceramic (Inboard)
Shaft Seal Type	Double Mechanical, Oil Lubricated
Speed (RPM)	1750
Valve / Seat / O-Ring	Buna-N
Voltage	230
Volute Case Material	Cast Iron
