SH4-4TNV88C

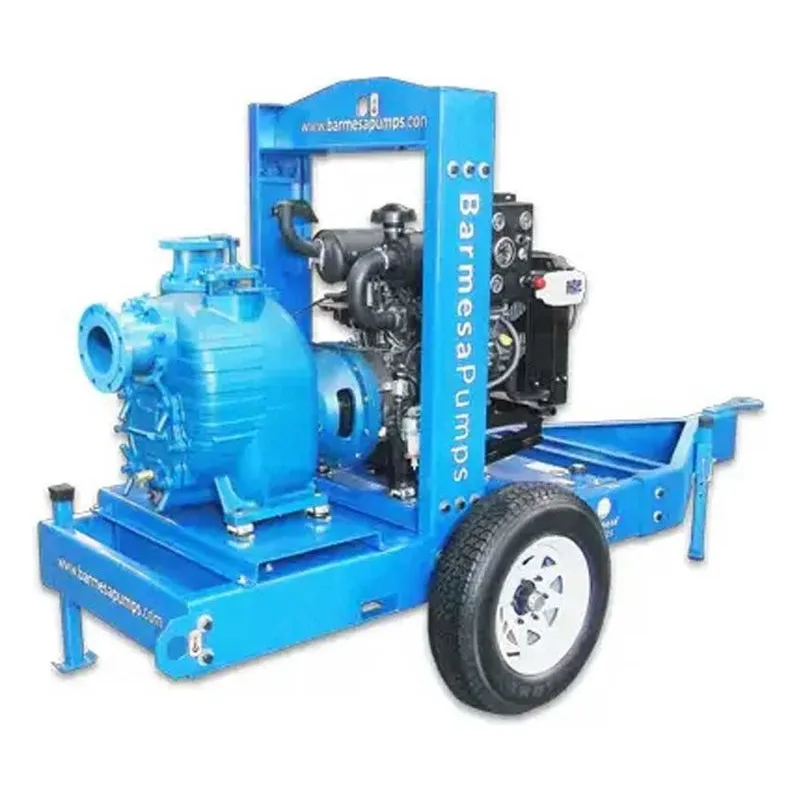

Barmesa Pumps SH4-4TNV88C Self-Priming Solids Handling Engine Driven Pump. Base Mounted, 4" Suction & Discharge, 45.6 HP Yanmar Diesel Engine, Handles up to 3" Spherical Solids.
Item: SH4-4TNV88C
- Overview
- Reviews
- Literature/Manuals
SH4-4TNV88C
Barmesa Pumps SH4-4TNV88C Self-Priming Solids Handling Engine Driven Pump. Base Mounted, 4" Suction & Discharge, 45.6 HP Yanmar Diesel Engine, Handles up to 3" Spherical Solids.
| Bearing Housing | Cast Iron |
| Casing Material | Cast Iron |
| Connection Type | 125# Flange |
| Discharge NPT (Inches) | 4" |
| Engine Type | Yanmar Diesel |
| HP | 45.6 |
| Impeller Material | Ductile Iron |
| Impeller Style | 2 Vane, Open |
| Model Series | Self-Priming Solids Handling |
| Product Notes | Base Mounted |
| Seal Plate Material | Cast Iron |
| Shaft Seal Material | Silicon Carbide / Silicon Carbide / Fluorocarbon |
| Shaft Seal Type | Type 21 Mechanical, Oil Lubricated Double Floating, Self Aligning. |
| Shaft Sleeve Material | 316 Stainless Steel |
| Solids (Inches) | 3" |
| Speed (RPM) | 3000 |
| Suction NPT (Inches) | 4" |
| Type | Engine Driven |
| Valve / Seat / O-Ring | Buna-N |
| Valve Type | Neoprene Flap Valve |
| Type | Title | Link | |
|---|---|---|---|
SH4-RN-4TNV88C Self-Priming Datasheet | View | ||
