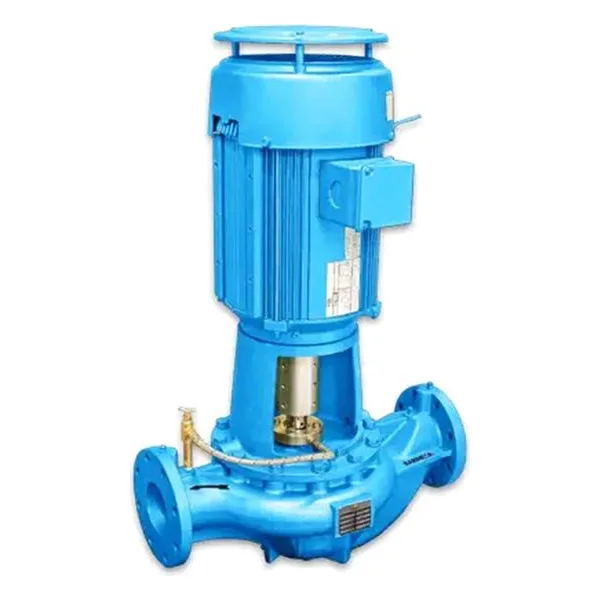

BVL Vertical In-Line Pumps: High-Capacity Performance in a Compact Footprint
In modern industrial and commercial facilities, floor space is a premium resource. The BVL Series Vertical In-Line Pump is engineered to provide high-capacity fluid handling while occupying a fraction of the footprint required by traditional horizontal pumps. By utilizing a sophisticated vertical design with same-size suction and discharge connections, the BVL Series integrates directly into existing pipelines, eliminating the need for complex foundations and the labor-intensive requirements of field alignment.
High-Performance Capability
The BVL Series is built to move massive volumes of water with precision and long-term reliability. Whether your system requires low-pressure circulation or high-head delivery, these specifications ensure a broad operational spectrum for nearly any commercial or industrial duty point:
Flow Capacities: Up to 12,000 GPM
Total Dynamic Head: Up to 560 ft
Horsepower Range: 1 HP up to 250 HP
Discharge Sizes: 1.5" up to 13"
Working Pressure: 175 PSIG
Temperature Rating: Continuous operation up to 194 °F
Choosing a vertical in-line configuration provides several critical advantages for facility managers and mechanical engineers. By moving the motor above the pump end, these pumps typically require up to three times less space than a horizontal split-case pump, allowing for more compact and efficient mechanical room designs. Because the pump is supported directly by the piping, it naturally avoids the shaft misalignment issues that frequently compromise base-mounted equipment due to settling or thermal expansion.
Key Mechanical Benefits:
Factory-Set Alignment: The rigid vertical design ensures the motor and pump remain perfectly coupled, removing the requirement for specialized laser alignment during installation.
Quiet, Balanced Operation: Every unit features a fully enclosed, dynamically balanced impeller. This ensures silent operation and reduced vibration, which is essential for sensitive building environments.
Simplified Maintenance Access: The unique split spacer coupling allows all mechanical seal components to be removed for servicing without disturbing the motor or the rest of the pump assembly.
Versatile Solutions for Critical Markets
The BVL Series is a staple in high-demand environments where consistent water circulation is vital to the infrastructure. It serves as a premier solution for:
HVAC & Climate Control: Precision-optimized for chilled water and condenser loops in large-scale air conditioning systems.
Industrial Process Water: A dependable choice for service water, cooling towers, and circulation systems in manufacturing environments.
Wastewater & Utilities: Efficiently manages water transport, chemical effluent processes, and treatment plant circulation.
Commercial Plumbing: Provides the high-volume water supply and pressure boosting necessary for high-rise residential complexes and institutional utilities.
