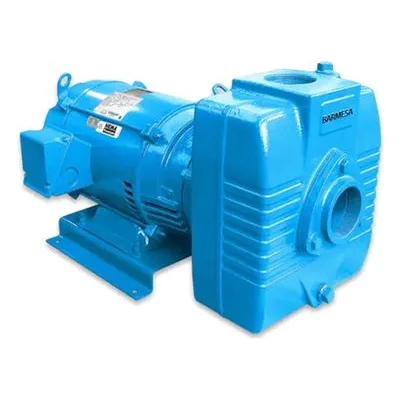

Barmesa BSP Series: Self-Priming Excellence for Versatile Fluid Transfer
Engineered for Efficiency: The BSP Advantage
When rapid deployment and reliable self-priming are essential, the Barmesa BSP series stands as the definitive solution for residential, commercial, and industrial applications. These pumps are specifically designed to pump fluids efficiently without external aid, making them an ideal fit for confined spaces and high-density installation needs. By offering both close-coupled and frame-mounted configurations, Barmesa provides a scalable, high-performance platform that ensures your circulation, boosting, and fluid transfer operations remain seamless and trouble-free.
Unmatched Hydraulic Resilience
Reliability in fluid transfer requires a hydraulic design that can handle more than just clean water. The BSP series is engineered with a rugged internal assembly designed to maintain peak performance in demanding environments.
Dynamic Balancing: Features a 2-vane, open, trash-type impeller crafted from ASTM A-48 Class 30 cast iron that is dynamically balanced for smooth, vibration-free operation.
High-Temperature Capability: Built to handle challenging thermal environments, these units are rated for maximum liquid temperatures up to 160°F (71°C).
Versatile Suction/Discharge: Available in multiple NPT female sizes, including 1.5", 2", and 3", to accommodate various piping requirements and flow capacities.
Industrial Seal and Motor Protection: Precision Engineering
The core of the BSP range is built on long-term component integrity and motor security. Barmesa utilizes premium materials to ensure the pump survives continuous use in harsh conditions.
Self-Lubricating Seal: Equipped with a mechanical, self-lubricated seal system featuring a ceramic stationary part and a carbon ring seal, backed by a stainless steel spring and Buna-N elastomer.

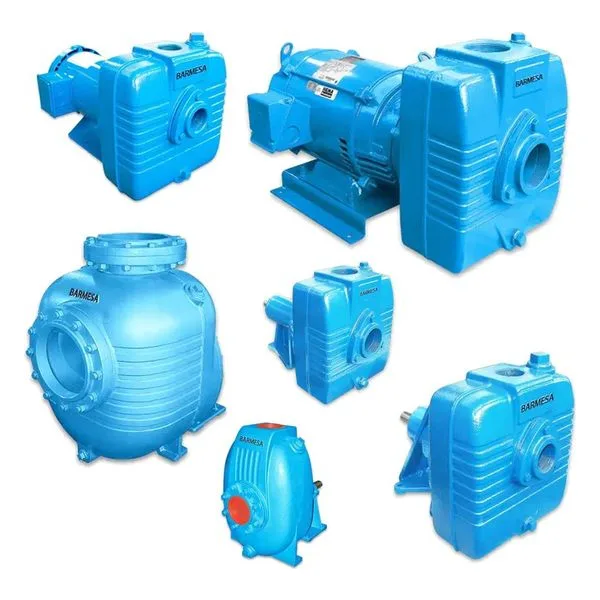

Heavy-Duty Motor Options: Available with Open Drip Proof (ODP) or TEFC motors in both single and three-phase configurations, operating at a high-speed 3450 RPM.
Integrated Check Valve: Features a robust neoprene flap check valve with steel reinforcement to maintain prime and prevent backflow during intermittent operation.
Rugged Construction for Longevity
High-performance equipment should be built to last with minimal intervention. The BSP series incorporates industrial-grade materials from the body to the bearings to maximize total site uptime:
Cast Iron Durability: The pump volute, body, and intermediate (or pedestal) are all cast from ASTM A-48 Class 30 iron, providing a heavy-duty, corrosion-resistant foundation.
Precision Bearing Design: Frame-mounted models utilize single-row, ball, grease-lubricated bearings at both the drive and pump ends for superior shaft support.
Corrosion-Resistant Hardware: Constructed with 416 series stainless steel shafts (or general stainless steel) and steel/stainless steel hardware for lasting reliability in wet environments.
