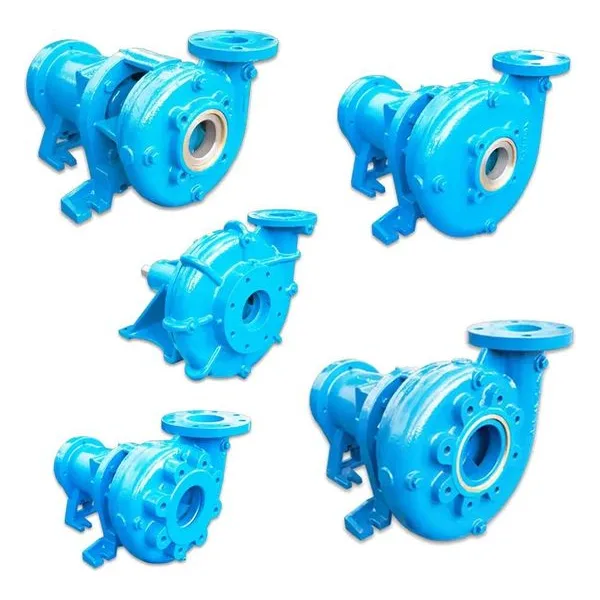

BES Series Frame-Mounted Centrifugal Pumps: Engineering Strength for High-Capacity Water Systems
Reliability in large-scale fluid transfer is built on a foundation of structural integrity and mechanical precision. The BES Series is a premier line of heavy-duty, frame-mounted centrifugal pumps specifically engineered to handle the rigorous workloads of industrial, agricultural, and commercial water systems. Designed to facilitate consistent performance in high-volume HVAC circulation, large-scale irrigation, and municipal water supply, the BES Series combines rugged cast iron construction with precision-balanced internal components to ensure effective operation under the most demanding continuous-load conditions.
High-Performance Capability & Technical Specs
The BES Series is built for extreme versatility, offering several distinct configurations to handle varied flow requirements and complex piping architectures. Whether you are managing a cooling tower loop or a commercial irrigation network, the BES provides the necessary power:
Suction Sizes: 2½" up to 5" (ANSI Flange & NPT options)
Discharge Sizes: 2" to 4" (Configurable in multiple orientations)
Max Liquid Temperature: Up to 225 °F (107 °C) continuous
Solids Handling: Enclosed impellers capable of passing spheres up to 0.75"
Industrial Build: Heavyweight construction ranging from 150 lb to 270 lb to ensure stability and vibration damping.
Engineering Advantages for Professionals
The BES Series is distinguished by its Frame-Mounted Pedestal and Back Pull-Out Design. These features are critical for facilities that prioritize uptime and low maintenance costs.
Maintenance Without Disruption: The back pull-out design allows the rotating assembly to be removed for service without disturbing the suction or discharge piping, significantly reducing labor hours.
Adaptive Piping Integration: Most models feature a discharge that can be placed in four distinct locations (and up to eight on the 4030HCU model), allowing the pump to adapt to your facility’s existing infrastructure.
Precision Dynamics: Every impeller is dynamically balanced to ISO G6.3 standards, which significantly reduces radial loads and vibration, thereby extending the life of the grease-lubricated ball bearings and the mechanical seal.
Primary Market Applications
The BES Series offers the durability and high-volume capacity required for critical infrastructure:
HVAC & Building Services: High-efficiency circulation for chilled water, heating loops, and condensed water systems.
Agricultural Irrigation: Reliable, high-head water transport for crop management and large-scale farming.
Industrial Process Water: General service water, cooling towers, and process fluid transfer in manufacturing plants.
Municipal Infrastructure: Pressure boosting, water distribution, and utility services for commercial developments.
