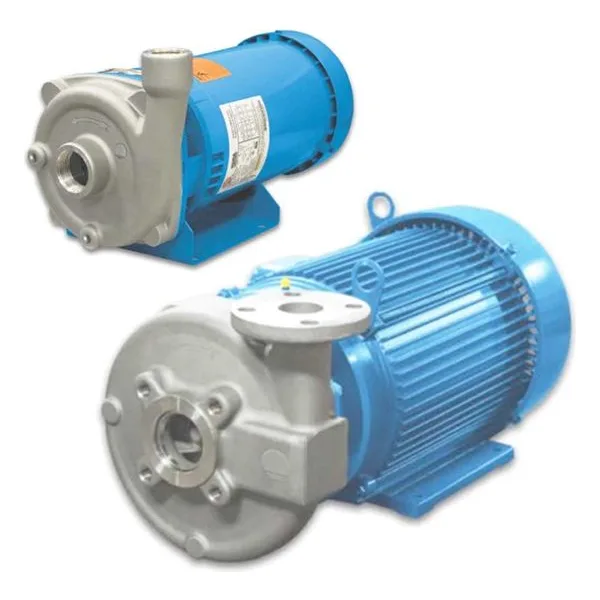

BCS & BCSF Series 316 Stainless Steel Pumps: High-Performance Corrosion Resistance

In industrial fluid transfer, reliability is dictated by material compatibility. The BCS and BCSF Series represent a premier line of centrifugal pumps constructed from AISI 316 stainless steel. These pumps are engineered to provide an elevated level of chemical resistance and structural longevity, making them the definitive choice for the most rigorous chemical processing, pharmaceutical manufacturing, and food and beverage applications. When your facility demands the highest standards of hygiene, chemical neutrality, and hardware durability in the face of aggressive media, the BCS and BCSF Series offer the specialized metallurgy required for relentless performance.

Versatile Engineering & Industrial Performance

The BCS/BCSF series is designed to adapt to a massive variety of industrial duty points, from high-pressure cleaning to low-speed circulation. By offering both 1750 and 3500 RPM configurations, these pumps allow operators to select the perfect balance between high-velocity fluid transfer and lower-speed, high-efficiency operation that minimizes mechanical wear.

• Horsepower Range: 0.5 HP to 25 HP for precise system scaling.

• Max Temperature: Handles extreme heat up to 250 °F (121 °C).

• Max Working Pressure: Up to 175 PSIG (BCS) and 130 PSIG (BCSF).

• Connection Standards: Features NPT horizontal suction (ranging from 1¼" to 3") and NPT vertical discharge (1" to 2") for easy integration into existing pipe networks.

Defining the Difference: BCS vs. BCSF

While both series share a rugged AISI 316 stainless steel foundation, they are hydraulically optimized for different fluid types and system demands:

• The BCS Series (Open Impeller): Designed for maximum versatility, the BCS features an open impeller capable of handling spherical solids up to 3/8" in diameter. This makes it the ideal choice for effluent transfer, wash-water, or any application where the fluid may contain light industrial debris.

• The BCSF Series (Closed Impeller): Built for high-efficiency liquid transfer, the BCSF utilizes a precision-engineered closed impeller. This configuration is optimized for clean liquids, providing superior head and flow characteristics for pressure boosting, chilled water circulation, and high-volume chemical transfer.

Why 316 Stainless Steel is Essential

In chemical and food-grade applications, the metallurgy of the BCS and BCSF provides significantly better resistance to pitting and corrosion than standard alloys. By utilizing AISI 316 for all wetted parts, including the body, seal plate, and shaft sleeve, these pumps prevent the internal degradation that leads to premature failure. Combined with high-grade Viton® elastomers and silicon-carbide seal faces, these pumps are built to withstand aggressive media, industrial solvents, and rigorous washdown chemicals without compromising the purity of the process fluid.

Critical Market Applications

The BCS/BCSF Series is a valuable asset in operations where cleanliness and equipment life are paramount. These pumps are the preferred choice for:

• Pharmaceutical & Chemical: Non-contaminating transfer of high-purity, reactive, and corrosive fluids.

• Food & Beverage Processing: Ideal for ingredient water supply, bottling, and clean-in-place (CIP) washdown cycles.

• Water Supply & Treatment: Handling deionized water, reverse osmosis systems, and municipal water supply.

• General Industrial Services: Providing reliable circulation for chillers, hot water systems, and bulk liquid transfer stations.
